Ball Screws
THK

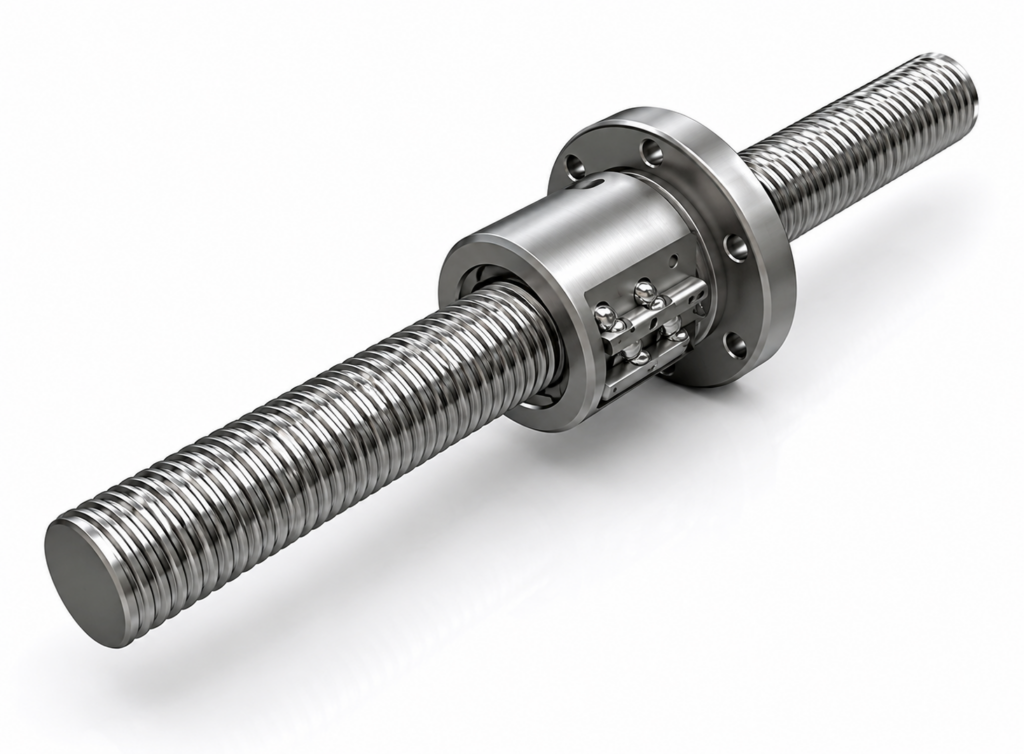

[THK] — BIF2806V-5 Ball Screw Nut Unit (Small, Shaft φ28, Lead 6mm)
Family ID: THK-BIF2806V-5
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Small type, preloaded). Shaft diameter φ28mm, lead 6mm. 1×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 100,000. Flanged nut, basic dynamic load rating Ca=9.6kN, static C0a=24.6kN, rigidity K=520N/μm.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF2806V-5+720 | THK BIF2806V-5, φ28 Lead6, L=720mm | THK | Shaft Diameter: φ28mm | Lead: 6mm | Shaft Total Length L: 720mm | Nut Length L1: 68mm | Ball Circuit: 1×2.5 | Ca: 9.6kN | C0a: 24.6kN | K: 520N/μm | Nut OD D: 55mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF2806V-5+1020 | THK BIF2806V-5, φ28 Lead6, L=1020mm | THK | Shaft Diameter: φ28mm | Lead: 6mm | Shaft Total Length L: 1020mm | Nut Length L1: 68mm | Ball Circuit: 1×2.5 | Ca: 9.6kN | C0a: 24.6kN | K: 520N/μm | Nut OD D: 55mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF2806V-5+1420 | THK BIF2806V-5, φ28 Lead6, L=1420mm | THK | Shaft Diameter: φ28mm | Lead: 6mm | Shaft Total Length L: 1420mm | Nut Length L1: 68mm | Ball Circuit: 1×2.5 | Ca: 9.6kN | C0a: 24.6kN | K: 520N/μm | Nut OD D: 55mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End |
