![[THK] — BIF5010V-10 Ball Screw Nut Unit (Medium, Shaft φ50, Lead 10mm)](https://img.prosourcemro.com/2026/05/001-848-1024x792.png)
Ball Screws
THK

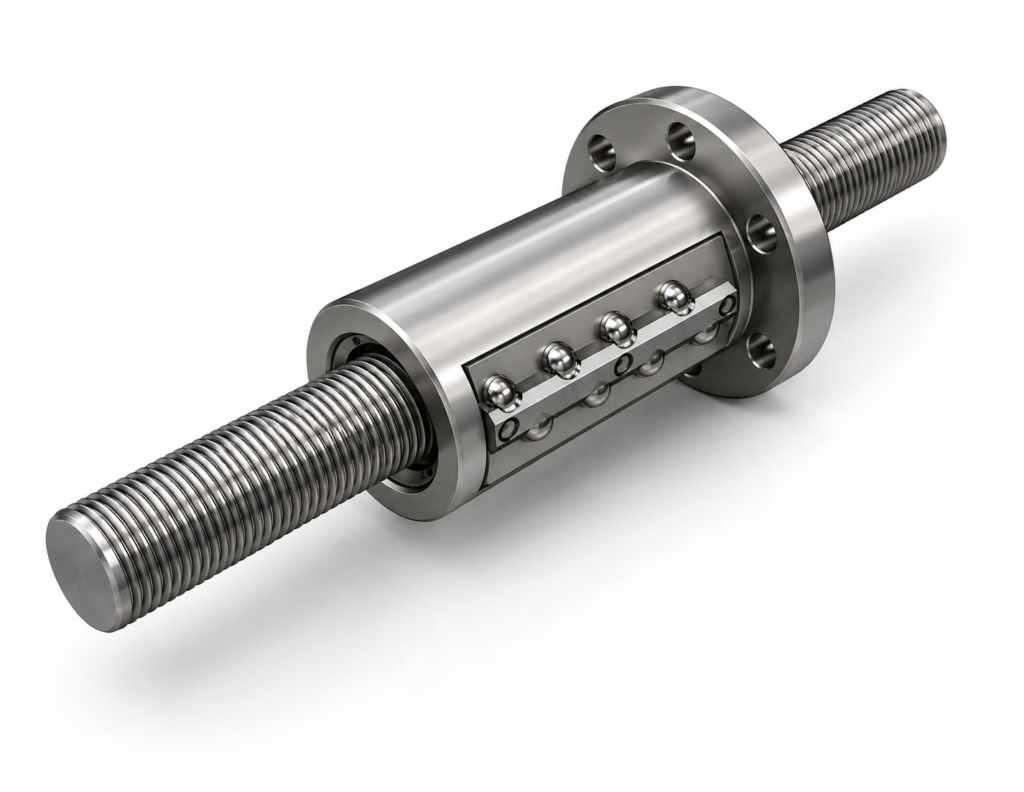

[THK] — BIF5010V-10 Ball Screw Nut Unit (Medium, Shaft φ50, Lead 10mm)
Family ID: THK-BIF5010V-10
THK BIF-V Series Precision Ground Ball Screw Nut Unit (Medium type, preloaded). Shaft diameter φ50mm, lead 10mm. 2×2.5 ball circuit. Unfinished shaft end (BIF-V type). DN value 130,000. Flanged nut, basic dynamic load rating Ca=58.2kN, static C0a=176.3kN, rigidity K=1750N/μm.
4 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BIF5010V-10+1300 | THK BIF5010V-10, φ50 Lead10, L=1300mm | THK | Shaft Diameter: φ50mm | Lead: 10mm | Shaft Total Length L: 1300mm | Nut Length L1: 163mm | Ball Circuit: 2×2.5 | Ca: 58.2kN | C0a: 176.3kN | K: 1750N/μm | Nut OD D: 93mm | Flange D1: 135mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF5010V-10+1800 | THK BIF5010V-10, φ50 Lead10, L=1800mm | THK | Shaft Diameter: φ50mm | Lead: 10mm | Shaft Total Length L: 1800mm | Nut Length L1: 163mm | Ball Circuit: 2×2.5 | Ca: 58.2kN | C0a: 176.3kN | K: 1750N/μm | Nut OD D: 93mm | Flange D1: 135mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF5010V-10+2300 | THK BIF5010V-10, φ50 Lead10, L=2300mm | THK | Shaft Diameter: φ50mm | Lead: 10mm | Shaft Total Length L: 2300mm | Nut Length L1: 163mm | Ball Circuit: 2×2.5 | Ca: 58.2kN | C0a: 176.3kN | K: 1750N/μm | Nut OD D: 93mm | Flange D1: 135mm | Type: Preloaded, Unfinished Shaft End | ||
| BIF5010V-10+2800 | THK BIF5010V-10, φ50 Lead10, L=2800mm | THK | Shaft Diameter: φ50mm | Lead: 10mm | Shaft Total Length L: 2800mm | Nut Length L1: 163mm | Ball Circuit: 2×2.5 | Ca: 58.2kN | C0a: 176.3kN | K: 1750N/μm | Nut OD D: 93mm | Flange D1: 135mm | Type: Preloaded, Unfinished Shaft End |
