[THK] — KR46 LM Guide Actuator, Motor Parallel, Short Block C/D
LM Guide Actuators THK

[THK] — KR46 LM Guide Actuator, Motor Parallel, Short Block C/D

Family ID: THK-KR46-PARALLEL-CD

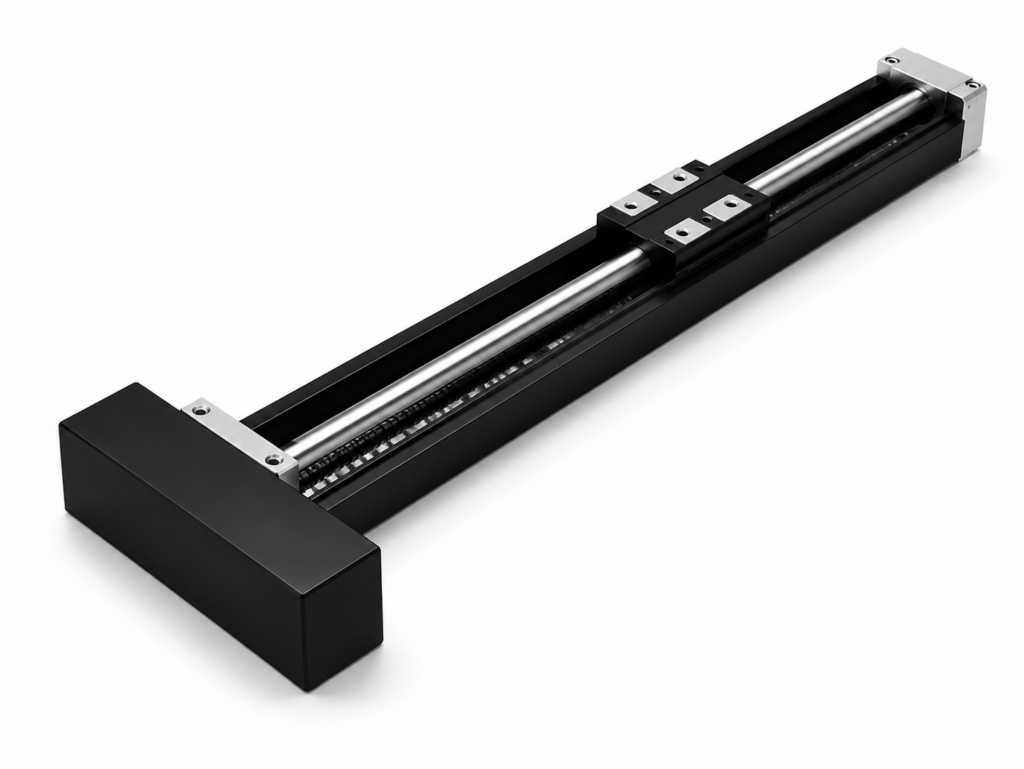

THK KR46 LM Guide Actuator, motor parallel configuration. Available with or without cover. Short block ×1 (C-type) or ×2 (D-type). Integrated LM block and ball screw nut for compact design. Equal load capacity in 4 directions. Stroke range: 220–820 mm (C-type), 150–750 mm (D-type). See model number configuration guide A2-136.

28 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
KR4630C-0220 KR46 No Cover Parallel, Short Block×1, Stroke 220mm THK Model: KR46, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 220 mm | Outer Rail Length: 340 mm | Overall Length L1: 417 mm | C: 200 mm | Mass: 7.2 kg
KR4630C-0320 KR46 No Cover Parallel, Short Block×1, Stroke 320mm THK Model: KR46, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 320 mm | Outer Rail Length: 440 mm | Overall Length L1: 517 mm | C: 300 mm | Mass: 8.6 kg
KR4630C-0420 KR46 No Cover Parallel, Short Block×1, Stroke 420mm THK Model: KR46, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 420 mm | Outer Rail Length: 540 mm | Overall Length L1: 617 mm | C: 400 mm | Mass: 10.0 kg
KR4630C-0520 KR46 No Cover Parallel, Short Block×1, Stroke 520mm THK Model: KR46, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 520 mm | Outer Rail Length: 640 mm | Overall Length L1: 717 mm | C: 500 mm | Mass: 11.4 kg
KR4630C-0620 KR46 No Cover Parallel, Short Block×1, Stroke 620mm THK Model: KR46, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 620 mm | Outer Rail Length: 740 mm | Overall Length L1: 817 mm | C: 600 mm | Mass: 12.8 kg
KR4630C-0720 KR46 No Cover Parallel, Short Block×1, Stroke 720mm THK Model: KR46, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 720 mm | Outer Rail Length: 840 mm | Overall Length L1: 917 mm | C: 700 mm | Mass: 14.2 kg
KR4630C-0820 KR46 No Cover Parallel, Short Block×1, Stroke 820mm THK Model: KR46, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 820 mm | Outer Rail Length: 940 mm | Overall Length L1: 1017 mm | C: 800 mm | Mass: 15.6 kg
KR4630D-0150 KR46 No Cover Parallel, Short Block×2, Stroke 150mm THK Model: KR46, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 150 mm | Outer Rail Length: 340 mm | Overall Length L1: 417 mm | C: 200 mm | Mass: 7.8 kg
KR4630D-0250 KR46 No Cover Parallel, Short Block×2, Stroke 250mm THK Model: KR46, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 250 mm | Outer Rail Length: 440 mm | Overall Length L1: 517 mm | C: 300 mm | Mass: 9.2 kg
KR4630D-0350 KR46 No Cover Parallel, Short Block×2, Stroke 350mm THK Model: KR46, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 350 mm | Outer Rail Length: 540 mm | Overall Length L1: 617 mm | C: 400 mm | Mass: 10.6 kg
KR4630D-0450 KR46 No Cover Parallel, Short Block×2, Stroke 450mm THK Model: KR46, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 450 mm | Outer Rail Length: 640 mm | Overall Length L1: 717 mm | C: 500 mm | Mass: 12.0 kg
KR4630D-0550 KR46 No Cover Parallel, Short Block×2, Stroke 550mm THK Model: KR46, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 550 mm | Outer Rail Length: 740 mm | Overall Length L1: 817 mm | C: 600 mm | Mass: 13.4 kg
KR4630D-0650 KR46 No Cover Parallel, Short Block×2, Stroke 650mm THK Model: KR46, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 650 mm | Outer Rail Length: 840 mm | Overall Length L1: 917 mm | C: 700 mm | Mass: 14.8 kg
KR4630D-0750 KR46 No Cover Parallel, Short Block×2, Stroke 750mm THK Model: KR46, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 750 mm | Outer Rail Length: 940 mm | Overall Length L1: 1017 mm | C: 800 mm | Mass: 16.2 kg
KR4631C-0220 KR46 With Cover Parallel, Short Block×1, Stroke 220mm THK Model: KR46, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 220 mm | Outer Rail Length: 340 mm | Overall Length L1: 417 mm | C: 200 mm | Mass: 8.0 kg
KR4631C-0320 KR46 With Cover Parallel, Short Block×1, Stroke 320mm THK Model: KR46, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 320 mm | Outer Rail Length: 440 mm | Overall Length L1: 517 mm | C: 300 mm | Mass: 9.4 kg
KR4631C-0420 KR46 With Cover Parallel, Short Block×1, Stroke 420mm THK Model: KR46, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 420 mm | Outer Rail Length: 540 mm | Overall Length L1: 617 mm | C: 400 mm | Mass: 10.9 kg
KR4631C-0520 KR46 With Cover Parallel, Short Block×1, Stroke 520mm THK Model: KR46, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 520 mm | Outer Rail Length: 640 mm | Overall Length L1: 717 mm | C: 500 mm | Mass: 12.4 kg
KR4631C-0620 KR46 With Cover Parallel, Short Block×1, Stroke 620mm THK Model: KR46, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 620 mm | Outer Rail Length: 740 mm | Overall Length L1: 817 mm | C: 600 mm | Mass: 13.9 kg
KR4631C-0720 KR46 With Cover Parallel, Short Block×1, Stroke 720mm THK Model: KR46, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 720 mm | Outer Rail Length: 840 mm | Overall Length L1: 917 mm | C: 700 mm | Mass: 15.4 kg
KR4631C-0820 KR46 With Cover Parallel, Short Block×1, Stroke 820mm THK Model: KR46, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 820 mm | Outer Rail Length: 940 mm | Overall Length L1: 1017 mm | C: 800 mm | Mass: 16.8 kg
KR4631D-0150 KR46 With Cover Parallel, Short Block×2, Stroke 150mm THK Model: KR46, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 150 mm | Outer Rail Length: 340 mm | Overall Length L1: 417 mm | C: 200 mm | Mass: 8.8 kg
KR4631D-0250 KR46 With Cover Parallel, Short Block×2, Stroke 250mm THK Model: KR46, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 250 mm | Outer Rail Length: 440 mm | Overall Length L1: 517 mm | C: 300 mm | Mass: 10.2 kg
KR4631D-0350 KR46 With Cover Parallel, Short Block×2, Stroke 350mm THK Model: KR46, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 350 mm | Outer Rail Length: 540 mm | Overall Length L1: 617 mm | C: 400 mm | Mass: 11.7 kg
KR4631D-0450 KR46 With Cover Parallel, Short Block×2, Stroke 450mm THK Model: KR46, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 450 mm | Outer Rail Length: 640 mm | Overall Length L1: 717 mm | C: 500 mm | Mass: 13.2 kg
KR4631D-0550 KR46 With Cover Parallel, Short Block×2, Stroke 550mm THK Model: KR46, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 550 mm | Outer Rail Length: 740 mm | Overall Length L1: 817 mm | C: 600 mm | Mass: 14.7 kg
KR4631D-0650 KR46 With Cover Parallel, Short Block×2, Stroke 650mm THK Model: KR46, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 650 mm | Outer Rail Length: 840 mm | Overall Length L1: 917 mm | C: 700 mm | Mass: 16.2 kg
KR4631D-0750 KR46 With Cover Parallel, Short Block×2, Stroke 750mm THK Model: KR46, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 750 mm | Outer Rail Length: 940 mm | Overall Length L1: 1017 mm | C: 800 mm | Mass: 17.6 kg
