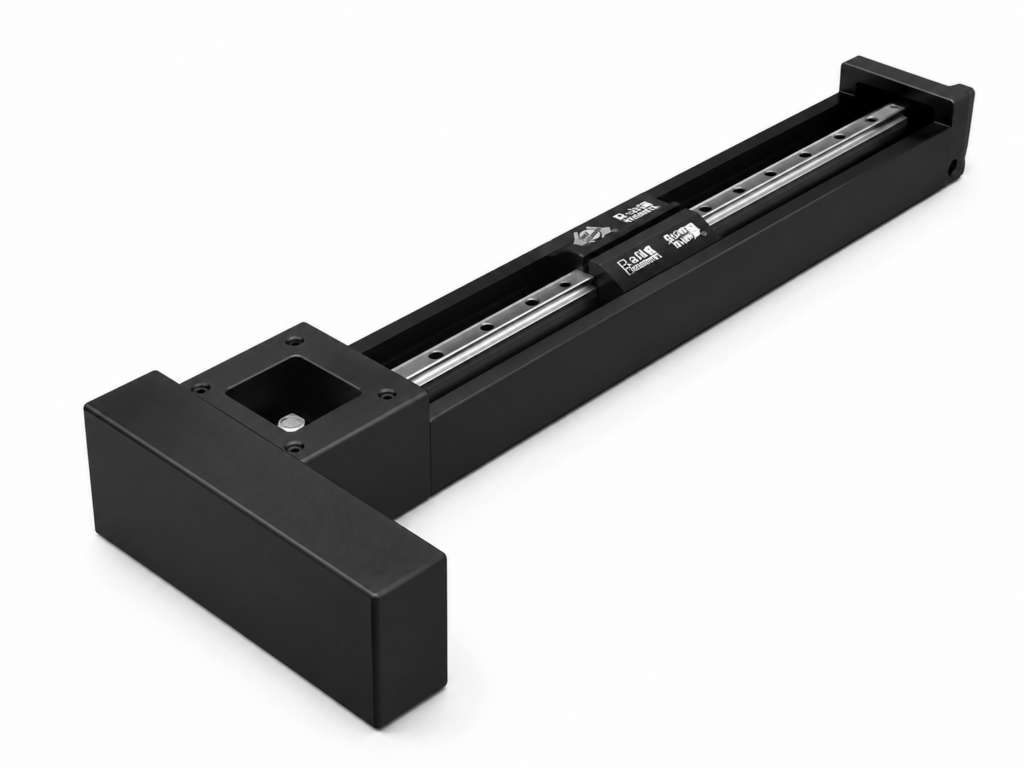

[THK] — SKR20 LM Guide Actuator, Motor Parallel (No Cover, φ20)
LM Guide Actuators THK

[THK] — SKR20 LM Guide Actuator, Motor Parallel (No Cover, φ20)

Family ID: THK-SKR20P-NC

THK SKR20 Series LM Guide Actuator with parallel motor mount (no cover). LM block and ball screw nut integrated for compact design. 4-direction equal load capacity. A-type: 1 long block; B-type: 2 long blocks. Stroke range 30~130mm.

5 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
SKR20NPA-0030 THK SKR20, No Cover, 1 Long Block, Stroke 30mm THK Stroke: 30mm | Mech Stopper Stroke: 40.9mm | Outer Rail Length: 100mm | Total Length L: 149.8mm | G: 20mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 0.72kg | Motor Mount: Parallel | Rail Width: 20mm | Type: LM Guide Actuator (SKR20)
SKR20NPA-0080 THK SKR20, No Cover, 1 Long Block, Stroke 80mm THK Stroke: 80mm | Mech Stopper Stroke: 90.9mm | Outer Rail Length: 150mm | Total Length L: 199.8mm | G: 15mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 0.86kg | Motor Mount: Parallel | Rail Width: 20mm | Type: LM Guide Actuator (SKR20)
SKR20NPA-0130 THK SKR20, No Cover, 1 Long Block, Stroke 130mm THK Stroke: 130mm | Mech Stopper Stroke: 140.9mm | Outer Rail Length: 200mm | Total Length L: 249.8mm | G: 40mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 0.99kg | Motor Mount: Parallel | Rail Width: 20mm | Type: LM Guide Actuator (SKR20)
SKR20NPB-0035 THK SKR20, No Cover, 2 Long Blocks, Stroke 35mm THK Stroke: 35mm | Mech Stopper Stroke: 44.9mm | Outer Rail Length: 150mm | Total Length L: 199.8mm | G: 15mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 0.93kg | Motor Mount: Parallel | Rail Width: 20mm | Type: LM Guide Actuator (SKR20)
SKR20NPB-0085 THK SKR20, No Cover, 2 Long Blocks, Stroke 85mm THK Stroke: 85mm | Mech Stopper Stroke: 94.9mm | Outer Rail Length: 200mm | Total Length L: 249.8mm | G: 40mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 1.06kg | Motor Mount: Parallel | Rail Width: 20mm | Type: LM Guide Actuator (SKR20)
