Linear Bushings
THK

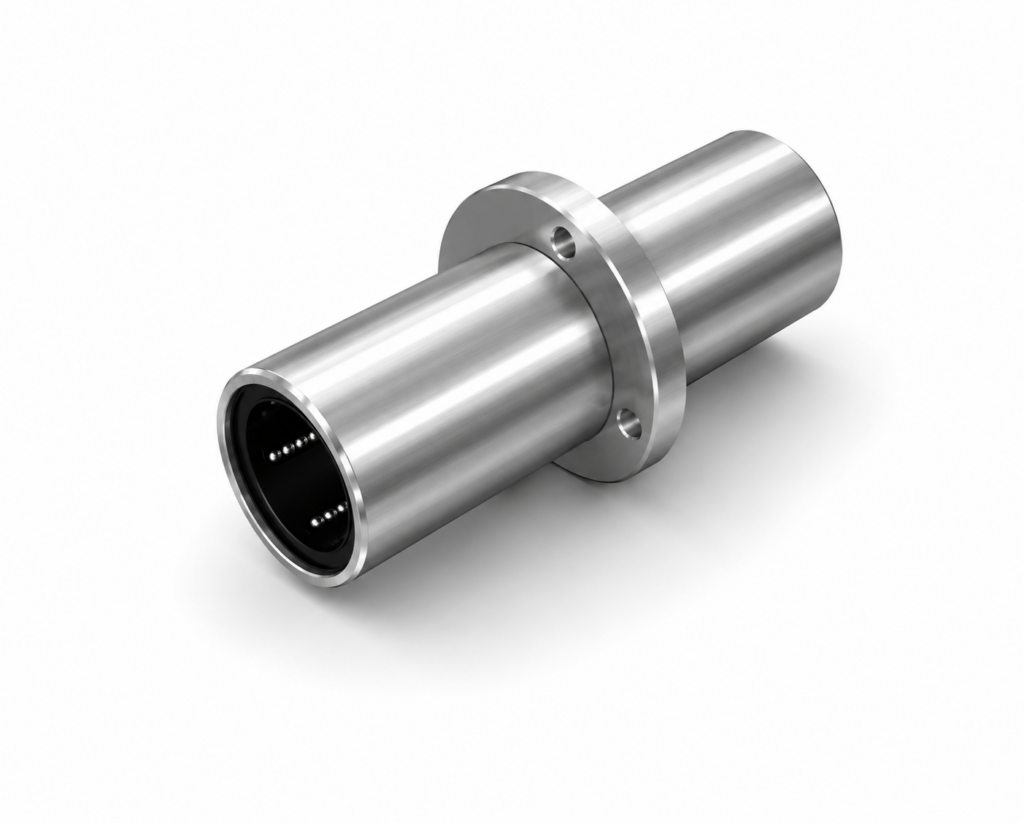

[THK] — LMCF-L Linear Bush Center Flange Long Type (LMCF6L~LMCF25L)
Family ID: THK-LMCF-L
LMCF-L type Linear Bush — center flange, long type. Flange positioned at center of bush body; load is distributed equally to both sides. Ideal for equal stroke in both directions. Shaft diameters: 6~25mm. Synthetic resin retainer (max 80°C). Oil hole option (suffix OH).
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LMCF6L | THK Linear Bush center flange long, shaft φ6mm, OD φ12mm, L=35mm, flange φ28mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Type: Center flange long type (2 retainers) | Feature: Equal load distribution both sides; equal stroke in both directions | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMCF8L | THK Linear Bush center flange long, shaft φ8mm, OD φ15mm, L=45mm, flange φ32mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Type: Center flange long type (2 retainers) | Feature: Equal load distribution both sides; equal stroke in both directions | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMCF10L | THK Linear Bush center flange long, shaft φ10mm, OD φ19mm, L=55mm, flange φ39mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Type: Center flange long type (2 retainers) | Feature: Equal load distribution both sides; equal stroke in both directions | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMCF12L | THK Linear Bush center flange long, shaft φ12mm, OD φ21mm, L=57mm, flange φ42mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Type: Center flange long type (2 retainers) | Feature: Equal load distribution both sides; equal stroke in both directions | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMCF13L | THK Linear Bush center flange long, shaft φ13mm, OD φ23mm, L=61mm, flange φ43mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Type: Center flange long type (2 retainers) | Feature: Equal load distribution both sides; equal stroke in both directions | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMCF16L | THK Linear Bush center flange long, shaft φ16mm, OD φ28mm, L=70mm, flange φ48mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Type: Center flange long type (2 retainers) | Feature: Equal load distribution both sides; equal stroke in both directions | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMCF20L | THK Linear Bush center flange long, shaft φ20mm, OD φ32mm, L=80mm, flange φ54mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Type: Center flange long type (2 retainers) | Feature: Equal load distribution both sides; equal stroke in both directions | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LMCF25L | THK Linear Bush center flange long, shaft φ25mm, OD φ40mm, L=112mm, flange φ62mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Type: Center flange long type (2 retainers) | Feature: Equal load distribution both sides; equal stroke in both directions | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |
