Linear Bushings
THK

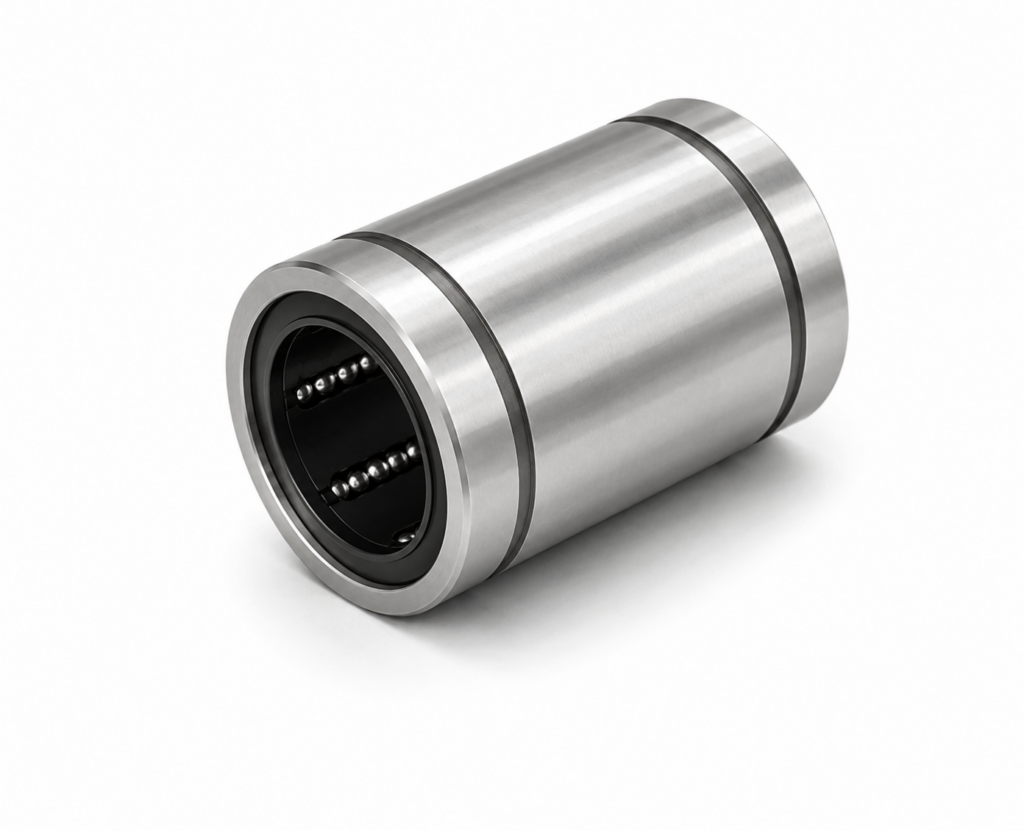

[THK] — LM-AJ Linear Bush Clearance Adjustable Type (LM6-AJ~LM60-AJ)
Family ID: THK-LM-AJ
LM-AJ type Linear Bush — clearance adjustable. Same outer dimensions as standard LM type. Outer shell has a longitudinal slot allowing inner diameter adjustment via housing. Enables easy clearance control between LM shaft and housing. Shaft diameters: 6~60mm. Synthetic resin retainer standard (max 80°C).
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LM6-AJ | THK Linear Bush clearance adjustable, shaft φ6mm, OD φ12mm, L=19mm | THK | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM8S-AJ | THK Linear Bush clearance adjustable, shaft φ8mm, OD φ15mm, L=17mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=17mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM8-AJ | THK Linear Bush clearance adjustable, shaft φ8mm, OD φ15mm, L=24mm | THK | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM10-AJ | THK Linear Bush clearance adjustable, shaft φ10mm, OD φ19mm, L=29mm | THK | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM12-AJ | THK Linear Bush clearance adjustable, shaft φ12mm, OD φ21mm, L=30mm | THK | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM13-AJ | THK Linear Bush clearance adjustable, shaft φ13mm, OD φ23mm, L=32mm | THK | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM16-AJ | THK Linear Bush clearance adjustable, shaft φ16mm, OD φ28mm, L=37mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM20-AJ | THK Linear Bush clearance adjustable, shaft φ20mm, OD φ32mm, L=42mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM25-AJ | THK Linear Bush clearance adjustable, shaft φ25mm, OD φ40mm, L=59mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM30-AJ | THK Linear Bush clearance adjustable, shaft φ30mm, OD φ45mm, L=64mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=64mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM35-AJ | THK Linear Bush clearance adjustable, shaft φ35mm, OD φ52mm, L=70mm | THK | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=70mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM40-AJ | THK Linear Bush clearance adjustable, shaft φ40mm, OD φ60mm, L=80mm | THK | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=80mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM50-AJ | THK Linear Bush clearance adjustable, shaft φ50mm, OD φ80mm, L=100mm | THK | Shaft Dia.: D0=50mm | Outer Dia.: D=80mm | Length: L=100mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order | ||
| LM60-AJ | THK Linear Bush clearance adjustable, shaft φ60mm, OD φ90mm, L=110mm | THK | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=110mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order |
