![[THK] — LME-OP Linear Bush European Metric Open Type (LME16-OP~LME80GA-OP)](https://prosourcemro.com/wp-content/uploads/2026/05/001-983-1024x823.png)
Linear Bushings
THK

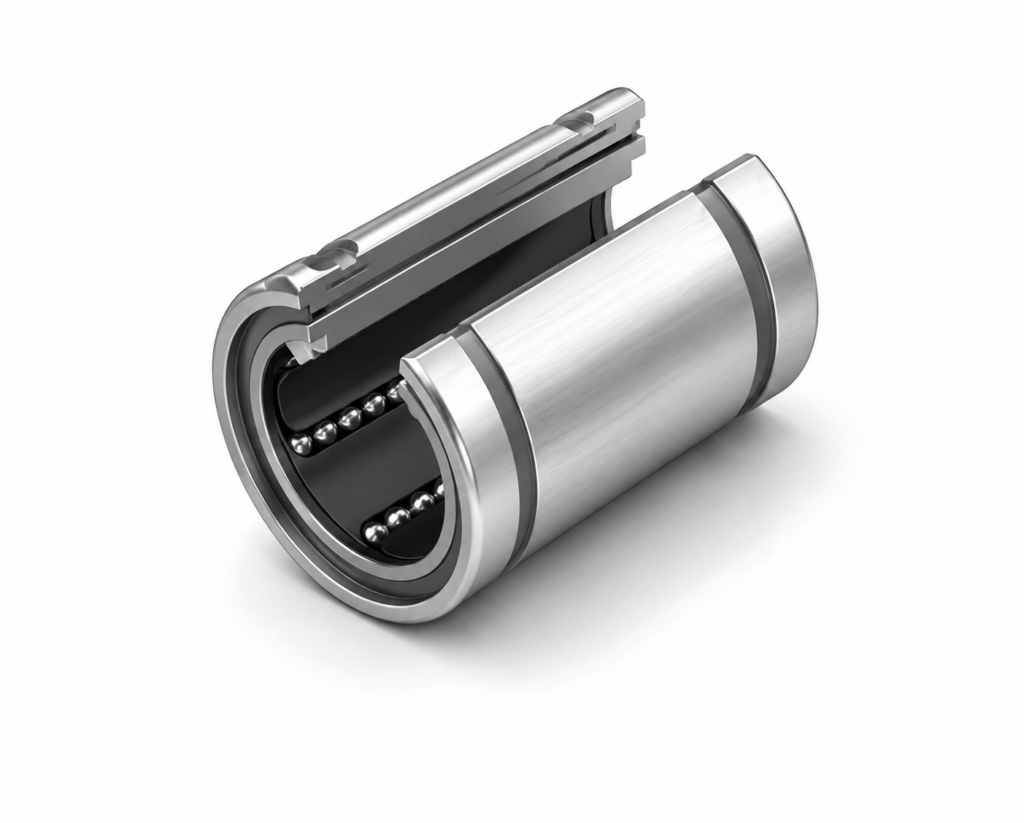

[THK] — LME-OP Linear Bush European Metric Open Type (LME16-OP~LME80GA-OP)
Family ID: THK-LME-OP
LME-OP type Linear Bush — European metric series, open type. One ball circuit cut away from outer shell. Usable at shaft deflection support points. Clearance adjustable. Shaft diameters: 16~80mm. LME16-OP~LME60-OP: synthetic resin retainer (max 80°C). LME80GA-OP: metal retainer type.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| LME16-OP | THK Linear Bush European metric OP, shaft φ16mm, OD φ26mm, L=36mm | THK | Shaft Dia.: D0=16mm | Outer Dia.: D=26mm | Length: L=36mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order | ||
| LME20-OP | THK Linear Bush European metric OP, shaft φ20mm, OD φ32mm, L=45mm | THK | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=45mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order | ||
| LME25-OP | THK Linear Bush European metric OP, shaft φ25mm, OD φ40mm, L=58mm | THK | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=58mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order | ||
| LME30-OP | THK Linear Bush European metric OP, shaft φ30mm, OD φ47mm, L=68mm | THK | Shaft Dia.: D0=30mm | Outer Dia.: D=47mm | Length: L=68mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order | ||
| LME40-OP | THK Linear Bush European metric OP, shaft φ40mm, OD φ62mm, L=80mm | THK | Shaft Dia.: D0=40mm | Outer Dia.: D=62mm | Length: L=80mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order | ||
| LME50-OP | THK Linear Bush European metric OP, shaft φ50mm, OD φ75mm, L=100mm | THK | Shaft Dia.: D0=50mm | Outer Dia.: D=75mm | Length: L=100mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order | ||
| LME60-OP | THK Linear Bush European metric OP, shaft φ60mm, OD φ90mm, L=125mm | THK | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=125mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order | ||
| LME80GA-OP | THK Linear Bush European metric OP, shaft φ80mm, OD φ120mm, L=165mm | THK | Shaft Dia.: D0=80mm | Outer Dia.: D=120mm | Length: L=165mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Metal | Clearance: Adjustable | Oil Hole: Add suffix OH on order |
