Cam Clutches
TSUBAKI

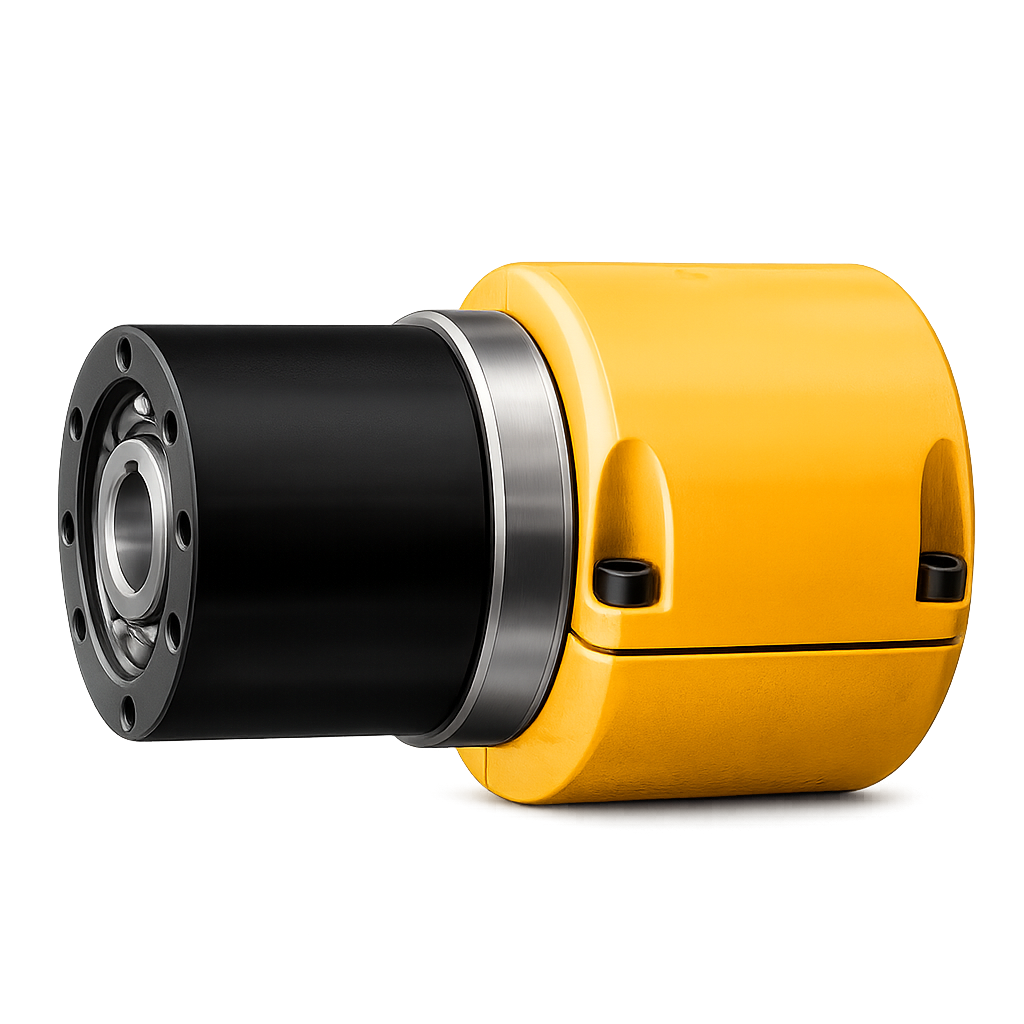

[Tsubaki] — MZ-C Series Cam Clutch with Chain Coupling (Right-Hand Freewheeling)
Family ID: TSB-MZC-RH
Tsubaki Cam Clutch MZ-C / MG-C Series — MZ/MG cam clutch with integrated roller chain coupling. MZ-C torque range: 323~3,040 N·m (33~310 kgf·m). MG-C torque range: 314~33,800 N·m (32~3,450 kgf·m). LH (left-hand) and RH (right-hand) freewheeling directions available.
5 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MZ20C-RH | MZ20C-RH — Bore Ø20 mm | 323 N·m (33 kgf·m) | Tsubaki | Series: MZ-C | Type: Cam Clutch + Roller Chain Coupling Integrated | Torque Range: 323~3,040 N·m (33~310 kgf·m) | Direction: RH (Right-Hand freewheeling) | Application: Compact one-way clutch + coupling unit, conveyor drives, backstop | Model: MZ20C-RH | Bore: Ø20 mm | Rated Torque: 323 N·m (33 kgf·m) | ||
| MZ30C-RH | MZ30C-RH — Bore Ø30 mm | 490 N·m (50 kgf·m) | Tsubaki | Series: MZ-C | Type: Cam Clutch + Roller Chain Coupling Integrated | Torque Range: 323~3,040 N·m (33~310 kgf·m) | Direction: RH (Right-Hand freewheeling) | Application: Compact one-way clutch + coupling unit, conveyor drives, backstop | Model: MZ30C-RH | Bore: Ø30 mm | Rated Torque: 490 N·m (50 kgf·m) | ||
| MZ45C-RH | MZ45C-RH — Bore Ø45 mm | 980 N·m (100 kgf·m) | Tsubaki | Series: MZ-C | Type: Cam Clutch + Roller Chain Coupling Integrated | Torque Range: 323~3,040 N·m (33~310 kgf·m) | Direction: RH (Right-Hand freewheeling) | Application: Compact one-way clutch + coupling unit, conveyor drives, backstop | Model: MZ45C-RH | Bore: Ø45 mm | Rated Torque: 980 N·m (100 kgf·m) | ||
| MZ60C-RH | MZ60C-RH — Bore Ø60 mm | 1,960 N·m (200 kgf·m) | Tsubaki | Series: MZ-C | Type: Cam Clutch + Roller Chain Coupling Integrated | Torque Range: 323~3,040 N·m (33~310 kgf·m) | Direction: RH (Right-Hand freewheeling) | Application: Compact one-way clutch + coupling unit, conveyor drives, backstop | Model: MZ60C-RH | Bore: Ø60 mm | Rated Torque: 1,960 N·m (200 kgf·m) | ||
| MZ70C-RH | MZ70C-RH — Bore Ø70 mm | 3,040 N·m (310 kgf·m) | Tsubaki | Series: MZ-C | Type: Cam Clutch + Roller Chain Coupling Integrated | Torque Range: 323~3,040 N·m (33~310 kgf·m) | Direction: RH (Right-Hand freewheeling) | Application: Compact one-way clutch + coupling unit, conveyor drives, backstop | Model: MZ70C-RH | Bore: Ø70 mm | Rated Torque: 3,040 N·m (310 kgf·m) |
