Cam Clutches
TSUBAKI

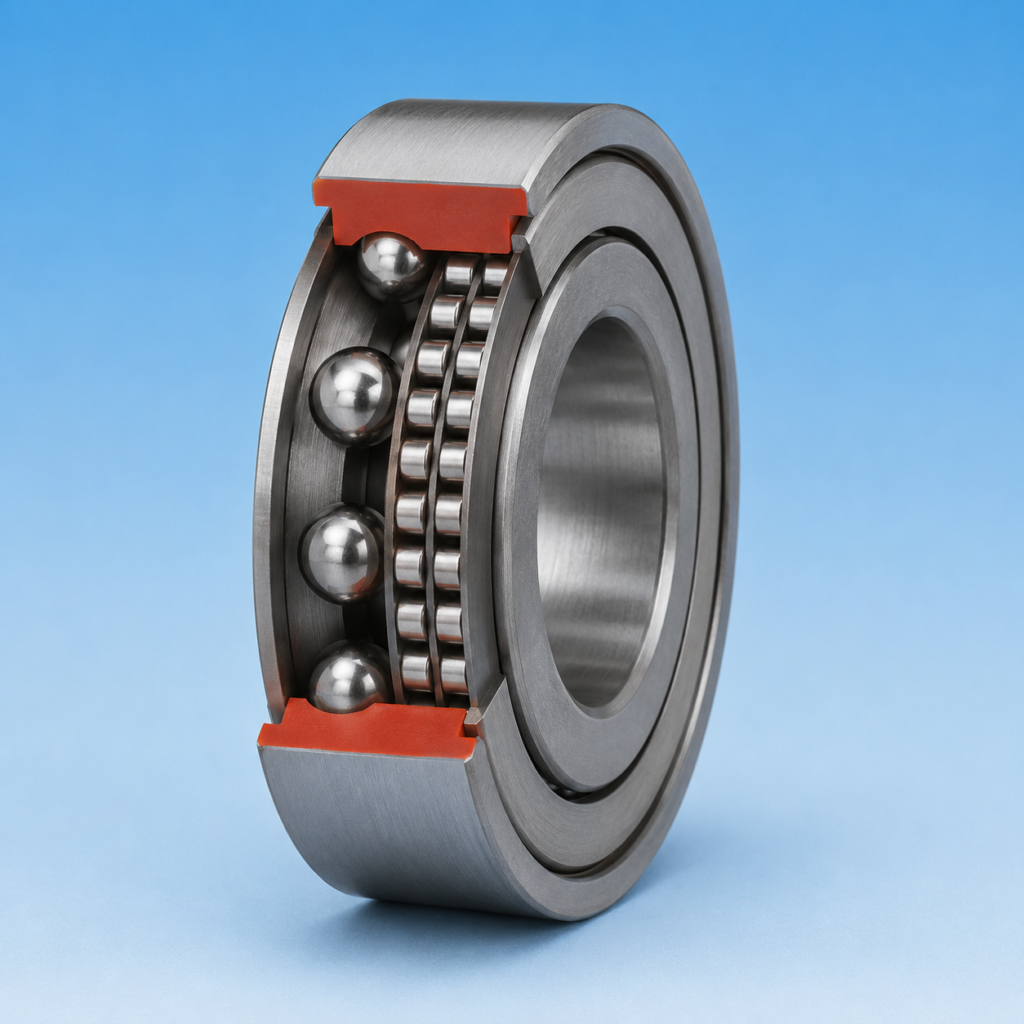

[Tsubaki] — BB Series Cam Clutch + Bearing Integrated Unit (Standard (No Keyway))
Family ID: TSB-BB-STD
Tsubaki Cam Clutch BB Series — integrated bearing (6200 series) and cam clutch unit. Torque range: 29~260 N·m (3.0~26.5 kgf·m). Available in standard (no keyway), 1K (inner keyway), 2K (inner+outer keyway), and 2GD (rubber contact seal) variants. Keys included with keyway models.
7 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BB15 | BB15 — Bore Ø15 mm | Standard (No Keyway, No Seal) | Tsubaki | Series: BB | Type: Integrated Cam Clutch + 6200-Series Bearing | Torque Range: 29~260 N·m (3.0~26.5 kgf·m) | Variant: Standard (No Keyway) | Application: Compact backstop/overrunning with integrated bearing support | Model: BB15 | Bore: Ø15 mm | ||
| BB17 | BB17 — Bore Ø17 mm | Standard (No Keyway, No Seal) | Tsubaki | Series: BB | Type: Integrated Cam Clutch + 6200-Series Bearing | Torque Range: 29~260 N·m (3.0~26.5 kgf·m) | Variant: Standard (No Keyway) | Application: Compact backstop/overrunning with integrated bearing support | Model: BB17 | Bore: Ø17 mm | ||
| BB20 | BB20 — Bore Ø20 mm | Standard (No Keyway, No Seal) | Tsubaki | Series: BB | Type: Integrated Cam Clutch + 6200-Series Bearing | Torque Range: 29~260 N·m (3.0~26.5 kgf·m) | Variant: Standard (No Keyway) | Application: Compact backstop/overrunning with integrated bearing support | Model: BB20 | Bore: Ø20 mm | ||
| BB25 | BB25 — Bore Ø25 mm | Standard (No Keyway, No Seal) | Tsubaki | Series: BB | Type: Integrated Cam Clutch + 6200-Series Bearing | Torque Range: 29~260 N·m (3.0~26.5 kgf·m) | Variant: Standard (No Keyway) | Application: Compact backstop/overrunning with integrated bearing support | Model: BB25 | Bore: Ø25 mm | ||
| BB30 | BB30 — Bore Ø30 mm | Standard (No Keyway, No Seal) | Tsubaki | Series: BB | Type: Integrated Cam Clutch + 6200-Series Bearing | Torque Range: 29~260 N·m (3.0~26.5 kgf·m) | Variant: Standard (No Keyway) | Application: Compact backstop/overrunning with integrated bearing support | Model: BB30 | Bore: Ø30 mm | ||
| BB35 | BB35 — Bore Ø35 mm | Standard (No Keyway, No Seal) | Tsubaki | Series: BB | Type: Integrated Cam Clutch + 6200-Series Bearing | Torque Range: 29~260 N·m (3.0~26.5 kgf·m) | Variant: Standard (No Keyway) | Application: Compact backstop/overrunning with integrated bearing support | Model: BB35 | Bore: Ø35 mm | ||
| BB40 | BB40 — Bore Ø40 mm | Standard (No Keyway, No Seal) | Tsubaki | Series: BB | Type: Integrated Cam Clutch + 6200-Series Bearing | Torque Range: 29~260 N·m (3.0~26.5 kgf·m) | Variant: Standard (No Keyway) | Application: Compact backstop/overrunning with integrated bearing support | Model: BB40 | Bore: Ø40 mm |
