Cam Clutches
TSUBAKI

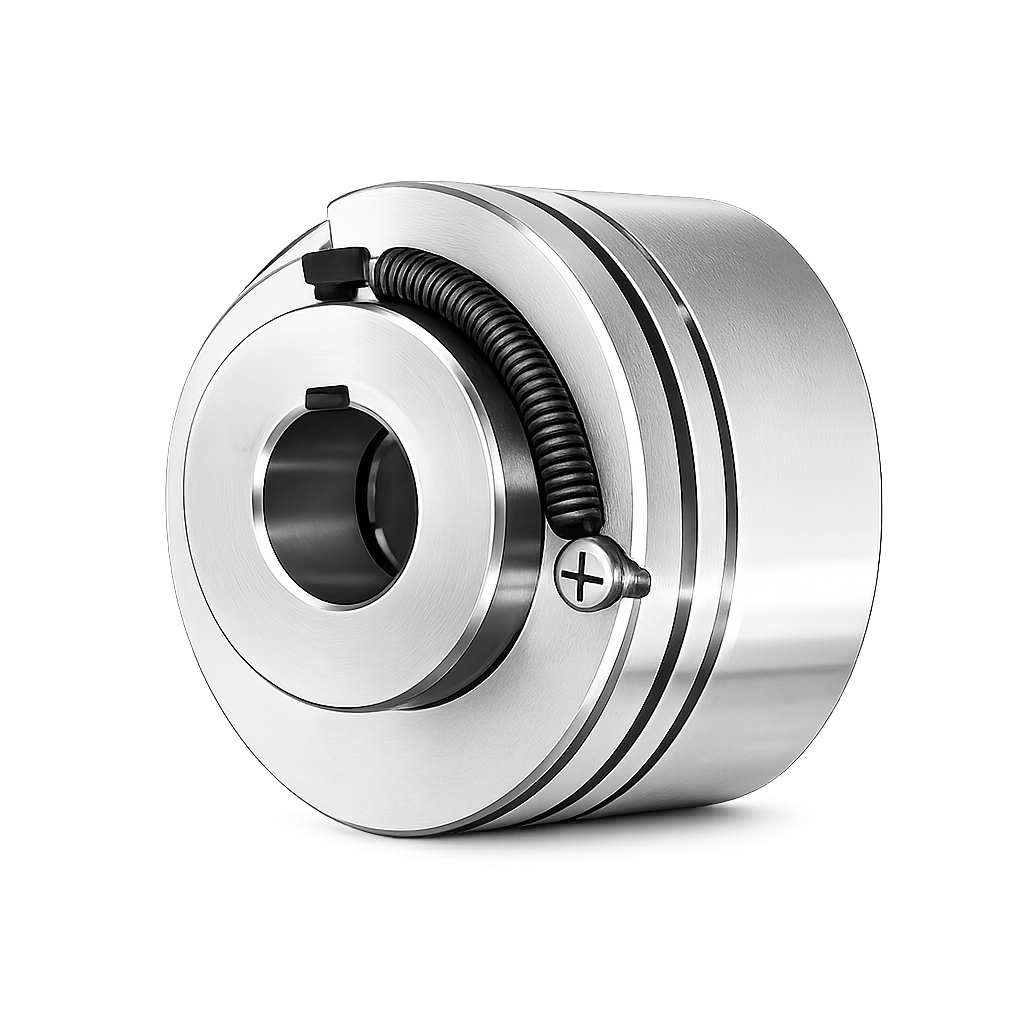

[Tsubaki] — SRD Series One-Revolution Cam Clutch (Direct Type, Power Press)
Family ID: TSB-SRD
Tsubaki SRD Series One-Revolution Clutch (Direct Type) — economical one-revolution clutch suited for loads with flywheel effect such as small power presses. Torque range: 24.5~147 N·m (2.5~15 kgf·m). LH and RH directions available.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| SRD15-LH | SRD15-LH — Bore Ø15 mm | Left-Hand (LH) | 24.5 N·m (2.5 kgf·m) | Tsubaki | Series: SRD | Type: One-Revolution Cam Clutch — Direct Type | Torque Range: 24.5~147 N·m (2.5~15 kgf·m) | Feature: Economical; suited for flywheel-effect loads | Application: Small power presses, stamping machines, 1-revolution indexing | Model: SRD15-LH | Bore: Ø15 mm | Direction: LH | Rated Torque: 24.5 N·m (2.5 kgf·m) | ||
| SRD20-LH | SRD20-LH — Bore Ø20 mm | Left-Hand (LH) | 49 N·m (5.0 kgf·m) | Tsubaki | Series: SRD | Type: One-Revolution Cam Clutch — Direct Type | Torque Range: 24.5~147 N·m (2.5~15 kgf·m) | Feature: Economical; suited for flywheel-effect loads | Application: Small power presses, stamping machines, 1-revolution indexing | Model: SRD20-LH | Bore: Ø20 mm | Direction: LH | Rated Torque: 49 N·m (5.0 kgf·m) | ||
| SRD30-LH | SRD30-LH — Bore Ø30 mm | Left-Hand (LH) | 147 N·m (15 kgf·m) | Tsubaki | Series: SRD | Type: One-Revolution Cam Clutch — Direct Type | Torque Range: 24.5~147 N·m (2.5~15 kgf·m) | Feature: Economical; suited for flywheel-effect loads | Application: Small power presses, stamping machines, 1-revolution indexing | Model: SRD30-LH | Bore: Ø30 mm | Direction: LH | Rated Torque: 147 N·m (15 kgf·m) | ||
| SRD15-RH | SRD15-RH — Bore Ø15 mm | Right-Hand (RH) | 24.5 N·m (2.5 kgf·m) | Tsubaki | Series: SRD | Type: One-Revolution Cam Clutch — Direct Type | Torque Range: 24.5~147 N·m (2.5~15 kgf·m) | Feature: Economical; suited for flywheel-effect loads | Application: Small power presses, stamping machines, 1-revolution indexing | Model: SRD15-RH | Bore: Ø15 mm | Direction: RH | Rated Torque: 24.5 N·m (2.5 kgf·m) | ||
| SRD20-RH | SRD20-RH — Bore Ø20 mm | Right-Hand (RH) | 49 N·m (5.0 kgf·m) | Tsubaki | Series: SRD | Type: One-Revolution Cam Clutch — Direct Type | Torque Range: 24.5~147 N·m (2.5~15 kgf·m) | Feature: Economical; suited for flywheel-effect loads | Application: Small power presses, stamping machines, 1-revolution indexing | Model: SRD20-RH | Bore: Ø20 mm | Direction: RH | Rated Torque: 49 N·m (5.0 kgf·m) | ||
| SRD30-RH | SRD30-RH — Bore Ø30 mm | Right-Hand (RH) | 147 N·m (15 kgf·m) | Tsubaki | Series: SRD | Type: One-Revolution Cam Clutch — Direct Type | Torque Range: 24.5~147 N·m (2.5~15 kgf·m) | Feature: Economical; suited for flywheel-effect loads | Application: Small power presses, stamping machines, 1-revolution indexing | Model: SRD30-RH | Bore: Ø30 mm | Direction: RH | Rated Torque: 147 N·m (15 kgf·m) |
