Chains & Wires
UDT

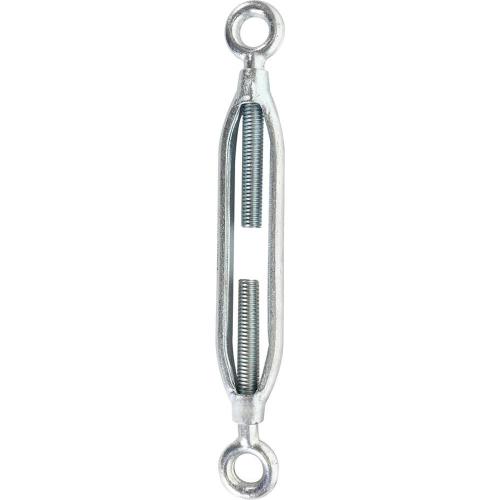

[UDT] — 520-7769 Shackle Turnbuckle Eye
Family ID: 520-7769
The UDT 520-7769 Shackle Turnbuckle Eye is a rigging hardware component designed to provide adjustable tension and secure load connection points, sourced direct from Korea. Commonly used in lifting, lashing, and load-securing applications, this type of fitting allows workers in construction, marine, and industrial settings to fine-tune cable or chain tension with reliable mechanical control. Request a quote today for export-ready supply at competitive pricing, fulfilled by a KITA-registered Korean exporter.
10 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 520-7769 | — | UDT | 13mm (1/2') | Spec: 1/2 | Weight: 0.50 | A: 200 | C: 18 | Shape: Eye Type | F: 20 | B: 164 | Allowable Tensile Load: 2.00 | ||
| 520-7778 | — | UDT | 16mm (5/8') | Spec: 5/8 | Weight: 0.85 | A: 250 | C: 21 | Shape: Eye Type | F: 22 | B: 202 | Allowable Tensile Load: 3.00 | ||
| 520-7787 | — | UDT | 19mm (3/4') | Spec: 3/4 | Weight: 1.45 | A: 300 | C: 25 | Shape: Eye Type | F: 28 | B: 250 | Allowable Tensile Load: 4.00 | ||
| 520-7796 | — | UDT | 22mm (7/8') | Spec: 7/8 | Weight: 2.10 | A: 325 | C: 28 | Shape: Eye Type | F: 33 | B: 269 | Allowable Tensile Load: 5.00 | ||
| 520-7802 | — | UDT | 25mm (1') | Spec: 1 | Weight: 2.90 | A: 350 | C: 32 | Shape: Eye Type | F: 35 | B: 285 | Allowable Tensile Load: 6.00 | ||
| 520-7811 | — | UDT | 13mm (1/2') | Spec: 1/2 | Weight: 0.50 | A: 200 | C: 18 | Shape: Hook Type | E: 16 | B: 164 | Allowable Tensile Load: 0.35 | ||
| 520-7820 | — | UDT | 16mm (5/8') | Spec: 5/8 | Weight: 0.85 | A: 250 | C: 21 | Shape: Hook Type | E: 19 | B: 202 | Allowable Tensile Load: 0.70 | ||
| 520-7839 | — | UDT | 19mm (3/4') | Spec: 3/4 | Weight: 1.45 | A: 300 | C: 25 | Shape: Hook Type | E: 20 | B: 250 | Allowable Tensile Load: 1.00 | ||
| 520-7848 | — | UDT | 22mm (7/8') | Spec: 7/8 | Weight: 2.10 | A: 325 | C: 28 | Shape: Hook Type | E: 21 | B: 269 | Allowable Tensile Load: 1.50 | ||
| 520-7857 | — | UDT | 25mm (1') | Spec: 1 | Weight: 2.90 | A: 350 | C: 32 | Shape: Hook Type | E: 26 | B: 285 | Allowable Tensile Load: 2.00 |
