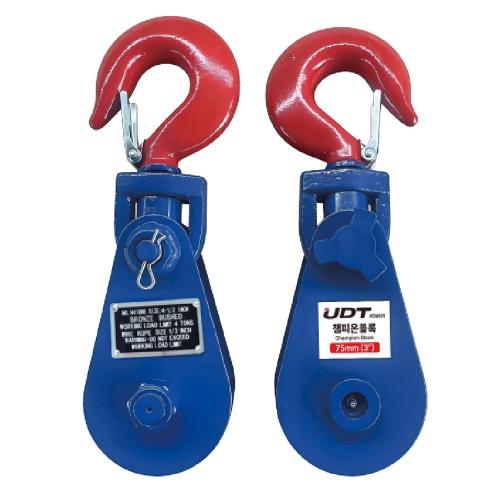

[UDT] — 522-4739 Shackle Champion Block
Family ID: 522-4739
The UDT 522-4739 Shackle Champion Block is a shackle-mounted pulley block designed for load lifting and rigging applications, sourced direct from Korea. Pulley blocks of this type are commonly used in construction, marine, and industrial settings where wire rope or chain needs to be redirected or mechanical advantage applied for moving heavy loads. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 522-4739 | — | UDT | 75mm (3') | Spec: 3 | Weight: 2.25 | L: 253 | Safe Working Load: 2 | A: 79 | B: 68 | Diameter: 9.5 | ||
| 522-4748 | — | UDT | 112.7mm (4 1/2') | Spec: 4 1/2 | Weight: 5.6 | L: 360 | Safe Working Load: 4 | A: 108 | B: 91 | Diameter: 12.7 | ||
| 522-4757 | — | UDT | 150mm (6') | Spec: 6 | Weight: 12.1 | L: 465 | Safe Working Load: 8 | A: 152 | B: 107.5 | Diameter: 19 |
