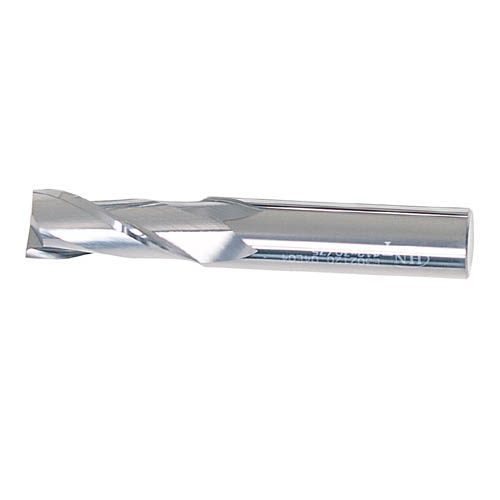

[WIDIN] — E302020 Carbide End Mill
End Mills WIDIN

[WIDIN] — E302020 Carbide End Mill

Family ID: 386-4287

WIDIN E302020 Carbide End Mill is a solid carbide rotary cutting tool designed for precision milling operations, sourced direct from Korea. Carbide end mills like this are commonly used in CNC machining centers to cut slots, profiles, and pockets in metals, alloys, and hard materials where tool rigidity and wear resistance are critical. Request a quote today for export-ready supply, competitive pricing, and reliable fulfillment through a KITA-registered Korean exporter.

20 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
386-4287 E302020 WIDIN 2F*2MM(E302020) | Spec: 2.0 | Cutting Length: 6 | Number of Flutes: 2F | Overall Length: 42 | Shank Diameter: 6
386-4311 E302030 WIDIN 2F*3MM(E302030) | Spec: 3.0 | Cutting Length: 10 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4320 E302035 WIDIN 2F*3.5MM(E302035) | Spec: 3.5 | Cutting Length: 10 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4339 E302040 WIDIN 2F*4MM(E302040) | Spec: 4.0 | Cutting Length: 12 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4357 E302050 WIDIN 2F*5MM(E302050) | Spec: 5.0 | Cutting Length: 15 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4366 E302055 WIDIN 2F*5.5MM(E302055) | Spec: 5.5 | Cutting Length: 15 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4375 E302060 WIDIN 2F*6MM(E302060) | Spec: 6.0 | Cutting Length: 15 | Number of Flutes: 2F | Overall Length: 50 | Shank Diameter: 6
386-4384 E302065 WIDIN 2F*6.5MM(E302065) | Spec: 6.5 | Cutting Length: 18 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4393 E302070 WIDIN 2F*7MM(E302070) | Spec: 7.0 | Cutting Length: 20 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4409 E302075 WIDIN 2F*7.5MM(E302075) | Spec: 7.5 | Cutting Length: 20 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4418 E302080 WIDIN 2F*8MM(E302080) | Spec: 8.0 | Cutting Length: 20 | Number of Flutes: 2F | Overall Length: 60 | Shank Diameter: 8
386-4436 E302090 WIDIN 2F*9MM(E302090) | Spec: 9.0 | Cutting Length: 25 | Number of Flutes: 2F | Overall Length: 70 | Shank Diameter: 10
386-4445 E302095 WIDIN 2F*9.5MM(E302095) | Spec: 9.5 | Cutting Length: 25 | Number of Flutes: 2F | Overall Length: 70 | Shank Diameter: 10
386-4454 E302100 WIDIN 2F*10MM(E302100) | Spec: 10.0 | Cutting Length: 25 | Number of Flutes: 2F | Overall Length: 70 | Shank Diameter: 10
386-4472 E302110 WIDIN 2F*11MM(E302110) | Spec: 11.0 | Cutting Length: 30 | Number of Flutes: 2F | Overall Length: 75 | Shank Diameter: 12
386-4490 E302120 WIDIN 2F*12MM(E302120) | Spec: 12.0 | Cutting Length: 30 | Number of Flutes: 2F | Overall Length: 75 | Shank Diameter: 12
386-4506 E302130 WIDIN 2F*13MM(E302130) | Spec: 13.0 | Cutting Length: 35 | Number of Flutes: 2F | Overall Length: 85 | Shank Diameter: 14
386-4515 E302140 WIDIN 2F*14MM(E302140) | Spec: 14.0 | Cutting Length: 35 | Number of Flutes: 2F | Overall Length: 85 | Shank Diameter: 14
386-4542 E302180 WIDIN 2F*18MM(E302180) | Spec: 18.0 | Cutting Length: 45 | Number of Flutes: 2F | Overall Length: 100 | Shank Diameter: 18
386-4551 E302200 WIDIN 2F*20MM(E302200) | Spec: 20.0 | Cutting Length: 45 | Number of Flutes: 2F | Overall Length: 100 | Shank Diameter: 20
