![[YG-1] — E2464010 End Mill HSS End Mill (Aluminum)](https://img.prosourcemro.com/2026/05/1204213-1.jpg)
End Mills
YG-1

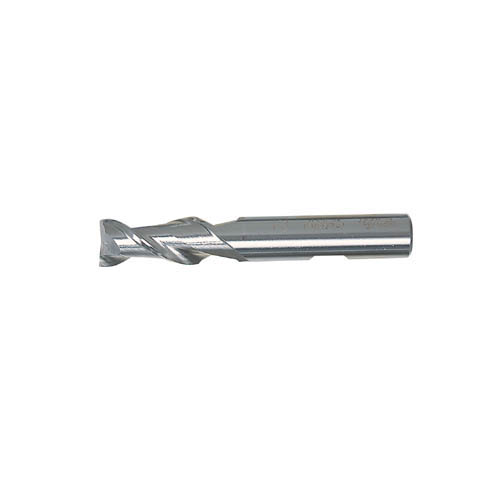

[YG-1] — E2464010 End Mill HSS End Mill (Aluminum)
Family ID: 301-7649
HSS End Mill (Aluminum) from YG-1, sourced from Korea.
22 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 301-7649 | E2464010 | YG-1 | 2F-1*6*3*49MM(E2464010) | Spec: 1.0 | Flute Length: 3 | Overall Length: 49 | Shank d: 6 | ||
| 301-7658 | E2464015K | YG-1 | 2F-1.5*6*5*49MM(E2464015K) | Spec: 1.5 | Flute Length: 5 | Overall Length: 49 | Shank Diameter: 6 | ||
| 301-7667 | E2464020K | YG-1 | 2F-2*6*7*51MM(E2464020K) | Spec: 2.0 | Flute Length: 7 | Overall Length: 51 | Shank Diameter: 6 | ||
| 301-7676 | E2464025K | YG-1 | 2F-2.5*6*8*52MM(E2464025K) | Spec: 2.5 | Flute Length: 8 | Overall Length: 52 | Shank d: 6 | ||
| 301-7685 | E2464030K | YG-1 | 2F-3*6*8*52MM(E2464030K) | Spec: 3.0 | Flute Length: 8 | Overall Length: 52 | Shank Diameter: 6 | ||
| 301-7694 | E2464035K | YG-1 | 2F-3.5*6*10*54MM(E2464035K) | Spec: 3.5 | Flute Length: 10 | Overall Length: 54 | Shank Diameter: 6 | ||
| 301-7700 | E2464040K | YG-1 | 2F-4*6*11*55MM(E2464040K) | Spec: 4.0 | Flute Length: 11 | Overall Length: 55 | Shank Diameter: 6 | ||
| 301-7719 | E2464045K | YG-1 | 2F-4.5*6*11*55MM(E2464045K) | Spec: 4.5 | Flute Length: 11 | Overall Length: 55 | Shank Diameter: 6 | ||
| 301-7728 | E2464050K | YG-1 | 2F-5*6*13*57MM(E2464050K) | Spec: 5.0 | Flute Length: 13 | Overall Length: 57 | Shank Diameter: 6 | ||
| 301-7737 | E2464055K | YG-1 | 2F-5.5*6*13*57MM(E2464055K) | Spec: 5.5 | Flute Length: 13 | Overall Length: 57 | Shank d: 6 | ||
| 301-7746 | E2464060K | YG-1 | 2F-6*6*13*57MM(E2464060K) | Spec: 6.0 | Flute Length: 13 | Overall Length: 57 | Shank d: 6 | ||
| 301-7755 | E2464065K | YG-1 | 2F-6.5*10*16*66MM(E2464065K) | Spec: 6.5 | Flute Length: 16 | Overall Length: 66 | Shank d: 10 | ||
| 301-7764 | E2464070K | YG-1 | 2F-7*10*16*66MM(E2464070K) | Spec: 7.0 | Flute Length: 16 | Overall Length: 66 | Shank Diameter: 10 | ||
| 301-7773 | E2464075K | YG-1 | 2F-7.5*10*16*66MM(E2464075K) | Spec: 7.5 | Flute Length: 16 | Overall Length: 66 | Shank Diameter: 10 | ||
| 301-7782 | E2464080K | YG-1 | 2F-8*10*19*69MM(E2464080K) | Spec: 8.0 | Flute Length: 19 | Overall Length: 69 | Shank d: 10 | ||
| 301-7807 | E2464090K | YG-1 | 2F-9*10*19*69MM(E2464090K) | Spec: 9.0 | Flute Length: 19 | Overall Length: 69 | Shank d: 10 | ||
| 301-7825 | E2464100K | YG-1 | 2F-10*10*22*72MM(E2464100K) | Spec: 10.0 | Flute Length: 22 | Overall Length: 72 | Shank Diameter: 10 | ||
| 301-7834 | E2464110K | YG-1 | 2F-11*12*22*79MM(E2464110K) | Spec: 11.0 | Flute Length: 22 | Overall Length: 79 | Shank Diameter: 12 | ||
| 301-7843 | E2464120K | YG-1 | 2F-12*12*26*83MM(E2464120K) | Spec: 12.0 | Flute Length: 26 | Overall Length: 83 | Shank Diameter: 12 | ||
| 301-7852 | E2464130K | YG-1 | 2F-13*12*26*83MM(E2464130K) | Spec: 13.0 | Flute Length: 26 | Overall Length: 83 | Shank Diameter: 12 | ||
| 301-7861 | E2464140K | YG-1 | 2F-14*12*26*83MM(E2464140K) | Spec: 14.0 | Flute Length: 26 | Overall Length: 83 | Shank Diameter: 12 | ||
| 301-7870 | E2464150K | YG-1 | 2F-15*12*26*83MM(E2464150K) | Spec: 15.0 | Flute Length: 26 | Overall Length: 83 | Shank Diameter: 12 |
