![[YG-1] — SEM81804010 Carbide End Mill Carbide Radius End Mill (X-POWER S)](https://img.prosourcemro.com/2026/05/1283465-1-1.jpg)
End Mills
YG-1

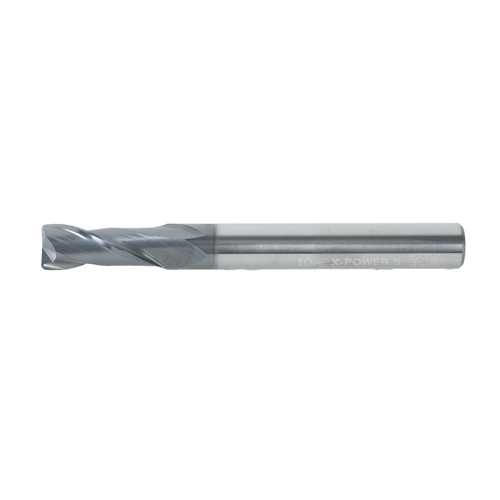

[YG-1] — SEM81804010 Carbide End Mill Carbide Radius End Mill (X-POWER S)
Family ID: 304-5518
Carbide Radius End Mill (X-POWER S) from YG-1, sourced from Korea.
37 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 304-5518 | SEM81804010 | YG-1 | 2F-4(R1)*6*10*50MM(SEM81804010) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner R: 1.0 | ||
| 304-7668 | SEM81802002 | YG-1 | 2F-2(R0.2)*6*6*50MM(SEM81802002) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 304-9116 | SEM81812005 | YG-1 | 2F-12(R0.5)*12*30*100MM(SEM81812005) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank d: 12 | Corner R: 0.5 | ||
| 304-9125 | SEM81812010 | YG-1 | 2F-12(R1)*12*30*100MM(SEM81812010) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank d: 12 | Corner R: 1.0 | ||
| 304-9134 | SEM81812020 | YG-1 | 2F-12(R2)*12*30*100MM(SEM81812020) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank Diameter: 12 | Corner Radius: 2.0 | ||
| 305-6480 | SEM81810010 | YG-1 | 2F-10(R1)*10*25*90MM(SEM81810010) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank d: 10 | Corner R: 1.0 | ||
| 305-7009 | SEM81805010 | YG-1 | 2F-5(R1)*6*13*50MM(SEM81805010) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 1.0 | ||
| 305-7018 | SEM81806003 | YG-1 | 2F-6(R0.3)*6*15*60MM(SEM81806003) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 0.3 | ||
| 305-7027 | SEM81806005 | YG-1 | 2F-6(R0.5)*6*15*60MM(SEM81806005) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 0.5 | ||
| 305-7036 | SEM81806010 | YG-1 | 2F-6(R1)*6*15*60MM(SEM81806010) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner Radius: 1.0 | ||
| 305-7045 | SEM81810005 | YG-1 | 2F-10(R0.5)*10*25*90MM(SEM81810005) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank Diameter: 10 | Corner Radius: 0.5 | ||
| 305-7911 | SEM81803005 | YG-1 | 2F-3(R0.5)*6*8*50MM(SEM81803005) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank D: 6 | Corner R: 0.5 | ||
| 305-7948 | SEM81805005 | YG-1 | 2F-5(R0.5)*6*13*50MM(SEM81805005) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.5 | ||
| 305-8026 | SEM81808010 | YG-1 | 2F-8(R1)*8*20*70MM(SEM81808010) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 1.0 | ||
| 305-9423 | SEM81801501 | YG-1 | 2F-1.5(R0.1)*6*4*50MM(SEM81801501) | Spec: 1.5 | Flute Length: 4 | Overall Length: 50 | Shank d: 6 | Corner R: 0.1 | ||
| 305-9821 | SEM81808005 | YG-1 | 2F-8(R0.5)*8*20*70MM(SEM81808005) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 0.5 | ||
| 306-0304 | SEM81802005 | YG-1 | 2F-2(R0.5)*6*6*50MM(SEM81802005) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank d: 6 | Corner R: 0.5 | ||
| 306-3967 | SEM81810020 | YG-1 | 2F-10(R2)*25*90MM(SEM81810020) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank D: 10 | Corner R: 2.0 | ||
| 306-4072 | SEM81801002 | YG-1 | 2F-1(R0.2)*6*2.5*50MM(SEM81801002) | Spec: 1.0 | Flute Length: 2.5 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 306-6681 | SEM81806002 | YG-1 | 2F-6(R0.2)*6*15*60MM(SEM81806002) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6 | Corner R: 0.2 | ||
| 306-9378 | SEM81802001 | YG-1 | 2F-2(R0.1)*6*6*50MM(SEM81802001) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1 | ||
| 307-1443 | SEM81804005 | YG-1 | 2F-4(R0.5)*6*10*50MM(SEM81804005) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.5 | ||
| 307-4121 | SEM81801001 | YG-1 | 2F-1(R0.1)*6*2.5*50MM(SEM81801001) | Spec: 1.0 | Flute Length: 2.5 | Overall Length: 50 | Shank Diameter: 6 | Corner R: 0.1 | ||
| 307-4477 | SEM81808003 | YG-1 | 2F-8(R0.3)*8*20*70MM(SEM81808003) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8 | Corner Radius: 0.3 | ||
| 307-5014 | SEM81803002 | YG-1 | 2F-3(R0.2)*8*50MM(SEM81803002) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 307-5023 | SEM81804002 | YG-1 | 2F-4(R0.2)*6*10*50MM(SEM81804002) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 307-5032 | SEM81804003 | YG-1 | 2F-4(R0.3)*6*10*50MM(SEM81804003) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3 | ||
| 307-5041 | SEM81810003 | YG-1 | 2F-10(R0.3)*10*25*90MM(SEM81810003) | Spec: 10.0 | Flute Length: 25 | Overall Length: 90 | Shank Diameter: 10 | Corner Radius: 0.3 | ||
| 307-5050 | SEM81812003 | YG-1 | 2F-12(R0.3)*12*30*100MM(SEM81812003) | Spec: 12.0 | Flute Length: 30 | Overall Length: 100 | Shank Diameter: 12 | Corner Radius: 0.3 | ||
| 307-5157 | SEM81802003 | YG-1 | 2F-2(R0.3)*6*6*50MM(SEM81802003) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3 | ||
| 307-5315 | SEM81803003 | YG-1 | 2F-3(R0.3)*8*50MM(SEM81803003) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank d: 6 | Corner R: 0.3 | ||
| 308-0654 | SEM81801502 | YG-1 | 2F-1.5(R0.2)*6*4*50MM(SEM81801502) | Spec: 1.5 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 308-5224 | SEM81805002 | YG-1 | 2F-5(R0.2)*6*13*50MM(SEM81805002) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.2 | ||
| 322-2320 | SEM81803001 | YG-1 | 2F-3(R0.1)*6*8*50MM(SEM81803001) | Spec: 3.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1 | ||
| 322-2339 | SEM81804001 | YG-1 | 2F-4(R0.1)*6*10*50MM(SEM81804001) | Spec: 4.0 | Flute Length: 10 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.1 | ||
| 322-2348 | SEM81805003 | YG-1 | 2F-5(R0.3)*6*13*50MM(SEM81805003) | Spec: 5.0 | Flute Length: 13 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3 | ||
| 322-7398 | SEM81801503 | YG-1 | 2F-1.5(R0.3)*6*4*50MM(SEM81801503) | Spec: 1.5 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6 | Corner Radius: 0.3 |
