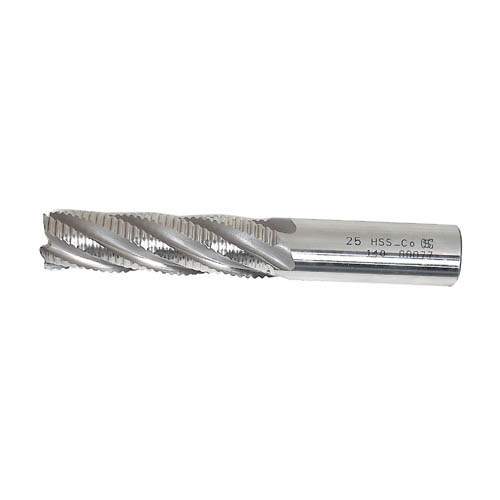

[OSG] — 80846K Long Lapping End Mill
End Mills OSG

[OSG] — 80846K Long Lapping End Mill

Family ID: 311-8249

OSG Long Lapping End Mill delivers precision milling performance with an extended-reach, fine-finish cutting geometry, sourced direct from Korea. Long lapping end mills are commonly used in die and mold work where deep cavities, narrow profiles, or fine surface finishes are required that standard-length tools cannot reliably reach. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.

24 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
311-8249 80846K OSG 6MM(80846K) | Spec: 6 | Flute Length: 24 | Overall Length: 68 | Product Name: General Purpose | Shank Diameter: 6
311-8258 80847K OSG 7MM(80847K) | Spec: 7 | Flute Length: 30 | Overall Length: 80 | Description: Standard | Shank d: 10
311-8267 80848K OSG 8MM(80848K) | Spec: 8 | Flute Length: 38 | Overall Length: 88 | Product Name: Standard | Shank Diameter: 10
311-8276 80849K OSG 9MM(80849K) | Spec: 9 | Flute Length: 38 | Overall Length: 88 | Product Name: Standard | Shank Diameter: 10
311-8285 80850K OSG 10MM(80850K) | Spec: 10 | Flute Length: 45 | Overall Length: 95 | Product Name: Standard | Shank Diameter: 10
311-8294 80851K OSG 11MM(80851K) | Spec: 11 | Flute Length: 45 | Overall Length: 102 | Product Name: General | Shank Diameter: 12
311-8300 80852K OSG 12MM(80852K) | Spec: 12 | Flute Length: 53 | Overall Length: 110 | Product Name: Standard | Shank Diameter: 12
311-8328 80854K OSG 14MM(80854K) | Spec: 14 | Flute Length: 53 | Overall Length: 110 | Product Name: Standard | Shank Diameter: 12
311-8337 80855K OSG 15MM(80855K) | Spec: 15 | Flute Length: 53 | Overall Length: 110 | Product Name: Standard | Shank d: 12
311-8346 80856K OSG 16MM(80856K) | Spec: 16 | Flute Length: 63 | Overall Length: 123 | Product Name: Standard | Shank d: 16
311-8382 80860K OSG 20MM(80860K) | Spec: 20 | Flute Length: 75 | Overall Length: 141 | Product Name: Standard | Shank Diameter: 20
311-8416 80863K OSG 23MM(80863K) | Spec: 23 | Flute Length: 75 | Overall Length: 141 | Product Name: Standard | Shank Diameter: 20
311-8425 80864K OSG 24MM(80864K) | Spec: 24 | Flute Length: 90 | Overall Length: 166 | Product Name: General | Shank Diameter: 25
311-8434 80865K OSG 25MM(80865K) | Spec: 25 | Flute Length: 90 | Overall Length: 166 | Product Name: General Purpose | Shank Diameter: 25
311-8443 80866K OSG 26MM(80866K) | Spec: 26 | Flute Length: 90 | Overall Length: 166 | Product Name: Standard | Shank d: 25
311-8452 80867K OSG 27MM(80867K) | Spec: 27 | Flute Length: 90 | Overall Length: 166 | Product Name: General | Shank Diameter: 25
311-8489 80870K OSG 30MM(80870K) | Spec: 30 | Flute Length: 90 | Overall Length: 166 | Product Name: Standard | Shank Diameter: 25
311-8504 80872K OSG 32MM(80872K) | Spec: 32 | Flute Length: 106 | Overall Length: 186 | Product Name: General | Shank Diameter: 32
311-8531 80875K OSG 35MM(80875K) | Spec: 35 | Flute Length: 106 | Overall Length: 186 | Product Name: Standard | Shank Diameter: 32
311-8540 80876K OSG 36MM(80876K) | Spec: 36 | Flute Length: 106 | Overall Length: 186 | Product Name: General | Shank Diameter: 32
311-8568 80878K OSG 38MM(80878K) | Spec: 38 | Flute Length: 125 | Overall Length: 205 | Product Name: Standard | Shank Diameter: 32
311-8586 80880K OSG 40MM(80880K) | Spec: 40 | Flute Length: 125 | Overall Length: 205 | Description: General Purpose | Shank d: 32
311-8601 80882K OSG 42MM(80882K) | Spec: 42 | Flute Length: 125 | Overall Length: 227 | Product Name: General | Shank d: 42
311-8638 80885K OSG 45MM(80885K) | Spec: 45 | Flute Length: 125 | Overall Length: 227 | Description: Standard | Shank Diameter: 42
