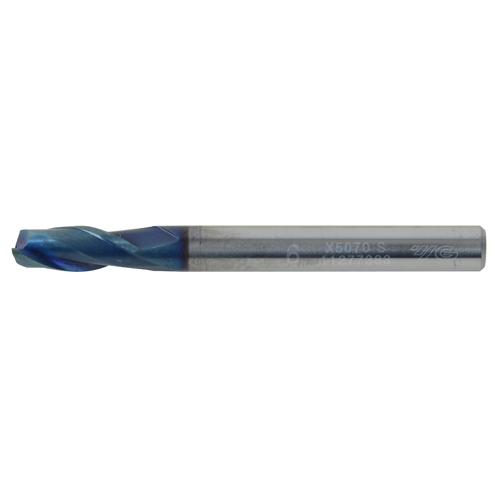

[YG-1] — SG8A01100 Carbide End Mill Carbide End Mill (X5070S)
End Mills YG-1

[YG-1] — SG8A01100 Carbide End Mill Carbide End Mill (X5070S)

Family ID: 304-5101

Carbide End Mill (X5070S) from YG-1, sourced from Korea.

20 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
304-5101 SG8A01100 YG-1 2F-10*10*25*70MM(SG8A01100) | Spec: 10.0 | Flute Length: 25 | Overall Length: 70 | Shank Diameter: 10
304-5341 SG8A01060 YG-1 2F-6*6*15*60MM(SG8A01060) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank d: 6
304-7376 SG8A01120 YG-1 2F-12*12*30*80MM(SG8A01120) | Spec: 12.0 | Flute Length: 30 | Overall Length: 80 | Shank Diameter: 12
304-7978 SG8A0104012 YG-1 2F-4*6*12*60MM(SG8A0104012) | Spec: 4.0 | Flute Length: 12 | Overall Length: 60 | Shank Diameter: 6
304-9374 SG8A01070 YG-1 2F-7*8*18*65MM(SG8A01070) | Spec: 7.0 | Flute Length: 18 | Overall Length: 65 | Shank d: 8
305-6657 SG8A01080 YG-1 2F-8*8*19*65MM(SG8A01080) | Spec: 8.0 | Flute Length: 19 | Overall Length: 65 | Shank Diameter: 8
305-6666 SG8A01050 YG-1 2F-5*6*13*60MM(SG8A01050) | Spec: 5.0 | Flute Length: 13 | Overall Length: 60 | Shank Diameter: 6
305-6675 SG8A01030 YG-1 2F-3*6*8*60MM(SG8A01030) | Spec: 3.0 | Flute Length: 8 | Overall Length: 60 | Shank Diameter: 6
305-6684 SG8A01040 YG-1 2F-4*6*10*60MM(SG8A01040) | Spec: 4.0 | Flute Length: 10 | Overall Length: 60 | Shank Diameter: 6
305-7133 SG8A01090 YG-1 2F-9*10*22*70MM(SG8A01090) | Spec: 9.0 | Flute Length: 22 | Overall Length: 70 | Shank Diameter: 10
305-7142 SG8A01110 YG-1 2F-11*12*28*80MM(SG8A01110) | Spec: 11.0 | Flute Length: 28 | Overall Length: 80 | Shank Diameter: 12
305-8123 SG8A0102004 YG-1 2F-2*6*4*50MM(SG8A0102004) | Spec: 2.0 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6
305-8141 SG8A0103006 YG-1 2F-3*3*6*70MM(SG8A0103006) | Spec: 3.0 | Flute Length: 6 | Overall Length: 70 | Shank d: 3
305-8150 SG8A0104008 YG-1 2F-4*4*8*80MM(SG8A0104008) | Spec: 4.0 | Flute Length: 8 | Overall Length: 80 | Shank Diameter: 4
305-8901 SG8A01020 YG-1 2F-2*6*6*50MM(SG8A01020) | Spec: 2.0 | Flute Length: 6 | Overall Length: 50 | Shank d: 6
306-2913 SG8A01025 YG-1 2F-2.5*6*7*50MM(SG8A01025) | Spec: 2.5 | Flute Length: 7 | Overall Length: 50 | Shank Diameter: 6
306-3754 SG8A0102008 YG-1 2F-2*6*8*50MM(SG8A0102008) | Spec: 2.0 | Flute Length: 8 | Overall Length: 50 | Shank Diameter: 6
306-3763 SG8A0103010 YG-1 2F-3*6*10*60MM(SG8A0103010) | Spec: 3.0 | Flute Length: 10 | Overall Length: 60 | Shank Diameter: 6
306-7185 SG8A0101506 YG-1 2F-1.5*6*6*50MM(SG8A0101506) | Spec: 1.5 | Flute Length: 6 | Overall Length: 50 | Shank Diameter: 6
308-2999 SG8A0104016 YG-1 2F-4*6*16*60MM(SG8A0104016) | Spec: 4.0 | Flute Length: 16 | Overall Length: 60 | Shank Diameter: 6
