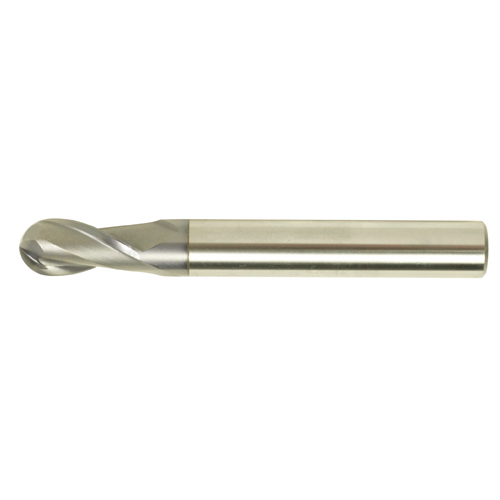

[YG-1] — EQ480010K End Mill HSS Ball End Mill (Coated)
End Mills YG-1

[YG-1] — EQ480010K End Mill HSS Ball End Mill (Coated)

Family ID: 301-6774

HSS Ball End Mill (Coated) from YG-1, sourced from Korea.

33 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
301-6774 EQ480010K YG-1 1*6*2.5*50MM TIALN (EQ480010K) | Spec: 0.5 | Flute Length: 2.5 | Overall Length: 50 | Shank d: 6
301-6783 EQ480015K YG-1 1.5*6*4*50MM TIALN (EQ480015K) | Spec: 0.75 | Flute Length: 4 | Overall Length: 50 | Shank Diameter: 6
301-6792 EQ480020K YG-1 2*6*5*50MM TIALN (EQ480020K) | Spec: 1 | Flute Length: 5 | Overall Length: 50 | Shank Diameter: 6
301-6808 EQ480025K YG-1 2.5*6*6*60MM TIALN (EQ480025K) | Spec: 1.25 | Flute Length: 6 | Overall Length: 60 | Shank Diameter: 6
301-6817 EQ480030K YG-1 3*6*8*60MM TIALN (EQ480030K) | Spec: 1.5 | Flute Length: 8 | Overall Length: 60 | Shank d: 6
301-6826 EQ480901K YG-1 4*6*8*70MM TIALN (EQ480901K) | Spec: 2 | Flute Length: 8 | Overall Length: 70 | Shank d: 6
301-6835 EQ480902K YG-1 5*6*10*80MM TIALN (EQ480902K) | Spec: 2.5 | Flute Length: 10 | Overall Length: 80 | Shank d: 6
301-6844 EQ480903K YG-1 6*6*12*90MM TIALN (EQ480903K) | Spec: 3 | Flute Length: 12 | Overall Length: 90 | Shank Diameter: 6
301-6853 EQ480904K YG-1 7*8*14*90MM TIALN (EQ480904K) | Spec: 3.5 | Flute Length: 14 | Overall Length: 90 | Shank d: 8
301-6862 EQ480905K YG-1 8*8*14*100MM TIALN (EQ480905K) | Spec: 4 | Flute Length: 14 | Overall Length: 100 | Shank Diameter: 8
301-6871 EQ480090K YG-1 9*10*18*100MM TIALN (EQ480090K) | Spec: 4.5 | Flute Length: 18 | Overall Length: 100 | Shank Diameter: 10
301-6880 EQ480100K YG-1 10*10*18*100MM TIALN (EQ480100K) | Spec: 5 | Flute Length: 18 | Overall Length: 100 | Shank Diameter: 10
301-6899 EQ480110K YG-1 11*12*22*100MM TIALN (EQ480110K) | Spec: 5.5 | Flute Length: 22 | Overall Length: 100 | Shank d: 12
301-6905 EQ480120K YG-1 12*12*22*110MM TIALN (EQ480120K) | Spec: 6 | Flute Length: 22 | Overall Length: 110 | Shank Diameter: 12
301-6914 EQ480130K YG-1 13*12*26*110MM TIALN (EQ480130K) | Spec: 6.5 | Flute Length: 26 | Overall Length: 110 | Shank Diameter: 12
301-6923 EQ480906K YG-1 14*12*26*110MM TIALN (EQ480906K) | Spec: 7 | Flute Length: 26 | Overall Length: 110 | Shank Diameter: 12
301-6932 EQ480907K YG-1 15*12*30*110MM TIALN (EQ480907K) | Spec: 7.5 | Flute Length: 30 | Overall Length: 110 | Shank Diameter: 12
301-6941 EQ480160K YG-1 16*16*30*140MM TIALN (EQ480160K) | Spec: 8 | Flute Length: 30 | Overall Length: 140 | Shank Diameter: 16
301-6950 EQ480170K YG-1 17*16*34*140MM TIALN (EQ480170K) | Spec: 8.5 | Flute Length: 34 | Overall Length: 140 | Shank Diameter: 16
301-6969 EQ480180K YG-1 18*16*34*140MM TIALN (EQ480180K) | Spec: 9 | Flute Length: 34 | Overall Length: 140 | Shank Diameter: 16
301-6978 EQ480190K YG-1 19*16*38*140MM TIALN (EQ480190K) | Spec: 9.5 | Flute Length: 38 | Overall Length: 140 | Shank Diameter: 16
301-6987 EQ480200K YG-1 20*20*38*160MM TiAlN (EQ480200K) | Spec: 10 | Flute Length: 38 | Overall Length: 160 | Shank Diameter: 20
301-6996 EQ480210K YG-1 21*20*45*170MM TIALN (EQ480210K) | Spec: 10.5 | Flute Length: 45 | Overall Length: 170 | Shank Dia: 20
301-7001 EQ480220K YG-1 22*20*45*170MM TIALN (EQ480220K) | Spec: 11 | Flute Length: 45 | Overall Length: 170 | Shank Diameter: 20
301-7010 EQ480230K YG-1 23*20*50*180MM TIALN (EQ480230K) | Spec: 11.5 | Flute Length: 50 | Overall Length: 180 | Shank Diameter: 20
301-7029 EQ480240K YG-1 24*25*50*180MM TIALN (EQ480240K) | Spec: 12 | Flute Length: 50 | Overall Length: 180 | Shank d: 25
301-7038 EQ480250K YG-1 25*25*50*180MM TIALN (EQ480250K) | Spec: 12.5 | Flute Length: 50 | Overall Length: 180 | Shank Diameter: 25
301-7047 EQ480260K YG-1 26*25*50*180MM TIALN (EQ480260K) | Spec: 13 | Flute Length: 50 | Overall Length: 180 | Shank Diameter: 25
301-7056 EQ480270K YG-1 27*25*50*180MM TIALN (EQ480270K) | Spec: 13.5 | Flute Length: 50 | Overall Length: 180 | Shank d: 25
301-7065 EQ480280K YG-1 28*25*50*180MM TIALN (EQ480280K) | Spec: 14 | Flute Length: 50 | Overall Length: 180 | Shank Diameter: 25
301-7074 EQ480300K YG-1 30*25*55*180MM TIALN (EQ480300K) | Spec: 15 | Flute Length: 55 | Overall Length: 180 | Shank Diameter: 25
301-7083 EQ480320K YG-1 32*32*60*180MM TIALN (EQ480320K) | Spec: 16 | Flute Length: 60 | Overall Length: 180 | Shank Diameter: 32
301-7108 EQ480400K YG-1 40*32*65*200MM TIALN (EQ480400K) | Spec: 20 | Flute Length: 65 | Overall Length: 200 | Shank D: 32
