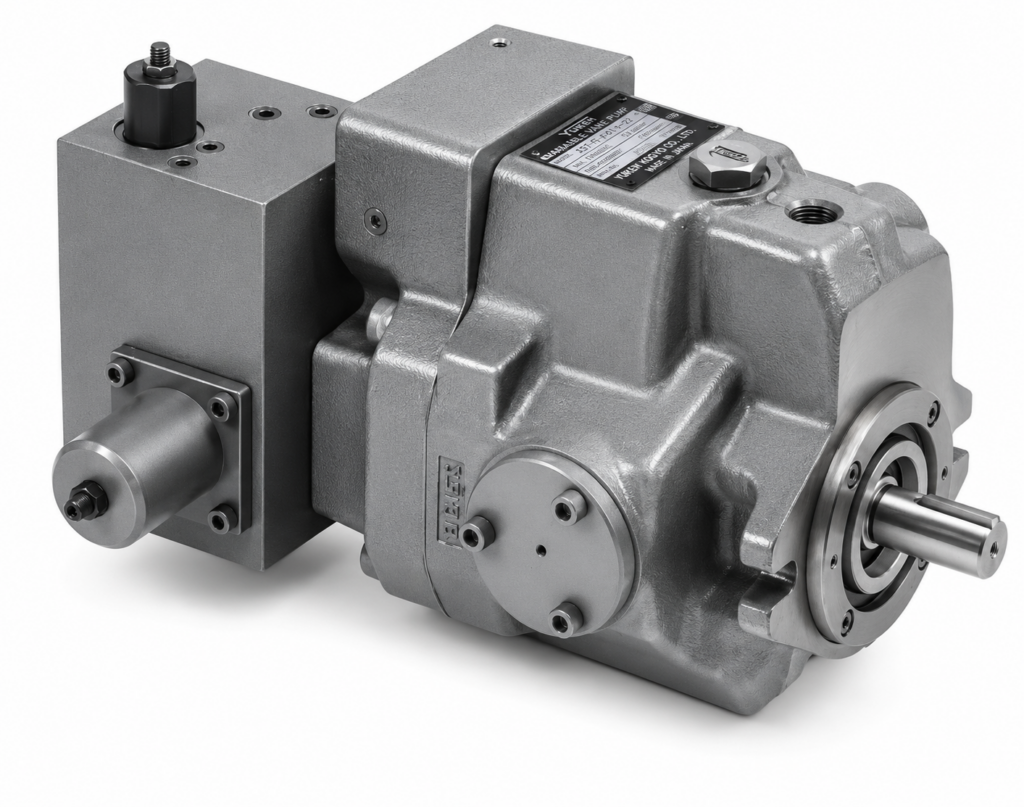

[Yuken] — A Series A16 Variable Displacement Piston Pump (Constant Power Control, 15.8 cm3/rev)
Piston Pumps Yuken

[Yuken] — A Series A16 Variable Displacement Piston Pump (Constant Power Control, 15.8 cm3/rev)

Family ID: YUKEN-A-A16-09

"A" Series Variable Displacement Piston Pumps - Single Pump, Constant Power Control Type.

8 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
A16-F-R-09-A-K-32 Yuken A16 (15.8 cm3/rev) constant power 3.7 kW, Flange mount, Axial port Yuken Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power Control (09) | Port Position: Axial port | Power Characteristic: 3.7 kW (A) | Max. Usable Pressure: 21 MPa | Specified Control Pressure: Specify at order, <= max usable pressure (RFQ) | Shaft End: Parallel key (K) | Design Number: 32 | Mass: 29.0 kg (flange) / 31.2 kg (foot) | Allowable Speed: 600-1800 r/min
A16-F-R-09-B-K-32 Yuken A16 (15.8 cm3/rev) constant power 5.5 kW, Flange mount, Axial port Yuken Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power Control (09) | Port Position: Axial port | Power Characteristic: 5.5 kW (B) | Max. Usable Pressure: 21 MPa | Specified Control Pressure: Specify at order, <= max usable pressure (RFQ) | Shaft End: Parallel key (K) | Design Number: 32 | Mass: 29.0 kg (flange) / 31.2 kg (foot) | Allowable Speed: 600-1800 r/min
A16-F-R-09-E-K-32 Yuken A16 (15.8 cm3/rev) constant power 2.2 kW, Flange mount, Axial port Yuken Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power Control (09) | Port Position: Axial port | Power Characteristic: 2.2 kW (E) | Max. Usable Pressure: 16 MPa | Specified Control Pressure: Specify at order, <= max usable pressure (RFQ) | Shaft End: Parallel key (K) | Design Number: 32 | Mass: 29.0 kg (flange) / 31.2 kg (foot) | Allowable Speed: 600-1800 r/min
A16-F-R-09-F-K-32 Yuken A16 (15.8 cm3/rev) constant power 1.5 kW, Flange mount, Axial port Yuken Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power Control (09) | Port Position: Axial port | Power Characteristic: 1.5 kW (F) | Max. Usable Pressure: 10.5 MPa | Specified Control Pressure: Specify at order, <= max usable pressure (RFQ) | Shaft End: Parallel key (K) | Design Number: 32 | Mass: 29.0 kg (flange) / 31.2 kg (foot) | Allowable Speed: 600-1800 r/min
A16-L-R-09-A-K-32 Yuken A16 (15.8 cm3/rev) constant power 3.7 kW, Foot mount, Axial port Yuken Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power Control (09) | Port Position: Axial port | Power Characteristic: 3.7 kW (A) | Max. Usable Pressure: 21 MPa | Specified Control Pressure: Specify at order, <= max usable pressure (RFQ) | Shaft End: Parallel key (K) | Design Number: 32 | Mass: 29.0 kg (flange) / 31.2 kg (foot) | Allowable Speed: 600-1800 r/min
A16-L-R-09-B-K-32 Yuken A16 (15.8 cm3/rev) constant power 5.5 kW, Foot mount, Axial port Yuken Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power Control (09) | Port Position: Axial port | Power Characteristic: 5.5 kW (B) | Max. Usable Pressure: 21 MPa | Specified Control Pressure: Specify at order, <= max usable pressure (RFQ) | Shaft End: Parallel key (K) | Design Number: 32 | Mass: 29.0 kg (flange) / 31.2 kg (foot) | Allowable Speed: 600-1800 r/min
A16-L-R-09-E-K-32 Yuken A16 (15.8 cm3/rev) constant power 2.2 kW, Foot mount, Axial port Yuken Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power Control (09) | Port Position: Axial port | Power Characteristic: 2.2 kW (E) | Max. Usable Pressure: 16 MPa | Specified Control Pressure: Specify at order, <= max usable pressure (RFQ) | Shaft End: Parallel key (K) | Design Number: 32 | Mass: 29.0 kg (flange) / 31.2 kg (foot) | Allowable Speed: 600-1800 r/min
A16-L-R-09-F-K-32 Yuken A16 (15.8 cm3/rev) constant power 1.5 kW, Foot mount, Axial port Yuken Series: A | Frame: A16 | Geometric Displacement: 15.8 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Constant Power Control (09) | Port Position: Axial port | Power Characteristic: 1.5 kW (F) | Max. Usable Pressure: 10.5 MPa | Specified Control Pressure: Specify at order, <= max usable pressure (RFQ) | Shaft End: Parallel key (K) | Design Number: 32 | Mass: 29.0 kg (flange) / 31.2 kg (foot) | Allowable Speed: 600-1800 r/min
