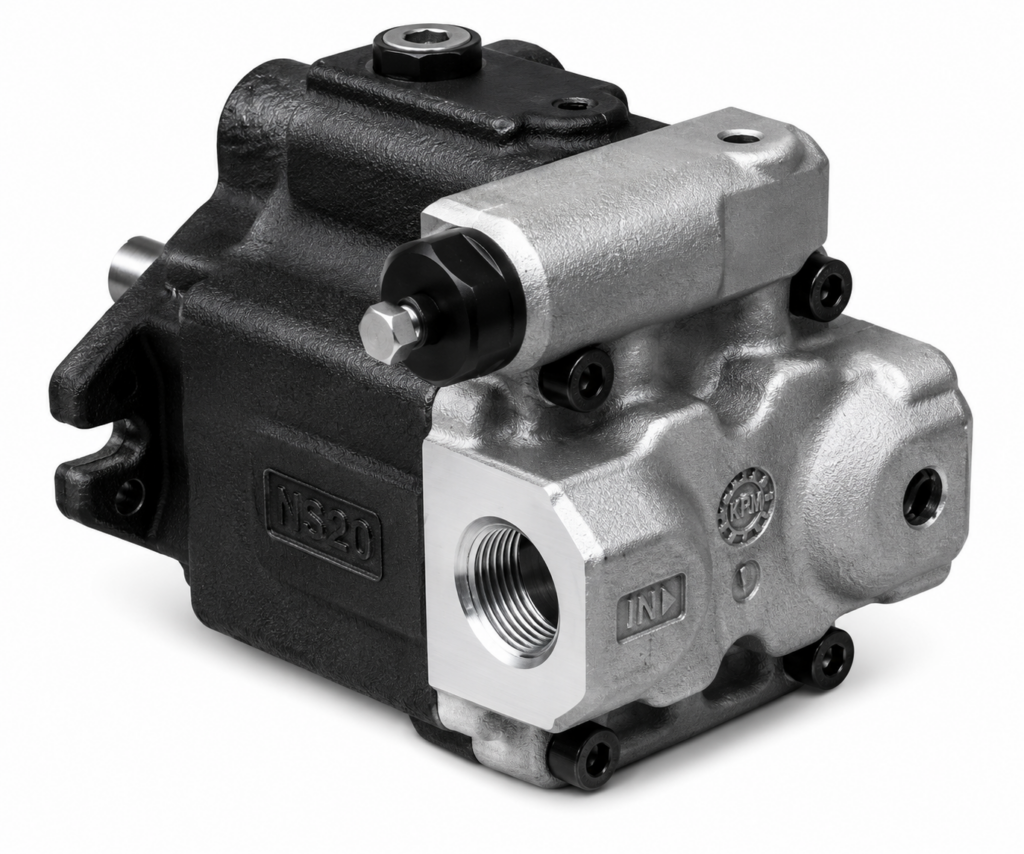

[Yuken] — ARL1 Series Variable Displacement Piston Pump (Pressure Compensator, 6.2-16.3 cm3/rev)
Piston Pumps Yuken

[Yuken] — ARL1 Series Variable Displacement Piston Pump (Pressure Compensator, 6.2-16.3 cm3/rev)

Family ID: YUKEN-ARL1

"ARL1" Series Piston Pumps - Single Pump, Pressure Compensator Type.

12 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
ARL1-6-FR01S-10 Yuken ARL1-6 (6.2 cm3/rev), Flange mount, Side port (standard) Yuken Series: ARL1 | Geometric Displacement: 6.2 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-6-FR01A-10 Yuken ARL1-6 (6.2 cm3/rev), Flange mount, Suction port downward Yuken Series: ARL1 | Geometric Displacement: 6.2 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-6-LR01S-10 Yuken ARL1-6 (6.2 cm3/rev), Foot mount, Side port (standard) Yuken Series: ARL1 | Geometric Displacement: 6.2 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-8-FR01S-10 Yuken ARL1-8 (8.5 cm3/rev), Flange mount, Side port (standard) Yuken Series: ARL1 | Geometric Displacement: 8.5 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-8-FR01A-10 Yuken ARL1-8 (8.5 cm3/rev), Flange mount, Suction port downward Yuken Series: ARL1 | Geometric Displacement: 8.5 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-8-LR01S-10 Yuken ARL1-8 (8.5 cm3/rev), Foot mount, Side port (standard) Yuken Series: ARL1 | Geometric Displacement: 8.5 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-12-FR01S-10 Yuken ARL1-12 (12.3 cm3/rev), Flange mount, Side port (standard) Yuken Series: ARL1 | Geometric Displacement: 12.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-12-FR01A-10 Yuken ARL1-12 (12.3 cm3/rev), Flange mount, Suction port downward Yuken Series: ARL1 | Geometric Displacement: 12.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-12-LR01S-10 Yuken ARL1-12 (12.3 cm3/rev), Foot mount, Side port (standard) Yuken Series: ARL1 | Geometric Displacement: 12.3 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-16-FR01S-10 Yuken ARL1-16 (16.3 cm3/rev), Flange mount, Side port (standard) Yuken Series: ARL1 | Geometric Displacement: 16.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-16-FR01A-10 Yuken ARL1-16 (16.3 cm3/rev), Flange mount, Suction port downward Yuken Series: ARL1 | Geometric Displacement: 16.3 cm3/rev | Mounting: Flange | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Suction port downward | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 6.8 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
ARL1-16-LR01S-10 Yuken ARL1-16 (16.3 cm3/rev), Foot mount, Side port (standard) Yuken Series: ARL1 | Geometric Displacement: 16.3 cm3/rev | Mounting: Foot | Direction of Rotation: Clockwise (viewed from shaft end) | Control Type: Pressure Compensator | Port Position: Side port (standard) | Design Number: 10 | Min. Adjustment Pressure: 1.2 MPa | Max. Working Pressure: 7 MPa | Allowable Speed: 600-1800 r/min | Mass: 9.0 kg | Port Connections: Suction Rc3/4, Delivery Rc1/2, Drain Rc3/8, Gauge Rc1/4
