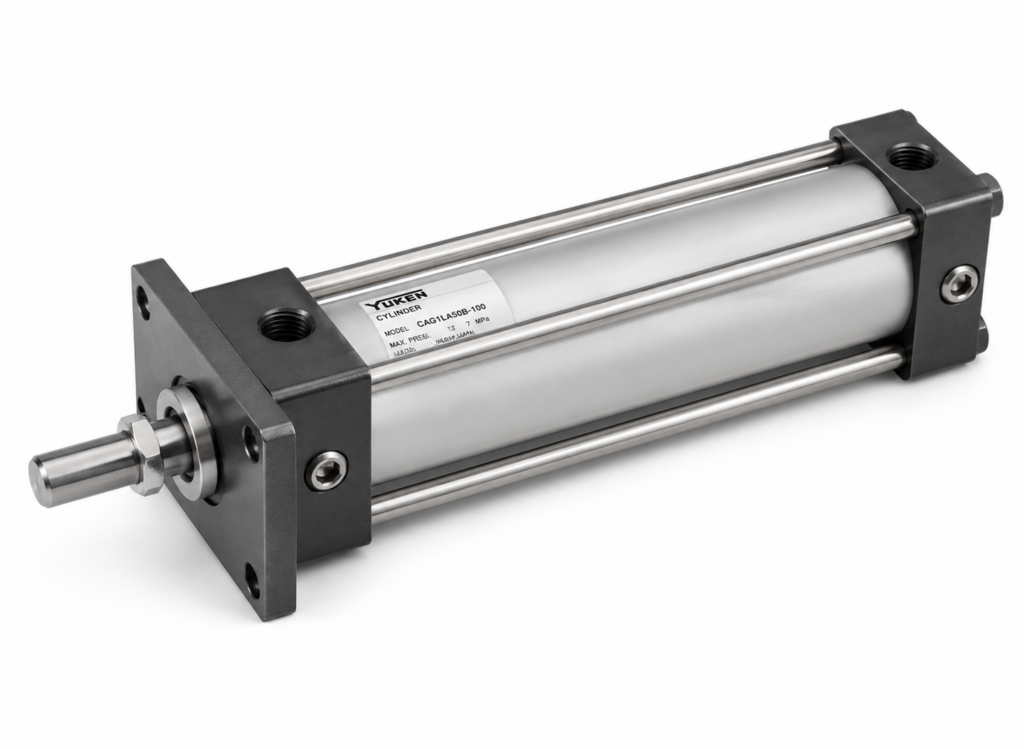

[YUKEN] — CJT35 3.5MPa Standard Hydraulic Cylinder (Clevis Mount CA/CB, Bore 32-160mm)
Family ID: YK-CJT35-CLEV
YUKEN's CJT 3.5 MPa Series standard hydraulic cylinders are provided with a wide variety of mounting styles so they can be used for a broad range of applications, from machine tools to general industrial machinery. A proximity-switch-equipped standard hydraulic cylinder, which mounts a slide-type proximity switch on the cylinder body for simple position detection, is also available as a series (see catalog page J-69). Rich variety of mounting styles. Good low-speed characteristics, enabling high-precision operation. Nominal pressure 3.5 MPa; bore 32-160 mm; mounting styles SD/LA/LB/FA/FB/CA/CB/TA/TC. This listing covers the Clevis Mount CA/CB types: CA (Detachable eye (single-knuckle clevis)), CB (Detachable clevis (double-knuckle)).
16 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| CJT35-CA-32S | CJT35 3.5MPa standard hydraulic cylinder, Detachable eye (single-knuckle clevis) (CA), bore 32mm, rod S, max stroke 1000mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CA — Detachable eye (single-knuckle clevis) / 분리 아이형(1산 크레비스형) | Bore: 32 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CA-40S | CJT35 3.5MPa standard hydraulic cylinder, Detachable eye (single-knuckle clevis) (CA), bore 40mm, rod S, max stroke 1000mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CA — Detachable eye (single-knuckle clevis) / 분리 아이형(1산 크레비스형) | Bore: 40 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CA-50S | CJT35 3.5MPa standard hydraulic cylinder, Detachable eye (single-knuckle clevis) (CA), bore 50mm, rod S, max stroke 1200mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CA — Detachable eye (single-knuckle clevis) / 분리 아이형(1산 크레비스형) | Bore: 50 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CA-63S | CJT35 3.5MPa standard hydraulic cylinder, Detachable eye (single-knuckle clevis) (CA), bore 63mm, rod S, max stroke 1200mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CA — Detachable eye (single-knuckle clevis) / 분리 아이형(1산 크레비스형) | Bore: 63 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CA-80S | CJT35 3.5MPa standard hydraulic cylinder, Detachable eye (single-knuckle clevis) (CA), bore 80mm, rod S, max stroke 1600mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CA — Detachable eye (single-knuckle clevis) / 분리 아이형(1산 크레비스형) | Bore: 80 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CA-100S | CJT35 3.5MPa standard hydraulic cylinder, Detachable eye (single-knuckle clevis) (CA), bore 100mm, rod S, max stroke 1600mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CA — Detachable eye (single-knuckle clevis) / 분리 아이형(1산 크레비스형) | Bore: 100 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CA-125S | CJT35 3.5MPa standard hydraulic cylinder, Detachable eye (single-knuckle clevis) (CA), bore 125mm, rod S, max stroke 1800mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CA — Detachable eye (single-knuckle clevis) / 분리 아이형(1산 크레비스형) | Bore: 125 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CA-160S | CJT35 3.5MPa standard hydraulic cylinder, Detachable eye (single-knuckle clevis) (CA), bore 160mm, rod S, max stroke 1800mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CA — Detachable eye (single-knuckle clevis) / 분리 아이형(1산 크레비스형) | Bore: 160 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CB-32S | CJT35 3.5MPa standard hydraulic cylinder, Detachable clevis (double-knuckle) (CB), bore 32mm, rod S, max stroke 1000mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CB — Detachable clevis (double-knuckle) / 분리 크레비스형(2산 크레비스형) | Bore: 32 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CB-40S | CJT35 3.5MPa standard hydraulic cylinder, Detachable clevis (double-knuckle) (CB), bore 40mm, rod S, max stroke 1000mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CB — Detachable clevis (double-knuckle) / 분리 크레비스형(2산 크레비스형) | Bore: 40 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CB-50S | CJT35 3.5MPa standard hydraulic cylinder, Detachable clevis (double-knuckle) (CB), bore 50mm, rod S, max stroke 1200mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CB — Detachable clevis (double-knuckle) / 분리 크레비스형(2산 크레비스형) | Bore: 50 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CB-63S | CJT35 3.5MPa standard hydraulic cylinder, Detachable clevis (double-knuckle) (CB), bore 63mm, rod S, max stroke 1200mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CB — Detachable clevis (double-knuckle) / 분리 크레비스형(2산 크레비스형) | Bore: 63 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CB-80S | CJT35 3.5MPa standard hydraulic cylinder, Detachable clevis (double-knuckle) (CB), bore 80mm, rod S, max stroke 1600mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CB — Detachable clevis (double-knuckle) / 분리 크레비스형(2산 크레비스형) | Bore: 80 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CB-100S | CJT35 3.5MPa standard hydraulic cylinder, Detachable clevis (double-knuckle) (CB), bore 100mm, rod S, max stroke 1600mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CB — Detachable clevis (double-knuckle) / 분리 크레비스형(2산 크레비스형) | Bore: 100 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CB-125S | CJT35 3.5MPa standard hydraulic cylinder, Detachable clevis (double-knuckle) (CB), bore 125mm, rod S, max stroke 1800mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CB — Detachable clevis (double-knuckle) / 분리 크레비스형(2산 크레비스형) | Bore: 125 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 | ||
| CJT35-CB-160S | CJT35 3.5MPa standard hydraulic cylinder, Detachable clevis (double-knuckle) (CB), bore 160mm, rod S, max stroke 1800mm | YUKEN | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: CB — Detachable clevis (double-knuckle) / 분리 크레비스형(2산 크레비스형) | Bore: 160 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30 |
