Relief Valves
Yuken

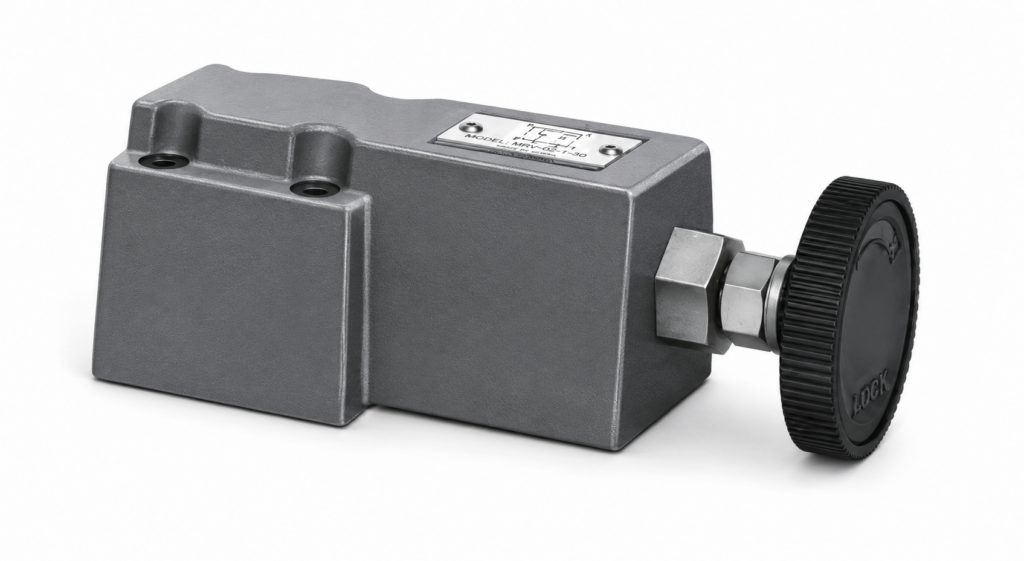

[Yuken] — Direct Type Relief Valve (DT/DG-02)
Family ID: YUK-PC-RV-D02
Direct Type Relief Valves. Max. operating pressure: 21 MPa. Max. flow: 16 L/min. Pressure adjustment range: B (to 7 MPa) / C (3.5–14 MPa) / H (7–21 MPa). Threaded type (DT) / sub-plate mounting type (DG).
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| DT-02-B-22 | Direct Type Relief Valve DT-02-B, Threaded, range B | Yuken | Type: Direct Type Relief Valve | Mounting: Threaded | Valve Size: 02 | Pressure Adjustment Range: B (to 7 MPa) | Max. Operating Pressure: 21 MPa | Max. Flow: 16 L/min | Mass: 1.5 kg | Design No.: 22 | ||
| DT-02-C-22 | Direct Type Relief Valve DT-02-C, Threaded, range C | Yuken | Type: Direct Type Relief Valve | Mounting: Threaded | Valve Size: 02 | Pressure Adjustment Range: C (3.5–14 MPa) | Max. Operating Pressure: 21 MPa | Max. Flow: 16 L/min | Mass: 1.5 kg | Design No.: 22 | ||
| DT-02-H-22 | Direct Type Relief Valve DT-02-H, Threaded, range H | Yuken | Type: Direct Type Relief Valve | Mounting: Threaded | Valve Size: 02 | Pressure Adjustment Range: H (7–21 MPa) | Max. Operating Pressure: 21 MPa | Max. Flow: 16 L/min | Mass: 1.5 kg | Design No.: 22 | ||
| DG-02-B-22 | Direct Type Relief Valve DG-02-B, Sub-plate, range B | Yuken | Type: Direct Type Relief Valve | Mounting: Sub-plate | Valve Size: 02 | Pressure Adjustment Range: B (to 7 MPa) | Max. Operating Pressure: 21 MPa | Max. Flow: 16 L/min | Mass: 1.5 kg | Design No.: 22 | ||
| DG-02-C-22 | Direct Type Relief Valve DG-02-C, Sub-plate, range C | Yuken | Type: Direct Type Relief Valve | Mounting: Sub-plate | Valve Size: 02 | Pressure Adjustment Range: C (3.5–14 MPa) | Max. Operating Pressure: 21 MPa | Max. Flow: 16 L/min | Mass: 1.5 kg | Design No.: 22 | ||
| DG-02-H-22 | Direct Type Relief Valve DG-02-H, Sub-plate, range H | Yuken | Type: Direct Type Relief Valve | Mounting: Sub-plate | Valve Size: 02 | Pressure Adjustment Range: H (7–21 MPa) | Max. Operating Pressure: 21 MPa | Max. Flow: 16 L/min | Mass: 1.5 kg | Design No.: 22 |
