Relief Valves
Yuken

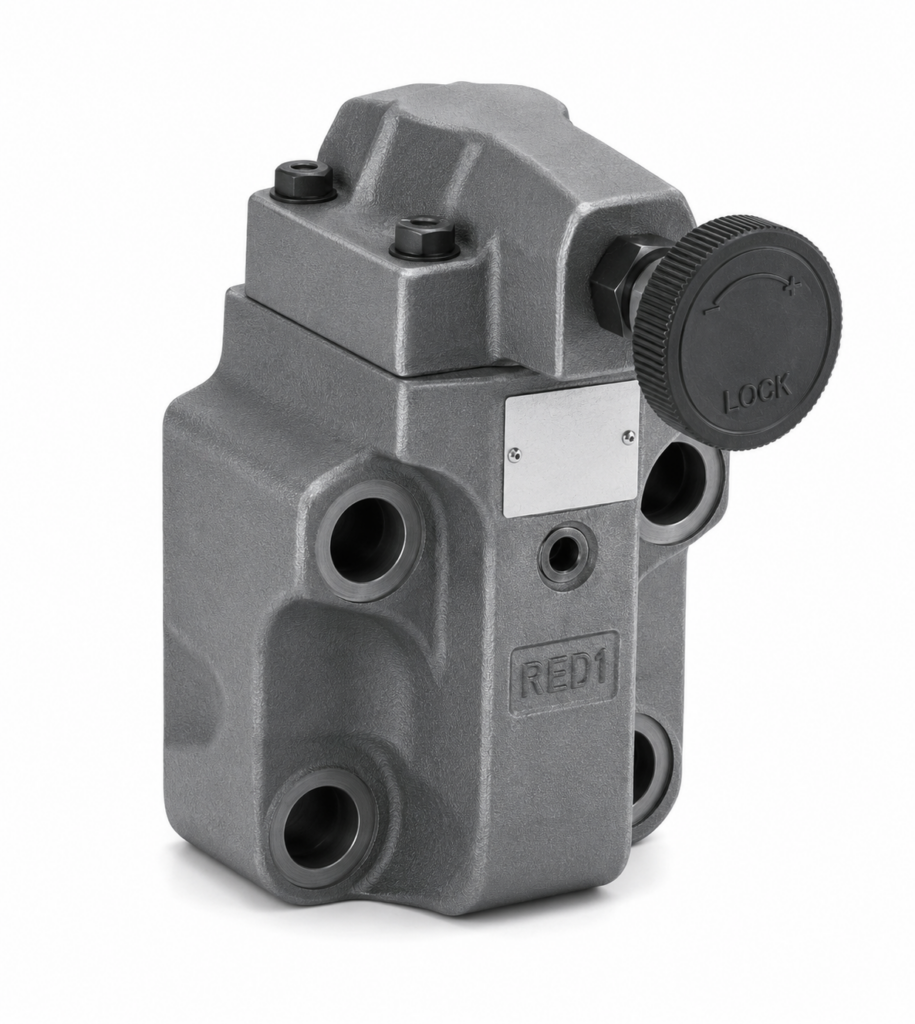

[Yuken] — Pilot Operated Relief Valve (BT/BG-03/06/10)
Family ID: YUK-PC-RV-BTG
Pilot Operated Relief Valves. Max. operating pressure: 25 MPa. Pressure adjustment range: to 25 MPa. Max. flow: 100 L/min (03) / 200 L/min (06) / 400 L/min (10). High-vent type (-V) available. Threaded (BT) / sub-plate (BG).
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| BT-03-32 | Pilot Operated Relief Valve BT-03, Threaded | Yuken | Type: Pilot Operated Relief Valve | Mounting: Threaded | Valve Size: 03 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Mass: 5.0 kg | Design No.: 32 | ||
| BT-03-V-32 | Pilot Operated Relief Valve BT-03-V, Threaded, high-vent | Yuken | Type: Pilot Operated Relief Valve | Mounting: Threaded | Valve Size: 03 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Mass: 5.0 kg | Design No.: 32 | ||
| BT-06-32 | Pilot Operated Relief Valve BT-06, Threaded | Yuken | Type: Pilot Operated Relief Valve | Mounting: Threaded | Valve Size: 06 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 200 L/min | Mass: 5.0 kg | Design No.: 32 | ||
| BT-06-V-32 | Pilot Operated Relief Valve BT-06-V, Threaded, high-vent | Yuken | Type: Pilot Operated Relief Valve | Mounting: Threaded | Valve Size: 06 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 200 L/min | Mass: 5.0 kg | Design No.: 32 | ||
| BT-10-32 | Pilot Operated Relief Valve BT-10, Threaded | Yuken | Type: Pilot Operated Relief Valve | Mounting: Threaded | Valve Size: 10 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Mass: 8.5 kg | Design No.: 32 | ||
| BT-10-V-32 | Pilot Operated Relief Valve BT-10-V, Threaded, high-vent | Yuken | Type: Pilot Operated Relief Valve | Mounting: Threaded | Valve Size: 10 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Mass: 8.5 kg | Design No.: 32 | ||
| BG-03-32 | Pilot Operated Relief Valve BG-03, Sub-plate | Yuken | Type: Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 03 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Mass: 4.7 kg | Design No.: 32 | ||
| BG-03-V-32 | Pilot Operated Relief Valve BG-03-V, Sub-plate, high-vent | Yuken | Type: Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 03 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Mass: 4.7 kg | Design No.: 32 | ||
| BG-06-32 | Pilot Operated Relief Valve BG-06, Sub-plate | Yuken | Type: Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 06 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 200 L/min | Mass: 5.6 kg | Design No.: 32 | ||
| BG-06-V-32 | Pilot Operated Relief Valve BG-06-V, Sub-plate, high-vent | Yuken | Type: Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 06 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 200 L/min | Mass: 5.6 kg | Design No.: 32 | ||
| BG-10-32 | Pilot Operated Relief Valve BG-10, Sub-plate | Yuken | Type: Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 10 | High-Vent Type: No | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Mass: 8.7 kg | Design No.: 32 | ||
| BG-10-V-32 | Pilot Operated Relief Valve BG-10-V, Sub-plate, high-vent | Yuken | Type: Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 10 | High-Vent Type: Yes (-V) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Mass: 8.7 kg | Design No.: 32 |
