Relief Valves
Yuken

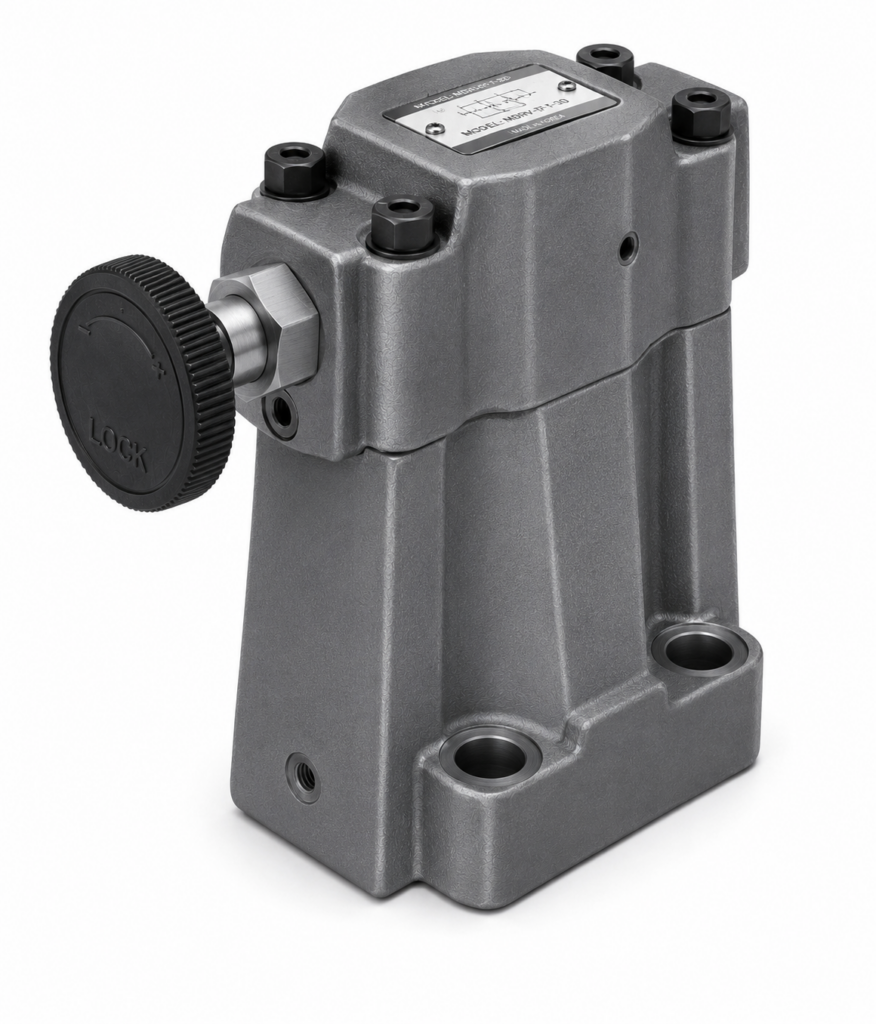

[Yuken] — Low Noise Pilot Operated Relief Valve (S-BG-03/06/10)
Family ID: YUK-PC-RV-SBG
Low Noise Type Pilot Operated Relief Valves. Max. operating pressure: 25 MPa. Pressure adjustment range: to 25 MPa. Max. flow: 100/200/400 L/min (03/06/10). Sub-plate mounting. Pressure adjustment handle direction: L (left, standard) / R (right). High-vent type (-V) available.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| S-BG-03-L-40 | Low Noise Relief Valve S-BG-03-L, sub-plate, handle L | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 03 | High-Vent Type: No | Handle Direction: L (Left (standard)) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Mass: 4.1 kg | Design No.: 40 | ||
| S-BG-03-R-40 | Low Noise Relief Valve S-BG-03-R, sub-plate, handle R | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 03 | High-Vent Type: No | Handle Direction: R (Right) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Mass: 4.1 kg | Design No.: 40 | ||
| S-BG-03-V-L-40 | Low Noise Relief Valve S-BG-03-V-L, sub-plate, handle L, high-vent | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 03 | High-Vent Type: Yes (-V) | Handle Direction: L (Left (standard)) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Mass: 4.1 kg | Design No.: 40 | ||
| S-BG-03-V-R-40 | Low Noise Relief Valve S-BG-03-V-R, sub-plate, handle R, high-vent | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 03 | High-Vent Type: Yes (-V) | Handle Direction: R (Right) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 100 L/min | Mass: 4.1 kg | Design No.: 40 | ||
| S-BG-06-L-40 | Low Noise Relief Valve S-BG-06-L, sub-plate, handle L | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 06 | High-Vent Type: No | Handle Direction: L (Left (standard)) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 200 L/min | Mass: 5.0 kg | Design No.: 40 | ||
| S-BG-06-R-40 | Low Noise Relief Valve S-BG-06-R, sub-plate, handle R | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 06 | High-Vent Type: No | Handle Direction: R (Right) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 200 L/min | Mass: 5.0 kg | Design No.: 40 | ||
| S-BG-06-V-L-40 | Low Noise Relief Valve S-BG-06-V-L, sub-plate, handle L, high-vent | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 06 | High-Vent Type: Yes (-V) | Handle Direction: L (Left (standard)) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 200 L/min | Mass: 5.0 kg | Design No.: 40 | ||
| S-BG-06-V-R-40 | Low Noise Relief Valve S-BG-06-V-R, sub-plate, handle R, high-vent | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 06 | High-Vent Type: Yes (-V) | Handle Direction: R (Right) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 200 L/min | Mass: 5.0 kg | Design No.: 40 | ||
| S-BG-10-L-40 | Low Noise Relief Valve S-BG-10-L, sub-plate, handle L | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 10 | High-Vent Type: No | Handle Direction: L (Left (standard)) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Mass: 10.5 kg | Design No.: 40 | ||
| S-BG-10-R-40 | Low Noise Relief Valve S-BG-10-R, sub-plate, handle R | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 10 | High-Vent Type: No | Handle Direction: R (Right) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Mass: 10.5 kg | Design No.: 40 | ||
| S-BG-10-V-L-40 | Low Noise Relief Valve S-BG-10-V-L, sub-plate, handle L, high-vent | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 10 | High-Vent Type: Yes (-V) | Handle Direction: L (Left (standard)) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Mass: 10.5 kg | Design No.: 40 | ||
| S-BG-10-V-R-40 | Low Noise Relief Valve S-BG-10-V-R, sub-plate, handle R, high-vent | Yuken | Type: Low Noise Pilot Operated Relief Valve | Mounting: Sub-plate | Valve Size: 10 | High-Vent Type: Yes (-V) | Handle Direction: R (Right) | Max. Operating Pressure: 25 MPa | Pressure Adjustment Range: to 25 MPa | Max. Flow: 400 L/min | Mass: 10.5 kg | Design No.: 40 |
