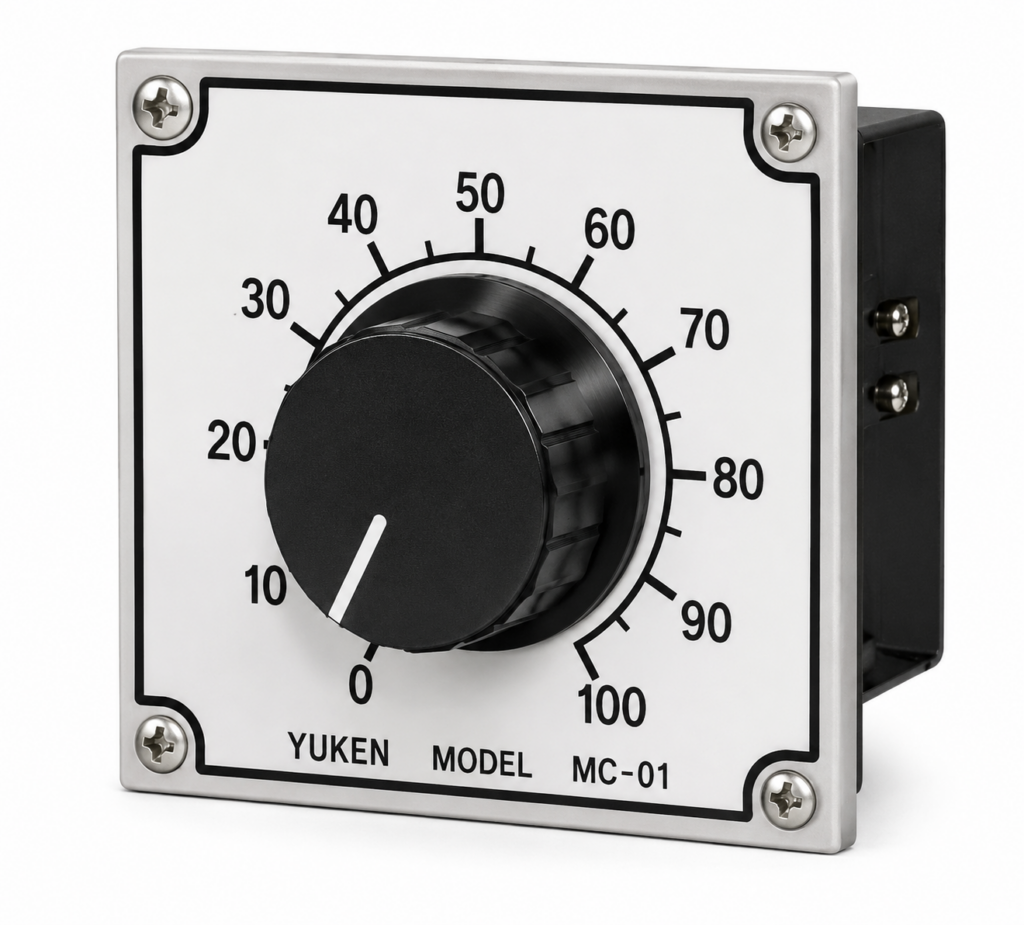

[Yuken] — Setting Adjusters for Proportional Control Amplifiers (MC-01 / MC-02 / AMC-V6)
Family ID: YK-SETTER-MC
Yuken setting adjusters that supply the command-signal voltage to proportional-control power amplifiers. As setting depends on the actual operating method, setters are normally built to customer request; the following are sold as standard products. MC-01 is the simplest manual dial setter (single 1 kΩ volume); MC-02 is a centre-tapped manual dial setter (1 kΩ·1 kΩ) suited to servo systems; AMC-V6 is a 6-point setter for individual setting of six points. Use the setter potentiometer impedance specified for each amplifier (typically 1–2 kΩ).
3 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| MC-01 | Yuken MC-01 setting adjuster for proportional control amplifiers | Yuken | Type: Setting adjuster for proportional-control amplifiers | Brand: Yuken | Model: MC-01 | Description: Manual dial setting adjuster with a single 1 kΩ volume, dial and scale; the simplest setter. Panel-mount, mass 0.5 kg. | Mounting: Panel mount | Function: Supplies command-signal voltage to the power amplifier | ||
| MC-02 | Yuken MC-02 setting adjuster for proportional control amplifiers | Yuken | Type: Setting adjuster for proportional-control amplifiers | Brand: Yuken | Model: MC-02 | Description: Manual dial setting adjuster with a centre-tapped volume (1 kΩ · 1 kΩ), dial and scale; suited to servo systems. | Mounting: Panel mount | Function: Supplies command-signal voltage to the power amplifier | ||
| AMC-V6-S-10 | Yuken AMC-V6-S-10 setting adjuster for proportional control amplifiers | Yuken | Type: Setting adjuster for proportional-control amplifiers | Brand: Yuken | Model: AMC-V6-S-10 | Description: 6-point setter with six volumes, allowing individual setting of six points. Full order code AMC-V6-S-※-10 (※ = option, specify by inquiry / RFQ). | Mounting: Panel mount | Function: Supplies command-signal voltage to the power amplifier |
