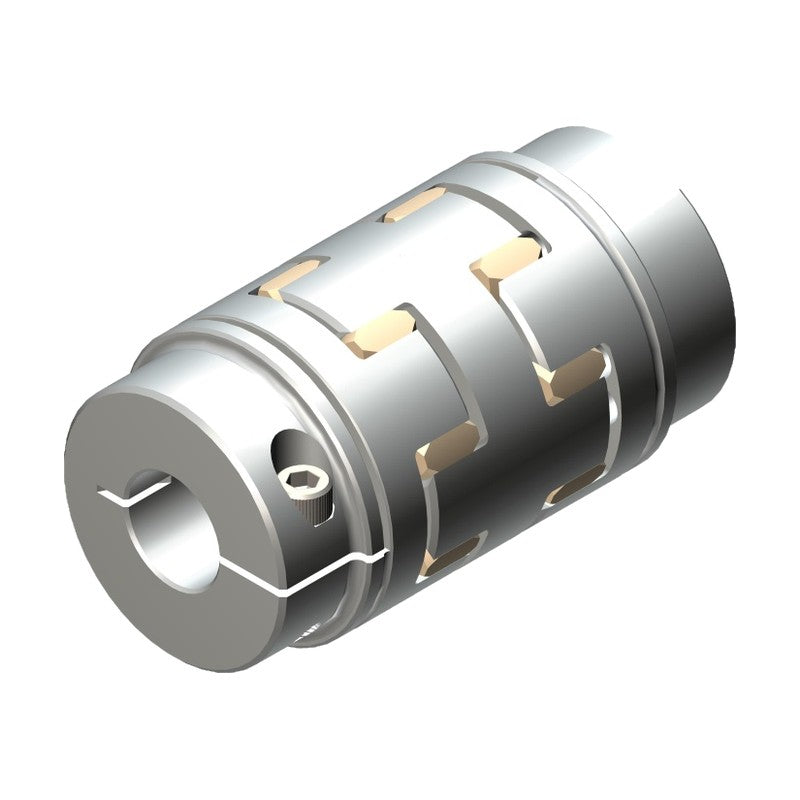

Apex Dynamics E Elastomer Backlash-Free Servo Couplings (Size 07-90)

Apex Dynamics E Elastomer Backlash-Free Servo Couplings (Size 07-90)

APEX Dynamics E series backlash-free elastomer (jaw) couplings in 17 sizes with five elastomer grades, single-stage or 2-stage double-cardanic, and a wide choice of clamp, clamping-ring, expanding, taper and flange hubs.

Key features

  • Five pre-loaded elastomers: A 64 Sh-D, B 98 Sh-A, C 80 Sh-A (sizes 07-19), D 65 Sh-D conductive, E 64 Sh-D Hytrel (-50 to +150 C)
  • Rated torque TKN 0.7 to 4,500 Nm, max torque TKmax up to 9,000 Nm (size 90, 64 Sh-D)
  • Hub types A/AK set screw, B/BK and C/CK clamp, DL/DS/DP clamping ring, E/EK, F expanding, G taper 1/10, N flange for AH/AP gearboxes
  • 2-stage double-cardanic version (Q connecting ring, code AA) for sizes 07-55 with larger radial misalignment
  • Hubs aluminum (sizes 07-38) or steel (sizes 42-90); bores H7, keyways DIN 6885/1 JS9
  • Vibration damping and shock absorption for high-gain servo, stepper and spindle drives

Specifications

Coupling type Backlash-free elastomer (jaw) coupling
Elastomer code Letter A-E; doubled (e.g. AA) = 2-stage
Hollow elastomer Append 0 to the elastomer code (e.g. A0, AA0)
Angular misalignment 0.8 deg (64 Sh-D) to 1.1 deg (80 Sh-A)
Bore tolerance H7; keyway DIN 6885/1 JS9 above 6 mm
Hub material Aluminum (07-38), steel (42-90), varies by hub
Ordering E-size-elastomer-input hub-bore-output hub-bore
Hub and bore selection Specify input/output hub type and bore when ordering (e.g. E-38-A-B-28-E-32)
Selection DIN 740 part 2 with St, SB, SZ factors
Warranty 5 years
Source APEX Dynamics Elastomer Coupling catalog, p. 2-30
E-07-A Size: 07 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-07-AA Size: 07 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-07-B Size: 07 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 2/4 Nm | Hub types: A,B,C
E-07-BB Size: 07 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 2/4 Nm | Hub types: A,B,C
E-07-C Size: 07 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 0.7/1.4 Nm | Hub types: A,B,C
E-07-CC Size: 07 | Elastomer: C yellow 80 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 0.7/1.4 Nm | Hub types: A,B,C
E-07-D Size: 07 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-07-DD Size: 07 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-07-E Size: 07 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-07-EE Size: 07 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-08-A Size: 08 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: C
E-08-B Size: 08 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 2/4 Nm | Hub types: C
E-08-C Size: 08 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 0.7/1.4 Nm | Hub types: C
E-08-D Size: 08 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: C
E-08-E Size: 08 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: C
E-09-A Size: 09 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-09-AA Size: 09 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-09-B Size: 09 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 5/10 Nm | Hub types: A,B,C,F
E-09-BB Size: 09 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 5/10 Nm | Hub types: A,B,C,F
E-09-C Size: 09 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 1.8/3.6 Nm | Hub types: A,B,C,F
E-09-CC Size: 09 | Elastomer: C yellow 80 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 1.8/3.6 Nm | Hub types: A,B,C,F
E-09-D Size: 09 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-09-DD Size: 09 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-09-E Size: 09 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-09-EE Size: 09 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-12-A Size: 12 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-12-AA Size: 12 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-12-B Size: 12 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 9/18 Nm | Hub types: A,B,C,F
E-12-BB Size: 12 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 9/18 Nm | Hub types: A,B,C,F
E-12-C Size: 12 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 3/6 Nm | Hub types: A,B,C,F
E-12-CC Size: 12 | Elastomer: C yellow 80 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 3/6 Nm | Hub types: A,B,C,F
E-12-D Size: 12 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-12-DD Size: 12 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-12-E Size: 12 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-12-EE Size: 12 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-13-A Size: 13 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 14.5/29 Nm | Hub types: C
E-13-B Size: 13 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 11/22 Nm | Hub types: C
E-13-C Size: 13 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 3.6/7.2 Nm | Hub types: C
E-13-D Size: 13 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 14.5/29 Nm | Hub types: C
E-13-E Size: 13 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 14.5/29 Nm | Hub types: C
E-14-A Size: 14 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-14-AA Size: 14 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-14-B Size: 14 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 12.5/25 Nm | Hub types: A,B,C,DL,DP,F
E-14-BB Size: 14 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 12.5/25 Nm | Hub types: A,B,C,DL,DP,F
E-14-C Size: 14 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 4/8 Nm | Hub types: A,B,C,DL,DP,F
E-14-CC Size: 14 | Elastomer: C yellow 80 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 4/8 Nm | Hub types: A,B,C,DL,DP,F
E-14-D Size: 14 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-14-DD Size: 14 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-14-E Size: 14 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-14-EE Size: 14 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-16-A Size: 16 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 19/38 Nm | Hub types: C
E-16-B Size: 16 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 15/30 Nm | Hub types: C
E-16-C Size: 16 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 5/10 Nm | Hub types: C
E-16-D Size: 16 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 19/38 Nm | Hub types: C
E-16-E Size: 16 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 19/38 Nm | Hub types: C
E-19-A Size: 19 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-AA Size: 19 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-B Size: 19 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 21/42 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-BB Size: 19 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 21/42 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-C Size: 19 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-CC Size: 19 | Elastomer: C yellow 80 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-D Size: 19 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-DD Size: 19 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-E Size: 19 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-EE Size: 19 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-24-A Size: 24 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-AA Size: 24 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-B Size: 24 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 60/120 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-BB Size: 24 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 60/120 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-D Size: 24 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-DD Size: 24 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-E Size: 24 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-EE Size: 24 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-28-A Size: 28 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-AA Size: 28 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-B Size: 28 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 160/320 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-BB Size: 28 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 160/320 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-D Size: 28 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-DD Size: 28 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-E Size: 28 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-EE Size: 28 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-38-A Size: 38 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-AA Size: 38 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-B Size: 38 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 325/650 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-BB Size: 38 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 325/650 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-D Size: 38 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-DD Size: 38 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-E Size: 38 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-EE Size: 38 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-42-A Size: 42 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-AA Size: 42 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-B Size: 42 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 450/900 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-BB Size: 42 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 450/900 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-D Size: 42 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-DD Size: 42 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-E Size: 42 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-EE Size: 42 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-48-A Size: 48 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-48-AA Size: 48 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-48-B Size: 48 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 525/1,050 Nm | Hub types: A,B,DL,DS,DP,N
E-48-BB Size: 48 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 525/1,050 Nm | Hub types: A,B,DL,DS,DP,N
E-48-D Size: 48 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-48-DD Size: 48 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-48-E Size: 48 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-48-EE Size: 48 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-55-A Size: 55 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-55-AA Size: 55 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-55-B Size: 55 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 685/1,370 Nm | Hub types: A,B,DS,DP
E-55-BB Size: 55 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 685/1,370 Nm | Hub types: A,B,DS,DP
E-55-D Size: 55 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-55-DD Size: 55 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-55-E Size: 55 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-55-EE Size: 55 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-65-A Size: 65 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 1,175/2,350 Nm | Hub types: A,B,DS,DP,N
E-65-B Size: 65 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 940/1,880 Nm | Hub types: A,B,DS,DP,N
E-65-D Size: 65 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 1,175/2,350 Nm | Hub types: A,B,DS,DP,N
E-65-E Size: 65 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 1,175/2,350 Nm | Hub types: A,B,DS,DP,N
E-75-A Size: 75 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 2,400/4,800 Nm | Hub types: A,B,DS,DP,N
E-75-B Size: 75 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 1,920/3,840 Nm | Hub types: A,B,DS,DP,N
E-75-D Size: 75 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 2,400/4,800 Nm | Hub types: A,B,DS,DP,N
E-75-E Size: 75 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 2,400/4,800 Nm | Hub types: A,B,DS,DP,N
E-90-A Size: 90 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 4,500/9,000 Nm | Hub types: A,B,DS,DP,N
E-90-B Size: 90 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 3,600/7,200 Nm | Hub types: A,B,DS,DP,N
E-90-D Size: 90 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 4,500/9,000 Nm | Hub types: A,B,DS,DP,N
E-90-E Size: 90 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 4,500/9,000 Nm | Hub types: A,B,DS,DP,N
CouplingsApex Dynamics
125 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics E Elastomer Backlash-Free Servo Couplings (Size 07-90)

Brand Apex Dynamics·Couplings

Available part numbers (125)

E-07-A, E-07-AA, E-07-B, E-07-BB, E-07-C, E-07-CC, E-07-D, E-07-DD, E-07-E, E-07-EE + 115 more — see full table ↓

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E-07-ASize: 07 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-07-AASize: 07 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-07-BSize: 07 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 2/4 Nm | Hub types: A,B,C
E-07-BBSize: 07 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 2/4 Nm | Hub types: A,B,C
E-07-CSize: 07 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 0.7/1.4 Nm | Hub types: A,B,C
E-07-CCSize: 07 | Elastomer: C yellow 80 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 0.7/1.4 Nm | Hub types: A,B,C
E-07-DSize: 07 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-07-DDSize: 07 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-07-ESize: 07 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-07-EESize: 07 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: A,B,C
E-08-ASize: 08 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: C
E-08-BSize: 08 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 2/4 Nm | Hub types: C
E-08-CSize: 08 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 0.7/1.4 Nm | Hub types: C
E-08-DSize: 08 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: C
E-08-ESize: 08 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 2.4/4.8 Nm | Hub types: C
E-09-ASize: 09 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-09-AASize: 09 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-09-BSize: 09 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 5/10 Nm | Hub types: A,B,C,F
E-09-BBSize: 09 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 5/10 Nm | Hub types: A,B,C,F
E-09-CSize: 09 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 1.8/3.6 Nm | Hub types: A,B,C,F
E-09-CCSize: 09 | Elastomer: C yellow 80 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 1.8/3.6 Nm | Hub types: A,B,C,F
E-09-DSize: 09 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-09-DDSize: 09 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-09-ESize: 09 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-09-EESize: 09 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,F
E-12-ASize: 12 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-12-AASize: 12 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-12-BSize: 12 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 9/18 Nm | Hub types: A,B,C,F
E-12-BBSize: 12 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 9/18 Nm | Hub types: A,B,C,F
E-12-CSize: 12 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 3/6 Nm | Hub types: A,B,C,F
E-12-CCSize: 12 | Elastomer: C yellow 80 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 3/6 Nm | Hub types: A,B,C,F
E-12-DSize: 12 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-12-DDSize: 12 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-12-ESize: 12 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-12-EESize: 12 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 12/24 Nm | Hub types: A,B,C,F
E-13-ASize: 13 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 14.5/29 Nm | Hub types: C
E-13-BSize: 13 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 11/22 Nm | Hub types: C
E-13-CSize: 13 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 3.6/7.2 Nm | Hub types: C
E-13-DSize: 13 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 14.5/29 Nm | Hub types: C
E-13-ESize: 13 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 14.5/29 Nm | Hub types: C
E-14-ASize: 14 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-14-AASize: 14 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-14-BSize: 14 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 12.5/25 Nm | Hub types: A,B,C,DL,DP,F
E-14-BBSize: 14 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 12.5/25 Nm | Hub types: A,B,C,DL,DP,F
E-14-CSize: 14 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 4/8 Nm | Hub types: A,B,C,DL,DP,F
E-14-CCSize: 14 | Elastomer: C yellow 80 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 4/8 Nm | Hub types: A,B,C,DL,DP,F
E-14-DSize: 14 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-14-DDSize: 14 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-14-ESize: 14 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-14-EESize: 14 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 16/32 Nm | Hub types: A,B,C,DL,DP,F
E-16-ASize: 16 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 19/38 Nm | Hub types: C
E-16-BSize: 16 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 15/30 Nm | Hub types: C
E-16-CSize: 16 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 5/10 Nm | Hub types: C
E-16-DSize: 16 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 19/38 Nm | Hub types: C
E-16-ESize: 16 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 19/38 Nm | Hub types: C
E-19-ASize: 19 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-AASize: 19 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-BSize: 19 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 21/42 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-BBSize: 19 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 21/42 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-CSize: 19 | Elastomer: C yellow 80 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-CCSize: 19 | Elastomer: C yellow 80 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 6/12 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-DSize: 19 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-DDSize: 19 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-ESize: 19 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-19-EESize: 19 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 26/52 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G,N
E-24-ASize: 24 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-AASize: 24 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-BSize: 24 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 60/120 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-BBSize: 24 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 60/120 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-DSize: 24 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-DDSize: 24 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-ESize: 24 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-24-EESize: 24 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 75/150 Nm | Hub types: A,B,C,DL,DS,DP,E,F,G
E-28-ASize: 28 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-AASize: 28 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-BSize: 28 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 160/320 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-BBSize: 28 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 160/320 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-DSize: 28 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-DDSize: 28 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-ESize: 28 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-28-EESize: 28 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 200/400 Nm | Hub types: A,B,C,DL,DS,DP,E,F,N
E-38-ASize: 38 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-AASize: 38 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-BSize: 38 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 325/650 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-BBSize: 38 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 325/650 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-DSize: 38 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-DDSize: 38 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-ESize: 38 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-38-EESize: 38 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 405/810 Nm | Hub types: A,B,C,DL,DS,DP,E,G,N
E-42-ASize: 42 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-AASize: 42 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-BSize: 42 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 450/900 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-BBSize: 42 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 450/900 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-DSize: 42 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-DDSize: 42 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-ESize: 42 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-42-EESize: 42 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 560/1,120 Nm | Hub types: A,B,DL,DS,DP,E,G
E-48-ASize: 48 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-48-AASize: 48 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-48-BSize: 48 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 525/1,050 Nm | Hub types: A,B,DL,DS,DP,N
E-48-BBSize: 48 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 525/1,050 Nm | Hub types: A,B,DL,DS,DP,N
E-48-DSize: 48 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-48-DDSize: 48 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-48-ESize: 48 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-48-EESize: 48 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 655/1,310 Nm | Hub types: A,B,DL,DS,DP,N
E-55-ASize: 55 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-55-AASize: 55 | Elastomer: A green 64 Sh-D TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-55-BSize: 55 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 685/1,370 Nm | Hub types: A,B,DS,DP
E-55-BBSize: 55 | Elastomer: B red 98 Sh-A TPU | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 685/1,370 Nm | Hub types: A,B,DS,DP
E-55-DSize: 55 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-55-DDSize: 55 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-55-ESize: 55 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-55-EESize: 55 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 2 (Q double-cardanic) | Torque TKN/TKmax: 825/1,650 Nm | Hub types: A,B,DS,DP
E-65-ASize: 65 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 1,175/2,350 Nm | Hub types: A,B,DS,DP,N
E-65-BSize: 65 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 940/1,880 Nm | Hub types: A,B,DS,DP,N
E-65-DSize: 65 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 1,175/2,350 Nm | Hub types: A,B,DS,DP,N
E-65-ESize: 65 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 1,175/2,350 Nm | Hub types: A,B,DS,DP,N
E-75-ASize: 75 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 2,400/4,800 Nm | Hub types: A,B,DS,DP,N
E-75-BSize: 75 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 1,920/3,840 Nm | Hub types: A,B,DS,DP,N
E-75-DSize: 75 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 2,400/4,800 Nm | Hub types: A,B,DS,DP,N
E-75-ESize: 75 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 2,400/4,800 Nm | Hub types: A,B,DS,DP,N
E-90-ASize: 90 | Elastomer: A green 64 Sh-D TPU | Stages: 1 (standard) | Torque TKN/TKmax: 4,500/9,000 Nm | Hub types: A,B,DS,DP,N
E-90-BSize: 90 | Elastomer: B red 98 Sh-A TPU | Stages: 1 (standard) | Torque TKN/TKmax: 3,600/7,200 Nm | Hub types: A,B,DS,DP,N
E-90-DSize: 90 | Elastomer: D black 65 Sh-D TPU conductive | Stages: 1 (standard) | Torque TKN/TKmax: 4,500/9,000 Nm | Hub types: A,B,DS,DP,N
E-90-ESize: 90 | Elastomer: E cream 64 Sh-D Hytrel | Stages: 1 (standard) | Torque TKN/TKmax: 4,500/9,000 Nm | Hub types: A,B,DS,DP,N

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Power Transmission →
