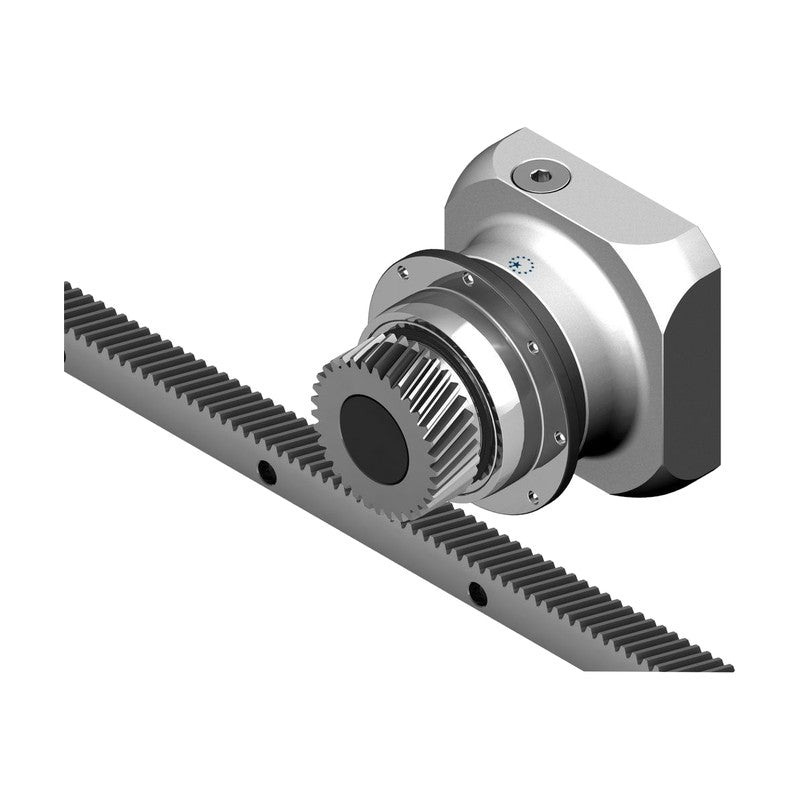

Apex Dynamics L linear drive system for laser cutting machines combines a compact gearbox with an integrated Mn 2 helical pinion (33 or 37 teeth) in ratios 5 and 7, matched to Mn 2 helical racks.

Key features

  • Order code L-<motor shaft 19/22/24>-<ratio 5/7>-<teeth 33/37>, e.g. L-24-5-33
  • Nominal output torque 165 Nm (i=5) / 130 Nm (i=7); acceleration torque 247.5 / 195 Nm
  • Backlash <= 3 arcmin, torsional rigidity 22 Nm/arcmin, efficiency >= 97%
  • Pinion DIN 4 quality alloy steel, left-hand helical, case-hardened and ground
  • Matching racks quality 6 carbon steel, right-hand helical 19 deg 31' 42", induction hardened
  • Motor adapter per motor shaft F7 bore; specify motor make and model when ordering

Specifications

Pinion module Mn 2
Emergency stop torque T2NOT 495 Nm (i=5) / 390 Nm (i=7)
Nominal / max. input speed 3,600 / 6,000 rpm
No-load running torque 0.7 Nm
Service life 20,000 h
Operating temperature -10 to 90 C
Lubrication Synthetic lubrication grease
Mounting position All directions
Running noise <= 59 dB(A)
Inertia 4.52 kg.cm2
Rack-pinion gap 0.038-0.082 mm
Source APEX Dynamics Linear Drive System for Laser Cutting catalog, p. 1-2
L-19-5-33 Component: Gearbox + pinion drive unit | Ratio i: 5 | Pinion teeth: 33 (Mn 2) | Motor shaft: 19 mm | Data: T2N 165 Nm, F2T 6913 N, 4.4 m/s
L-19-5-37 Component: Gearbox + pinion drive unit | Ratio i: 5 | Pinion teeth: 37 (Mn 2) | Motor shaft: 19 mm | Data: T2N 165 Nm, F2T 6172 N, 4.9 m/s
L-19-7-33 Component: Gearbox + pinion drive unit | Ratio i: 7 | Pinion teeth: 33 (Mn 2) | Motor shaft: 19 mm | Data: T2N 130 Nm, F2T 5447 N, 3.1 m/s
L-19-7-37 Component: Gearbox + pinion drive unit | Ratio i: 7 | Pinion teeth: 37 (Mn 2) | Motor shaft: 19 mm | Data: T2N 130 Nm, F2T 4863 N, 3.5 m/s
L-22-5-33 Component: Gearbox + pinion drive unit | Ratio i: 5 | Pinion teeth: 33 (Mn 2) | Motor shaft: 22 mm | Data: T2N 165 Nm, F2T 6913 N, 4.4 m/s
L-22-5-37 Component: Gearbox + pinion drive unit | Ratio i: 5 | Pinion teeth: 37 (Mn 2) | Motor shaft: 22 mm | Data: T2N 165 Nm, F2T 6172 N, 4.9 m/s
L-22-7-33 Component: Gearbox + pinion drive unit | Ratio i: 7 | Pinion teeth: 33 (Mn 2) | Motor shaft: 22 mm | Data: T2N 130 Nm, F2T 5447 N, 3.1 m/s
L-22-7-37 Component: Gearbox + pinion drive unit | Ratio i: 7 | Pinion teeth: 37 (Mn 2) | Motor shaft: 22 mm | Data: T2N 130 Nm, F2T 4863 N, 3.5 m/s
L-24-5-33 Component: Gearbox + pinion drive unit | Ratio i: 5 | Pinion teeth: 33 (Mn 2) | Motor shaft: 24 mm | Data: T2N 165 Nm, F2T 6913 N, 4.4 m/s
L-24-5-37 Component: Gearbox + pinion drive unit | Ratio i: 5 | Pinion teeth: 37 (Mn 2) | Motor shaft: 24 mm | Data: T2N 165 Nm, F2T 6172 N, 4.9 m/s
L-24-7-33 Component: Gearbox + pinion drive unit | Ratio i: 7 | Pinion teeth: 33 (Mn 2) | Motor shaft: 24 mm | Data: T2N 130 Nm, F2T 5447 N, 3.1 m/s
L-24-7-37 Component: Gearbox + pinion drive unit | Ratio i: 7 | Pinion teeth: 37 (Mn 2) | Motor shaft: 24 mm | Data: T2N 130 Nm, F2T 4863 N, 3.5 m/s
026CR050C10 Component: Helical rack Mn 2, ground | Ratio i: - | Pinion teeth: - | Motor shaft: - | Data: L1 500 mm, 75 teeth, sides milled
026CR100C10 Component: Helical rack Mn 2, ground | Ratio i: - | Pinion teeth: - | Motor shaft: - | Data: L1 1000 mm, 150 teeth, sides milled
