Apex Dynamics PA Lubrication Tubes Pre-filled with G01 Grease

Apex Dynamics PA Lubrication Tubes Pre-filled with G01 Grease

PA lubrication tubes pre-filled with G01 standard NLGI 2 grease for Apex Dynamics rack-and-pinion lubrication systems, in 4, 6 and 8 mm diameters.

Key features

  • Supplied pre-filled with G01 standard grease (NLGI grade 2)
  • PTFE-containing grease for high pressure and metal contact
  • Suitable for heavy-duty power transmission systems
  • For use with LUG 400 lubricators and Apex lubrication pinions
  • Operating temperature -40 to +80 °C

Specifications

Material PA (polyamide) tube
Grease G01 standard grease, NLGI 2
Grease temperature range -30 to +140 °C
Tube operating temperature -40 to +80 °C
Max. length 10 m
Source Apex Dynamics Apex Dynamics High Precision Rack and Pinion catalogue, p. 142

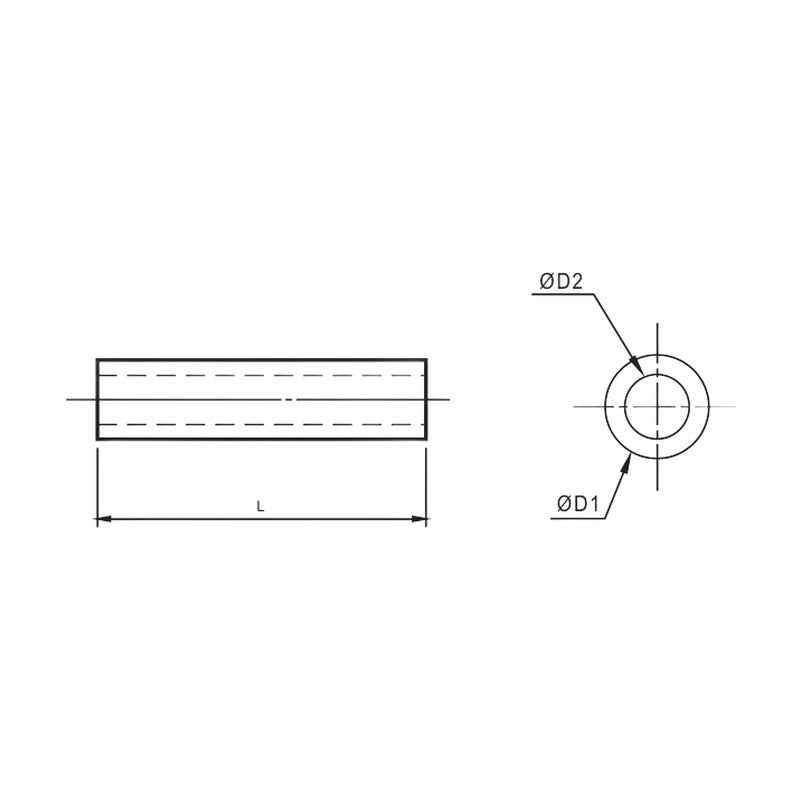

T04-01 Outer dia D1: 4 mm | Inner dia D2: 2.5 mm | Length: 10 m | Pressure: 25 kg/cm²
T06-01 Outer dia D1: 6 mm | Inner dia D2: 4 mm | Length: 10 m | Pressure: 28 kg/cm²
T08-01 Outer dia D1: 8 mm | Inner dia D2: 5 mm | Length: 10 m | Pressure: 28 kg/cm²
Lubrication SystemsApex Dynamics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics PA Lubrication Tubes Pre-filled with G01 Grease

Brand Apex Dynamics·Lubrication Systems

Available part numbers (3)

T04-01, T06-01, T08-01

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
T04-01Outer dia D1: 4 mm | Inner dia D2: 2.5 mm | Length: 10 m | Pressure: 25 kg/cm²
T06-01Outer dia D1: 6 mm | Inner dia D2: 4 mm | Length: 10 m | Pressure: 28 kg/cm²
T08-01Outer dia D1: 8 mm | Inner dia D2: 5 mm | Length: 10 m | Pressure: 28 kg/cm²
