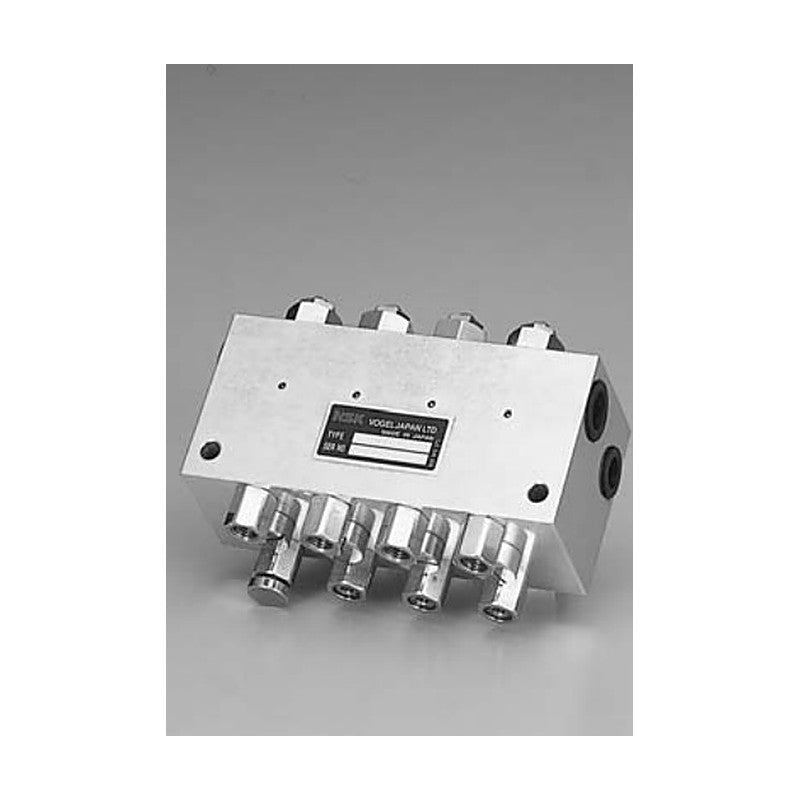

NSK Fine Lube MVF Oil-Air Mixing Valves (MVF1-MVF6)

NSK Fine Lube MVF Oil-Air Mixing Valves (MVF1-MVF6)

NSK Fine Lube MVF mixing valves meter minute oil quantities with built-in piston distributors and mix them with air for oil-air spindle lubrication.

Key features

  • Built-in piston distributors for metered oil discharge
  • Discharge 0.01, 0.03 or 0.06 cm3 per stroke (codes P1, P2, P3)
  • One to six outlets (MVF1 to MVF6)
  • Air bleed plug or button for start-up
  • Used with OAEM pump unit in the Fine Lube system

Specifications

System Fine Lube oil-air lubrication
Outlets 1 - 6
Discharge codes P1 0.01, P2 0.03, P3 0.06 cm3
Oil inlet M10x1 (6 mm pipe)
Source NSK Super Precision Bearings, p. 133
MVF1 Outlets: 1 | L: 42 mm | P: 22 mm | B: 21 mm
MVF2 Outlets: 2 | L: 64 mm | P: 45 mm | B: 21 mm
MVF3 Outlets: 3 | L: 86 mm | P: 70 mm | B: 21 mm
MVF4 Outlets: 4 | L: 108 mm | P: 95 mm | B: 21 mm
MVF5 Outlets: 5 | L: 130 mm | P: 120 mm | B: 21 mm
MVF6 Outlets: 6 | L: 155 mm | P: 145 mm | B: 22.5 mm
LubricatorsNSK
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NSK Fine Lube MVF Oil-Air Mixing Valves (MVF1-MVF6)

Brand NSK·Lubricators

Available part numbers (6)

MVF1, MVF2, MVF3, MVF4, MVF5, MVF6

How to order

Send the NSK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MVF1Outlets: 1 | L: 42 mm | P: 22 mm | B: 21 mm
MVF2Outlets: 2 | L: 64 mm | P: 45 mm | B: 21 mm
MVF3Outlets: 3 | L: 86 mm | P: 70 mm | B: 21 mm
MVF4Outlets: 4 | L: 108 mm | P: 95 mm | B: 21 mm
MVF5Outlets: 5 | L: 130 mm | P: 120 mm | B: 21 mm
MVF6Outlets: 6 | L: 155 mm | P: 145 mm | B: 22.5 mm
