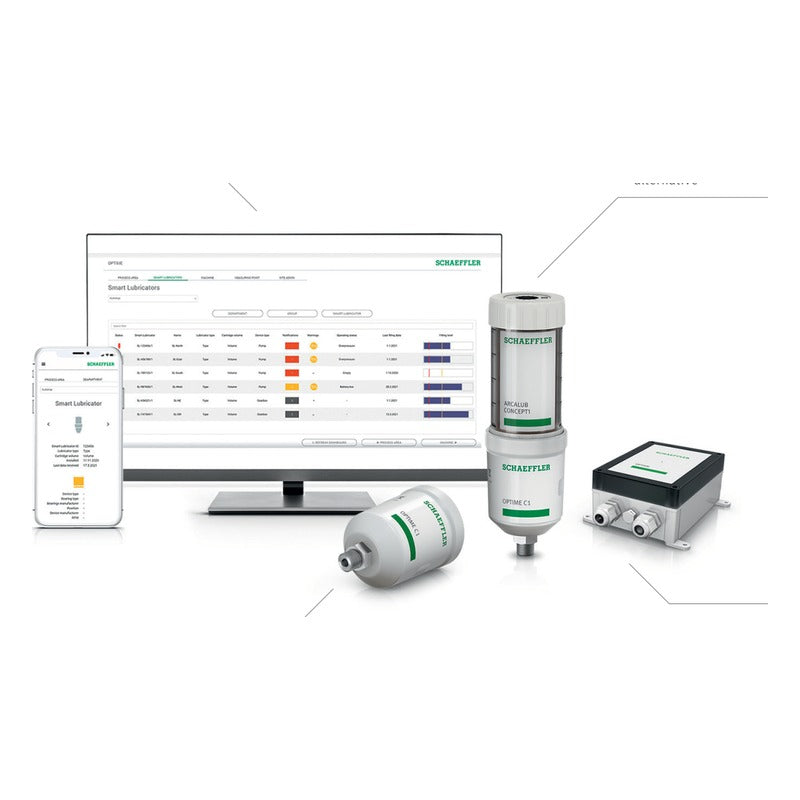

Schaeffler OPTIME C1 Smart Lubricator

The Schaeffler OPTIME C1 is a smart, wirelessly connected lubricator using CONCEPT1 cartridges, reporting fill level and alarms to the OPTIME app and dashboard via a gateway.

Key features

NFC plug-and-play commissioning
Wirepas mesh communication, range up to 100 m
Electrical pump with up to 10 bar pressure
Compatible with CONCEPT1 cartridges (60/125 cm3)
Replaceable battery; alerts via app or web dashboard

Specifications

Operating pressure	<10 bar
Metering	0.5 cm3 per interval
Dispensing time	1-12 months
Thread	G1/4
Protection class	IP68
Operating temperature	-10 to +55 C
Source	Schaeffler OPTIME C1 brochure, p. 10-12

OPTIME C1

Lubricant volume: 60 or 125 cm3 | Metering per day: 0.17-8.3 cm3 | Power: Battery pack 6 V 2.3 Ah | Mass: 0.25 kg

LubricatorsSchaeffler

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Schaeffler OPTIME C1 Smart Lubricator

Brand Schaeffler·Lubricators

Available part numbers (1)

OPTIME C1

How to order

Send the Schaeffler part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
