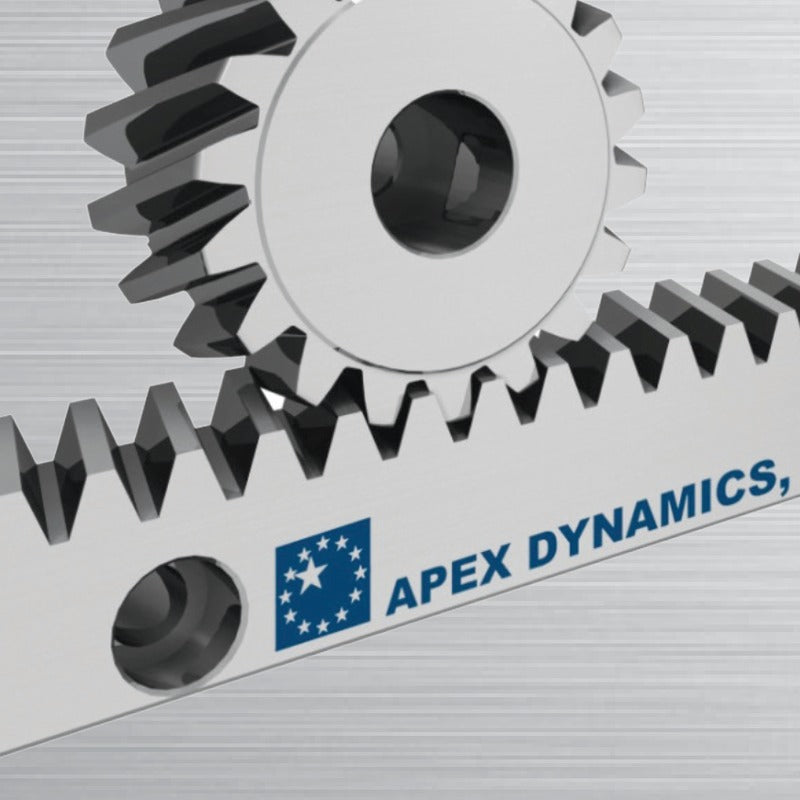

Quality 5H straight-tooth racks in case-hardened alloy steel with ground teeth and all sides ground, in lengths of approx. 1 m.

Key features

  • DIN quality 5H tooth accuracy
  • Alloy steel, case-hardened
  • Teeth ground and all sides ground
  • Tooth thickness tolerance -15 to 0 µm
  • Straight (spur) teeth

Specifications

Quality 5H
Material Alloy steel, case-hardened
Tooth form Straight
Tooth thickness tolerance -15 to 0 µm
Finish Teeth and all sides ground
Module range 2 - 10
Source Apex Dynamics Apex Dynamics High Precision Rack and Pinion catalogue, p. 67
025H1100M10 Module: 2 | Length L1: 1005.31 mm | Teeth: 160 | B x H: 24 x 24 mm | Fp: 0.024 mm
035H1100M10 Module: 3 | Length L1: 1017.88 mm | Teeth: 108 | B x H: 29 x 29 mm | Fp: 0.026 mm
045H1100M10 Module: 4 | Length L1: 1005.31 mm | Teeth: 80 | B x H: 39 x 39 mm | Fp: 0.028 mm
055H1100M10 Module: 5 | Length L1: 1005.31 mm | Teeth: 64 | B x H: 49 x 49 mm | Fp: 0.028 mm
065H1100M10 Module: 6 | Length L1: 1017.88 mm | Teeth: 54 | B x H: 59 x 59 mm | Fp: 0.028 mm
085H1100M10 Module: 8 | Length L1: 1005.31 mm | Teeth: 40 | B x H: 79 x 79 mm | Fp: 0.031 mm
105H1100M10 Module: 10 | Length L1: 1005.31 mm | Teeth: 32 | B x H: 99 x 99 mm | Fp: 0.031 mm
