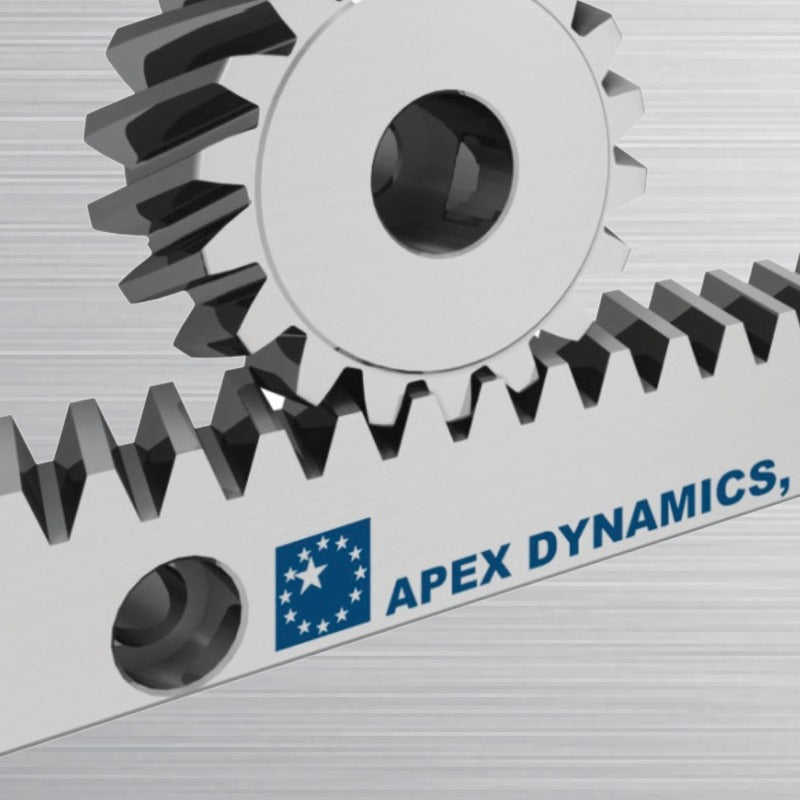

Apex Dynamics Straight Teeth Racks Q6C Carbon Steel (Module 1-4)

Apex Dynamics Straight Teeth Racks Q6C Carbon Steel (Module 1-4)

Quality 6C straight-tooth racks in normalized carbon steel with ground teeth and milled sides, in 500 mm and 1,000 mm nominal lengths.

Key features

  • DIN quality 6C tooth accuracy
  • Carbon steel, normalizing heat treatment
  • Teeth ground, all sides milled
  • Tooth thickness tolerance -22 to 0 µm
  • Modules 1, 2, 3 and 4

Specifications

Quality 6C
Material Carbon steel, normalized
Tooth form Straight
Tooth thickness tolerance -22 to 0 µm
Finish Teeth ground, all sides milled
Module range 1 - 4
Source Apex Dynamics Apex Dynamics High Precision Rack and Pinion catalogue, p. 73
016C1050C10 Module: 1 | Length L1: 502.66 mm | Teeth: 160 | B x H: 15 x 15 mm | Fp: 0.029 mm
016C1100C10 Module: 1 | Length L1: 1005.31 mm | Teeth: 320 | B x H: 15 x 15 mm | Fp: 0.033 mm
026C1050C10 Module: 2 | Length L1: 502.66 mm | Teeth: 80 | B x H: 24 x 24 mm | Fp: 0.029 mm
026C1100C10 Module: 2 | Length L1: 1005.31 mm | Teeth: 160 | B x H: 24 x 24 mm | Fp: 0.034 mm
036C1050C10 Module: 3 | Length L1: 508.94 mm | Teeth: 54 | B x H: 29 x 29 mm | Fp: 0.032 mm
036C1100C10 Module: 3 | Length L1: 1017.88 mm | Teeth: 108 | B x H: 29 x 29 mm | Fp: 0.037 mm
046C1050C10 Module: 4 | Length L1: 502.66 mm | Teeth: 40 | B x H: 39 x 39 mm | Fp: 0.034 mm
046C1100C10 Module: 4 | Length L1: 1005.31 mm | Teeth: 80 | B x H: 39 x 39 mm | Fp: 0.04 mm
Racks & PinionsApex Dynamics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics Straight Teeth Racks Q6C Carbon Steel (Module 1-4)

Brand Apex Dynamics·Racks & Pinions

Available part numbers (8)

016C1050C10, 016C1100C10, 026C1050C10, 026C1100C10, 036C1050C10, 036C1100C10, 046C1050C10, 046C1100C10
