Apex Dynamics Helical Racks Q5 Alloy Steel (Module 2-3)

Apex Dynamics Helical Racks Q5 Alloy Steel (Module 2-3)

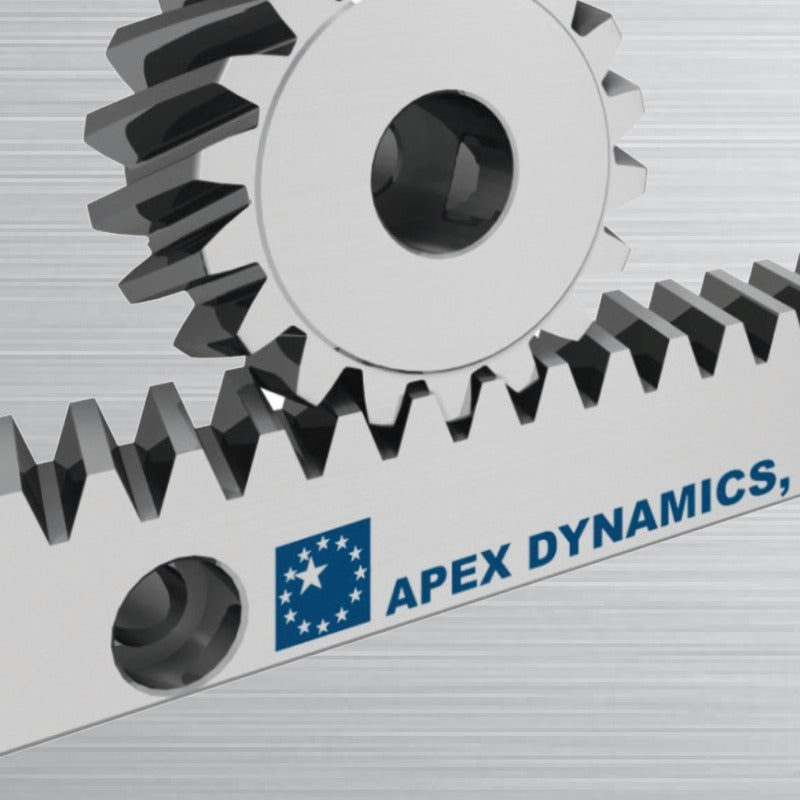

Quality 5 right-hand helical racks in alloy steel, carburized and induction hardened, with ground teeth and all sides ground, in lengths of 500 to 2,000 mm.

Key features

  • DIN quality 5 tooth accuracy
  • Alloy steel, carburized and induction hardened
  • Teeth ground and all sides ground
  • Tooth thickness tolerance -15 to 0 µm
  • Lengths 500, 1000, 1250, 1500, 1750 and 2000 mm
  • Right-hand helical teeth, 19° 31' 42" helix angle

Specifications

Quality 5
Material Alloy steel, carburized, induction hardened
Tooth form Helical
Helix angle 19° 31' 42" right-hand
Tooth thickness tolerance -15 to 0 µm
Finish Teeth and all sides ground
Module range 2 - 3
Source Apex Dynamics Apex Dynamics High Precision Rack and Pinion catalogue, p. 19
0205R050M10 Module: 2 | Length L1: 500 mm | Teeth: 75 | B x H: 24 x 24 mm | Fp: 0.021 mm
0205R100M10 Module: 2 | Length L1: 1000 mm | Teeth: 150 | B x H: 24 x 24 mm | Fp: 0.024 mm
0205R125M10 Module: 2 | Length L1: 1246.67 mm | Teeth: 187 | B x H: 24 x 24 mm | Fp: 0.024 mm
0205R150M10 Module: 2 | Length L1: 1500 mm | Teeth: 225 | B x H: 24 x 24 mm | Fp: 0.024 mm
0205R175M10 Module: 2 | Length L1: 1746.67 mm | Teeth: 262 | B x H: 24 x 24 mm | Fp: 0.024 mm
0205R200M10 Module: 2 | Length L1: 2000 mm | Teeth: 300 | B x H: 24 x 24 mm | Fp: 0.027 mm
2J05R050M10 Module: 2.5 | Length L1: 500 mm | Teeth: 60 | B x H: 29 x 29 mm | Fp: 0.023 mm
2J05R100M10 Module: 2.5 | Length L1: 1000 mm | Teeth: 120 | B x H: 29 x 29 mm | Fp: 0.026 mm
2J05R125M10 Module: 2.5 | Length L1: 1250 mm | Teeth: 150 | B x H: 29 x 29 mm | Fp: 0.026 mm
2J05R150M10 Module: 2.5 | Length L1: 1500 mm | Teeth: 180 | B x H: 29 x 29 mm | Fp: 0.026 mm
2J05R175M10 Module: 2.5 | Length L1: 1750 mm | Teeth: 210 | B x H: 29 x 29 mm | Fp: 0.026 mm
2J05R200M10 Module: 2.5 | Length L1: 2000 mm | Teeth: 240 | B x H: 29 x 29 mm | Fp: 0.029 mm
0305R050M10 Module: 3 | Length L1: 500 mm | Teeth: 50 | B x H: 29 x 29 mm | Fp: 0.023 mm
0305R100M10 Module: 3 | Length L1: 1000 mm | Teeth: 100 | B x H: 29 x 29 mm | Fp: 0.026 mm
0305R125M10 Module: 3 | Length L1: 1250 mm | Teeth: 125 | B x H: 29 x 29 mm | Fp: 0.026 mm
0305R150M10 Module: 3 | Length L1: 1500 mm | Teeth: 150 | B x H: 29 x 29 mm | Fp: 0.026 mm
0305R175M10 Module: 3 | Length L1: 1750 mm | Teeth: 175 | B x H: 29 x 29 mm | Fp: 0.026 mm
0305R200M10 Module: 3 | Length L1: 2000 mm | Teeth: 200 | B x H: 29 x 29 mm | Fp: 0.03 mm
