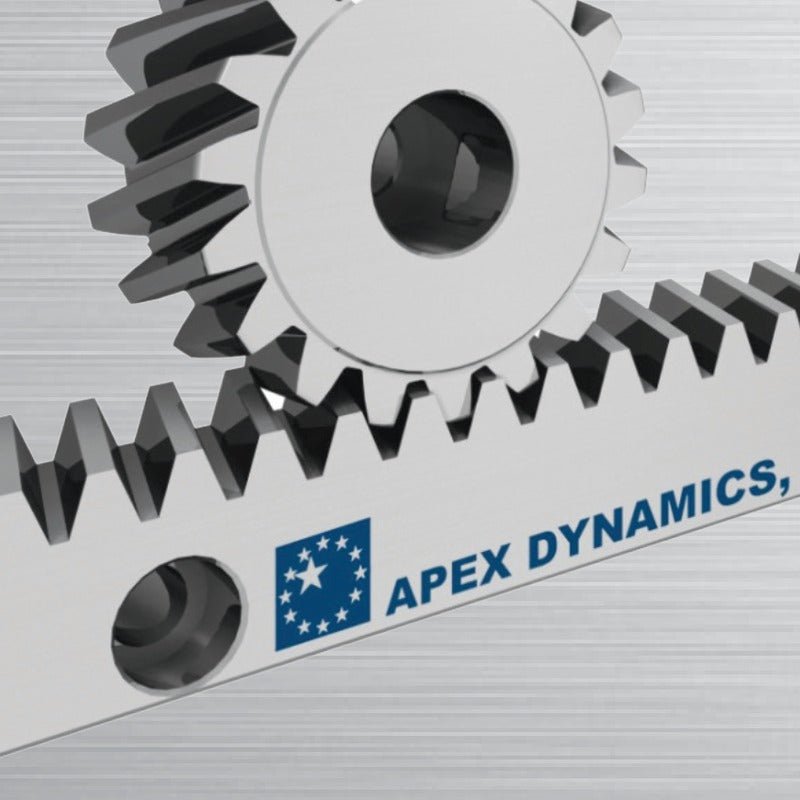

Apex Dynamics Straight Teeth Racks Q5 Alloy Steel (Module 2-3)

Apex Dynamics Straight Teeth Racks Q5 Alloy Steel (Module 2-3)

Quality 5 straight-tooth racks in carburized, induction-hardened alloy steel with ground teeth and all sides ground, in 250, 500 and 1,000 mm nominal lengths.

Key features

  • DIN quality 5 tooth accuracy
  • Alloy steel, carburized and induction hardened
  • Teeth ground and all sides ground
  • Tooth thickness tolerance -15 to 0 µm
  • Straight (spur) teeth

Specifications

Quality 5
Material Alloy steel, carburized, induction hardened
Tooth form Straight
Tooth thickness tolerance -15 to 0 µm
Finish Teeth and all sides ground
Module range 2 - 3
Source Apex Dynamics Apex Dynamics High Precision Rack and Pinion catalogue, p. 68
02051025M10 Module: 2 | Length L1: 251.33 mm | Teeth: 40 | B x H: 24 x 24 mm | Fp: 0.018 mm
02051050M10 Module: 2 | Length L1: 502.66 mm | Teeth: 80 | B x H: 24 x 24 mm | Fp: 0.021 mm
02051100M10 Module: 2 | Length L1: 1005.31 mm | Teeth: 160 | B x H: 24 x 24 mm | Fp: 0.024 mm
03051025M10 Module: 3 | Length L1: 254.47 mm | Teeth: 27 | B x H: 29 x 29 mm | Fp: 0.019 mm
03051050M10 Module: 3 | Length L1: 508.94 mm | Teeth: 54 | B x H: 29 x 29 mm | Fp: 0.023 mm
03051100M10 Module: 3 | Length L1: 1017.88 mm | Teeth: 108 | B x H: 29 x 29 mm | Fp: 0.026 mm
Racks & PinionsApex Dynamics
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Apex Dynamics Straight Teeth Racks Q5 Alloy Steel (Module 2-3)

Brand Apex Dynamics·Racks & Pinions

Available part numbers (6)

02051025M10, 02051050M10, 02051100M10, 03051025M10, 03051050M10, 03051100M10

How to order

Send the Apex Dynamics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
02051025M10Module: 2 | Length L1: 251.33 mm | Teeth: 40 | B x H: 24 x 24 mm | Fp: 0.018 mm
02051050M10Module: 2 | Length L1: 502.66 mm | Teeth: 80 | B x H: 24 x 24 mm | Fp: 0.021 mm
02051100M10Module: 2 | Length L1: 1005.31 mm | Teeth: 160 | B x H: 24 x 24 mm | Fp: 0.024 mm
03051025M10Module: 3 | Length L1: 254.47 mm | Teeth: 27 | B x H: 29 x 29 mm | Fp: 0.019 mm
03051050M10Module: 3 | Length L1: 508.94 mm | Teeth: 54 | B x H: 29 x 29 mm | Fp: 0.023 mm
03051100M10Module: 3 | Length L1: 1017.88 mm | Teeth: 108 | B x H: 29 x 29 mm | Fp: 0.026 mm
