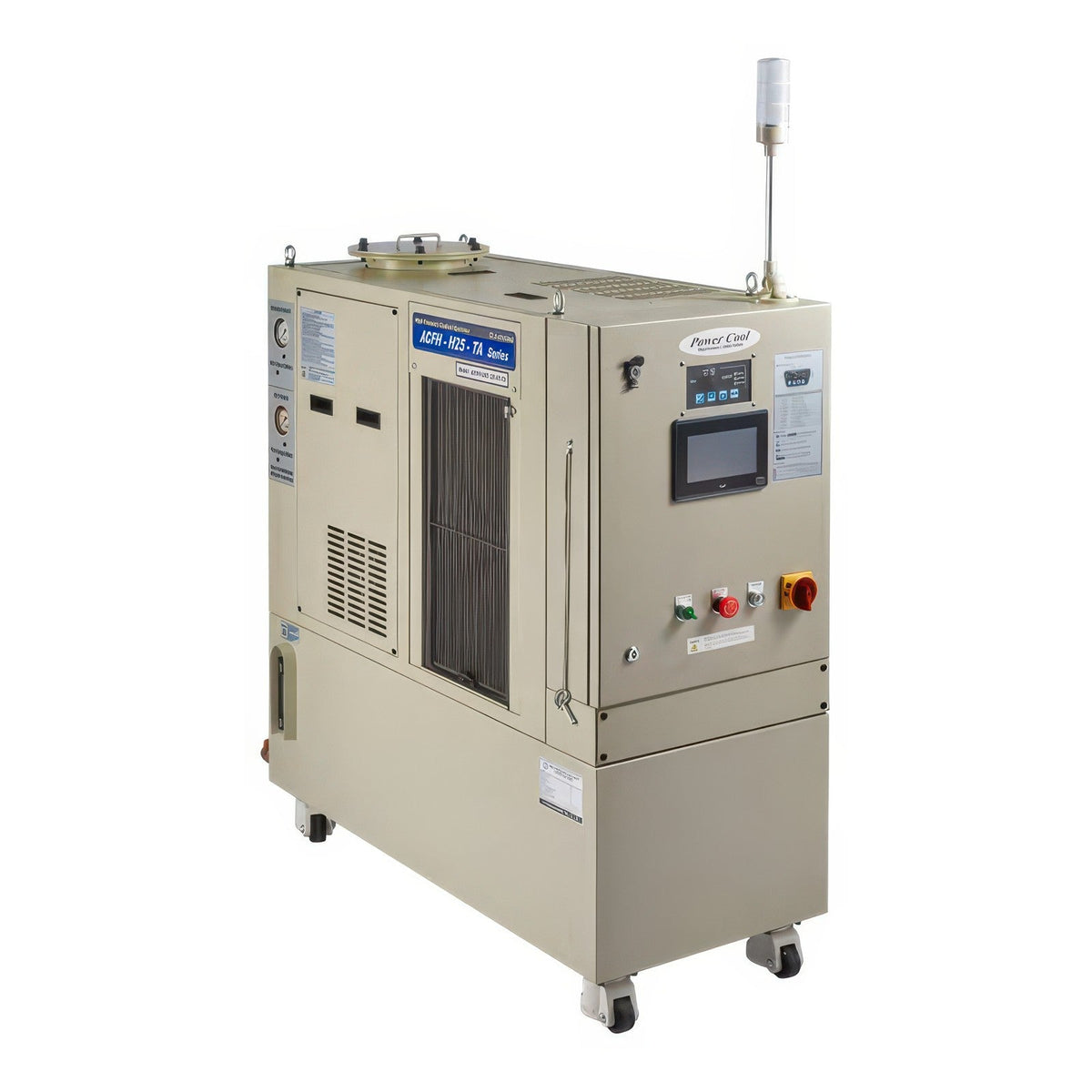

Aryung ACFH-H25-CTA High Pressure Coolant System with Built-in Oil Cooler (50-120 bar)

Aryung ACFH-H25-CTA High Pressure Coolant System with Built-in Oil Cooler (50-120 bar)

The ACFH-H25-CTA is an all-in-one cabinet unit combining a high pressure coolant system and an oil cooler for non-water-soluble (oil) coolant.

Key features

  • A quiet helical rotor pump, bag filter (25/50 um), shock-relief bypass valve and 3-6 discharge solenoid valves are standard
  • The clean tank has a built-in refrigeration cooler (R-410A) and heater to keep coolant temperature optimal, controlled by a precision digital controller
  • A PLC controller with PC-based touch screen handles automatic level management and alarm display
  • Built-in feed pump, 250 bar discharge gauge, float switch, external relief valve (10-150 bar), interface connector, warning light and casters

Specifications

High pressure pump H25 helical rotor pump
Max flow 50/60Hz 21 / 25 L/min
Filter Bag 25 / 50 um
Oil cooler DOC-450-SH 3870 / 4560 W (50/60 Hz), R-410A, 2 kW heater
Supply pump PA630 950 W (standard, optional without)
Discharge outlet Rc 3/8" x JIS 3/8"
Operating temperature 5-45 °C
Operation display Touch screen
Noise under 80 dB(A)
Aryung ACFH-H25-CTA High Pressure Coolant System with Built-in Oil Cooler (50-120 bar) reference 2
ACFH-H25-50-CTA With built-in oil cooler | High pressure pump: H25 helical rotor pump | Max pressure: 50 bar (5.0 MPa) | Max flow 50/60Hz: 21 / 25 L/min | Motor: 3.7 kW 3-phase 4P | Clean tank: 100 L | Relief valve range: 10-100 bar | Filter: Bag 25 / 50 um | Oil cooler: DOC-450-SH 3870 / 4560 W (50/60 Hz), R-410A, 2 kW heater | Supply pump: PA630 950 W (standard, optional without) | Discharge outlet: Rc 3/8" x JIS 3/8" | Operating temperature: 5-45 °C | Operation display: Touch screen | Noise: under 80 dB(A)
ACFH-H25-70-CTA With built-in oil cooler | High pressure pump: H25 helical rotor pump | Max pressure: 70 bar (7.0 MPa) | Max flow 50/60Hz: 21 / 25 L/min | Motor: 5.5 kW 3-phase 4P | Clean tank: 100 L | Relief valve range: 10-100 bar | Filter: Bag 25 / 50 um | Oil cooler: DOC-450-SH 3870 / 4560 W (50/60 Hz), R-410A, 2 kW heater | Supply pump: PA630 950 W (standard, optional without) | Discharge outlet: Rc 3/8" x JIS 3/8" | Operating temperature: 5-45 °C | Operation display: Touch screen | Noise: under 80 dB(A)
ACFH-H25-120-CTA With built-in oil cooler | High pressure pump: H25 helical rotor pump | Max pressure: 120 bar (12.0 MPa) | Max flow 50/60Hz: 21 / 25 L/min | Motor: 5.5 kW 3-phase 4P | Clean tank: 140 L | Relief valve range: 10-150 bar | Filter: Bag 25 / 50 um | Oil cooler: DOC-450-SH 3870 / 4560 W (50/60 Hz), R-410A, 2 kW heater | Supply pump: PA630 950 W (standard, optional without) | Discharge outlet: Rc 3/8" x JIS 3/8" | Operating temperature: 5-45 °C | Operation display: Touch screen | Noise: under 80 dB(A)
High Pressure Coolant SystemsAryung
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung ACFH-H25-CTA High Pressure Coolant System with Built-in Oil Cooler (50-120 bar)

Brand Aryung·High Pressure Coolant Systems

Available part numbers (3)

ACFH-H25-50-CTA, ACFH-H25-70-CTA, ACFH-H25-120-CTA

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung ACFH-H25-CTA High Pressure Coolant System with Built-in Oil Cooler (50-120 bar) reference 2
0 selected
RFQ List (0)
Product codeSpec
ACFH-H25-50-CTAWith built-in oil cooler | High pressure pump: H25 helical rotor pump | Max pressure: 50 bar (5.0 MPa) | Max flow 50/60Hz: 21 / 25 L/min | Motor: 3.7 kW 3-phase 4P | Clean tank: 100 L | Relief valve range: 10-100 bar | Filter: Bag 25 / 50 um | Oil cooler: DOC-450-SH 3870 / 4560 W (50/60 Hz), R-410A, 2 kW heater | Supply pump: PA630 950 W (standard, optional without) | Discharge outlet: Rc 3/8" x JIS 3/8" | Operating temperature: 5-45 °C | Operation display: Touch screen | Noise: under 80 dB(A)
ACFH-H25-70-CTAWith built-in oil cooler | High pressure pump: H25 helical rotor pump | Max pressure: 70 bar (7.0 MPa) | Max flow 50/60Hz: 21 / 25 L/min | Motor: 5.5 kW 3-phase 4P | Clean tank: 100 L | Relief valve range: 10-100 bar | Filter: Bag 25 / 50 um | Oil cooler: DOC-450-SH 3870 / 4560 W (50/60 Hz), R-410A, 2 kW heater | Supply pump: PA630 950 W (standard, optional without) | Discharge outlet: Rc 3/8" x JIS 3/8" | Operating temperature: 5-45 °C | Operation display: Touch screen | Noise: under 80 dB(A)
ACFH-H25-120-CTAWith built-in oil cooler | High pressure pump: H25 helical rotor pump | Max pressure: 120 bar (12.0 MPa) | Max flow 50/60Hz: 21 / 25 L/min | Motor: 5.5 kW 3-phase 4P | Clean tank: 140 L | Relief valve range: 10-150 bar | Filter: Bag 25 / 50 um | Oil cooler: DOC-450-SH 3870 / 4560 W (50/60 Hz), R-410A, 2 kW heater | Supply pump: PA630 950 W (standard, optional without) | Discharge outlet: Rc 3/8" x JIS 3/8" | Operating temperature: 5-45 °C | Operation display: Touch screen | Noise: under 80 dB(A)
