Samjung Pump Double Suction Volute (Split Case) Pump SJCB Series

Samjung Pump Double Suction Volute (Split Case) Pump SJCB Series

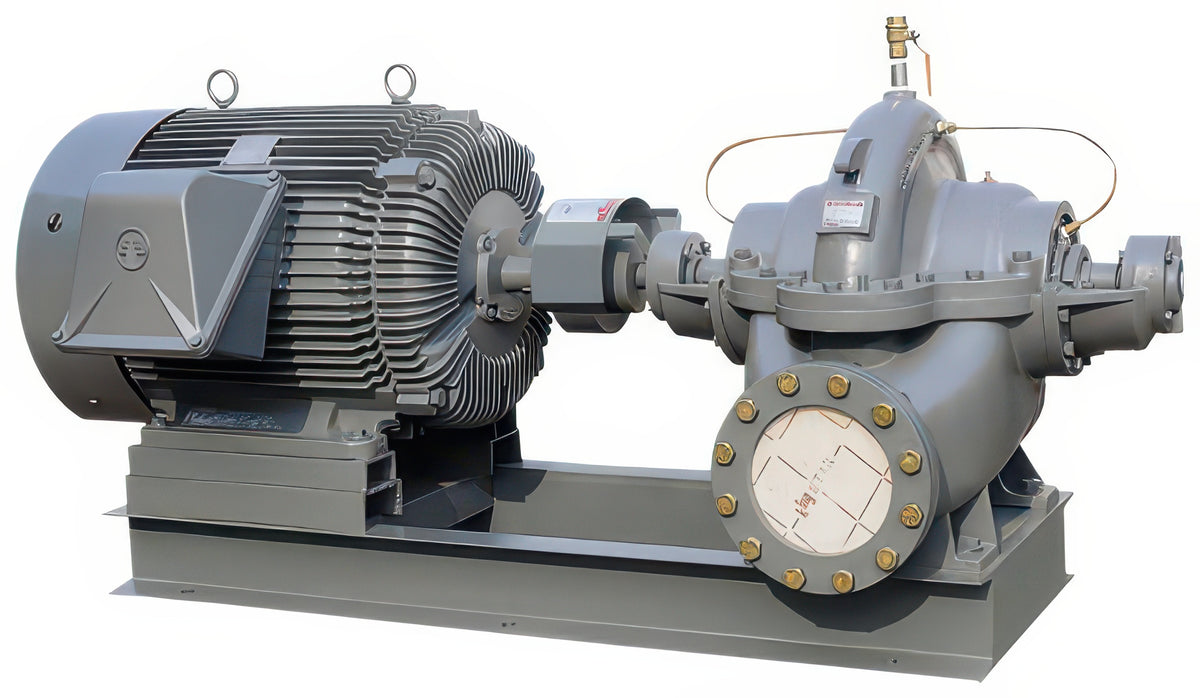

Horizontal axially split double-suction volute pump for large flows.

Key features

  • Double-entry impellers cancel axial thrust, and the hydraulic design minimizes vibration and noise for long, stable running
  • The upper casing can be removed for inspection without disturbing piping or motor
  • Max capacity 30 m3/min and max head 150 m, liquid up to 80 C, 1750 or 1150 rpm
  • Used for cooling water, hot and cold circulation, water supply, irrigation, drainage, fire fighting, power plants and treatment plants

Specifications

Power 3-phase 60 Hz
Flange RF (KS B 1511, 10K)
SJCB 150-250 Discharge Bore (mm): 150 | Impeller Dia. (mm): 250 | 4P 1750 rpm Flow (m3/min): 4.2 | 4P Head (m): 27 | 4P Motor (HP): 40 | 4P Weight (kg): 530 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-280 Discharge Bore (mm): 150 | Impeller Dia. (mm): 280 | 6P 1150 rpm Flow (m3/min): 4.7 | 6P Head (m): 12 | 6P Motor (HP): 20 | 6P Weight (kg): 527 | 4P 1750 rpm Flow (m3/min): 7.5 | 4P Head (m): 26 | 4P Motor (HP): 60 | 4P Weight (kg): 648 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-310 Discharge Bore (mm): 150 | Impeller Dia. (mm): 310 | 4P 1750 rpm Flow (m3/min): 4.6 | 4P Head (m): 43 | 4P Motor (HP): 60 | 4P Weight (kg): 660 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-340 Discharge Bore (mm): 150 | Impeller Dia. (mm): 340 | 6P 1150 rpm Flow (m3/min): 5.8 | 6P Head (m): 22 | 6P Motor (HP): 40 | 6P Weight (kg): 672 | 4P 1750 rpm Flow (m3/min): 8.7 | 4P Head (m): 50 | 4P Motor (HP): 125 | 4P Weight (kg): 940 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-400 Discharge Bore (mm): 150 | Impeller Dia. (mm): 400 | 6P 1150 rpm Flow (m3/min): 6.5 | 6P Head (m): 33 | 6P Motor (HP): 60 | 6P Weight (kg): 783 | 4P 1750 rpm Flow (m3/min): 9.5 | 4P Head (m): 75 | 4P Motor (HP): 215 | 4P Weight (kg): 1388 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-430 Discharge Bore (mm): 150 | Impeller Dia. (mm): 430 | 6P 1150 rpm Flow (m3/min): 2.9 | 6P Head (m): 37 | 6P Motor (HP): 40 | 6P Weight (kg): 750 | 4P 1750 rpm Flow (m3/min): 4.3 | 4P Head (m): 82 | 4P Motor (HP): 125 | 4P Weight (kg): 1018 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-500 Discharge Bore (mm): 150 | Impeller Dia. (mm): 500 | 6P 1150 rpm Flow (m3/min): 5.3 | 6P Head (m): 53 | 6P Motor (HP): 100 | 6P Weight (kg): 1108 | 4P 1750 rpm Flow (m3/min): 8.4 | 4P Head (m): 122 | 4P Motor (HP): 300 | 4P Weight (kg): 2058 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 200-280 Discharge Bore (mm): 200 | Impeller Dia. (mm): 280 | 6P 1150 rpm Flow (m3/min): 7.2 | 6P Head (m): 12 | 6P Motor (HP): 25 | 6P Weight (kg): 641 | 4P 1750 rpm Flow (m3/min): 10.8 | 4P Head (m): 27 | 4P Motor (HP): 100 | 4P Weight (kg): 970 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 200-340 Discharge Bore (mm): 200 | Impeller Dia. (mm): 340 | 6P 1150 rpm Flow (m3/min): 8.2 | 6P Head (m): 18 | 6P Motor (HP): 50 | 6P Weight (kg): 798 | 4P 1750 rpm Flow (m3/min): 12.0 | 4P Head (m): 41 | 4P Motor (HP): 150 | 4P Weight (kg): 1206 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 200-400 Discharge Bore (mm): 200 | Impeller Dia. (mm): 400 | 6P 1150 rpm Flow (m3/min): 7.5 | 6P Head (m): 30 | 6P Motor (HP): 60 | 6P Weight (kg): 927 | 4P 1750 rpm Flow (m3/min): 11.3 | 4P Head (m): 69 | 4P Motor (HP): 215 | 4P Weight (kg): 1532 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 200-500 Discharge Bore (mm): 200 | Impeller Dia. (mm): 500 | 6P 1150 rpm Flow (m3/min): 7.5 | 6P Head (m): 54 | 6P Motor (HP): 125 | 6P Weight (kg): 1416 | 4P 1750 rpm Flow (m3/min): 12.0 | 4P Head (m): 122 | 4P Motor (HP): 450 | 4P Weight (kg): 2226 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 200-620 Discharge Bore (mm): 200 | Impeller Dia. (mm): 620 | 6P 1150 rpm Flow (m3/min): 7.0 | 6P Head (m): 75 | 6P Motor (HP): 175 | 6P Weight (kg): 1898 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 250-280 Discharge Bore (mm): 250 | Impeller Dia. (mm): 280 | 6P 1150 rpm Flow (m3/min): 12.0 | 6P Head (m): 11 | 6P Motor (HP): 40 | 6P Weight (kg): 954 | 4P 1750 rpm Flow (m3/min): 17.5 | 4P Head (m): 24 | 4P Motor (HP): 125 | 4P Weight (kg): 1222 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 250-340 Discharge Bore (mm): 250 | Impeller Dia. (mm): 340 | 6P 1150 rpm Flow (m3/min): 12.5 | 6P Head (m): 19 | 6P Motor (HP): 60 | 6P Weight (kg): 1071 | 4P 1750 rpm Flow (m3/min): 18.3 | 4P Head (m): 42 | 4P Motor (HP): 215 | 4P Weight (kg): 1676 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 250-400 Discharge Bore (mm): 250 | Impeller Dia. (mm): 400 | 6P 1150 rpm Flow (m3/min): 12.3 | 6P Head (m): 33 | 6P Motor (HP): 125 | 6P Weight (kg): 1494 | 4P 1750 rpm Flow (m3/min): 18.3 | 4P Head (m): 77 | 4P Motor (HP): 400 | 4P Weight (kg): 2304 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 250-500 Discharge Bore (mm): 250 | Impeller Dia. (mm): 500 | 6P 1150 rpm Flow (m3/min): 14.2 | 6P Head (m): 55 | 6P Motor (HP): 215 | 6P Weight (kg): 1934 | 4P 1750 rpm Flow (m3/min): 20.8 | 4P Head (m): 125 | 4P Motor (HP): 750 | 4P Weight (kg): 2984 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 250-620 Discharge Bore (mm): 250 | Impeller Dia. (mm): 620 | 6P 1150 rpm Flow (m3/min): 12.5 | 6P Head (m): 85 | 6P Motor (HP): 350 | 6P Weight (kg): 2760 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 300-280 Discharge Bore (mm): 300 | Impeller Dia. (mm): 280 | 6P 1150 rpm Flow (m3/min): 15.6 | 6P Head (m): 9 | 6P Motor (HP): 40 | 6P Weight (kg): 1272 | 4P 1750 rpm Flow (m3/min): 23.3 | 4P Head (m): 20 | 4P Motor (HP): 150 | 4P Weight (kg): 1680 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 300-340 Discharge Bore (mm): 300 | Impeller Dia. (mm): 340 | 6P 1150 rpm Flow (m3/min): 16.5 | 6P Head (m): 15 | 6P Motor (HP): 75 | 6P Weight (kg): 1552 | 4P 1750 rpm Flow (m3/min): 24.2 | 4P Head (m): 32 | 4P Motor (HP): 260 | 4P Weight (kg): 2012 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 300-400 Discharge Bore (mm): 300 | Impeller Dia. (mm): 400 | 6P 1150 rpm Flow (m3/min): 14.2 | 6P Head (m): 28 | 6P Motor (HP): 125 | 6P Weight (kg): 1854 | 4P 1750 rpm Flow (m3/min): 20.8 | 4P Head (m): 65 | 4P Motor (HP): 400 | 4P Weight (kg): 2664 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 300-500 Discharge Bore (mm): 300 | Impeller Dia. (mm): 500 | 6P 1150 rpm Flow (m3/min): 18.3 | 6P Head (m): 45 | 6P Motor (HP): 215 | 6P Weight (kg): 2336 | 4P 1750 rpm Flow (m3/min): 28.3 | 4P Head (m): 105 | 4P Motor (HP): 800 | 4P Weight (kg): 3386 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 300-620 Discharge Bore (mm): 300 | Impeller Dia. (mm): 620 | 6P 1150 rpm Flow (m3/min): 19.2 | 6P Head (m): 80 | 6P Motor (HP): 450 | 6P Weight (kg): 3234 | 4P 1750 rpm Flow (m3/min): 25.8 | 4P Head (m): 140 | 4P Motor (HP): 1000 | 4P Weight (kg): 3734 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
Centrifugal PumpsSamjung Pump
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samjung Pump Double Suction Volute (Split Case) Pump SJCB Series

Brand Samjung Pump·Centrifugal Pumps

Available part numbers (22)

SJCB 150-250, SJCB 150-280, SJCB 150-310, SJCB 150-340, SJCB 150-400, SJCB 150-430, SJCB 150-500, SJCB 200-280, SJCB 200-340, SJCB 200-400 + 12 more — see full table ↓

How to order

Send the Samjung Pump part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SJCB 150-250Discharge Bore (mm): 150 | Impeller Dia. (mm): 250 | 4P 1750 rpm Flow (m3/min): 4.2 | 4P Head (m): 27 | 4P Motor (HP): 40 | 4P Weight (kg): 530 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-280Discharge Bore (mm): 150 | Impeller Dia. (mm): 280 | 6P 1150 rpm Flow (m3/min): 4.7 | 6P Head (m): 12 | 6P Motor (HP): 20 | 6P Weight (kg): 527 | 4P 1750 rpm Flow (m3/min): 7.5 | 4P Head (m): 26 | 4P Motor (HP): 60 | 4P Weight (kg): 648 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-310Discharge Bore (mm): 150 | Impeller Dia. (mm): 310 | 4P 1750 rpm Flow (m3/min): 4.6 | 4P Head (m): 43 | 4P Motor (HP): 60 | 4P Weight (kg): 660 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-340Discharge Bore (mm): 150 | Impeller Dia. (mm): 340 | 6P 1150 rpm Flow (m3/min): 5.8 | 6P Head (m): 22 | 6P Motor (HP): 40 | 6P Weight (kg): 672 | 4P 1750 rpm Flow (m3/min): 8.7 | 4P Head (m): 50 | 4P Motor (HP): 125 | 4P Weight (kg): 940 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-400Discharge Bore (mm): 150 | Impeller Dia. (mm): 400 | 6P 1150 rpm Flow (m3/min): 6.5 | 6P Head (m): 33 | 6P Motor (HP): 60 | 6P Weight (kg): 783 | 4P 1750 rpm Flow (m3/min): 9.5 | 4P Head (m): 75 | 4P Motor (HP): 215 | 4P Weight (kg): 1388 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-430Discharge Bore (mm): 150 | Impeller Dia. (mm): 430 | 6P 1150 rpm Flow (m3/min): 2.9 | 6P Head (m): 37 | 6P Motor (HP): 40 | 6P Weight (kg): 750 | 4P 1750 rpm Flow (m3/min): 4.3 | 4P Head (m): 82 | 4P Motor (HP): 125 | 4P Weight (kg): 1018 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 150-500Discharge Bore (mm): 150 | Impeller Dia. (mm): 500 | 6P 1150 rpm Flow (m3/min): 5.3 | 6P Head (m): 53 | 6P Motor (HP): 100 | 6P Weight (kg): 1108 | 4P 1750 rpm Flow (m3/min): 8.4 | 4P Head (m): 122 | 4P Motor (HP): 300 | 4P Weight (kg): 2058 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 200-280Discharge Bore (mm): 200 | Impeller Dia. (mm): 280 | 6P 1150 rpm Flow (m3/min): 7.2 | 6P Head (m): 12 | 6P Motor (HP): 25 | 6P Weight (kg): 641 | 4P 1750 rpm Flow (m3/min): 10.8 | 4P Head (m): 27 | 4P Motor (HP): 100 | 4P Weight (kg): 970 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 200-340Discharge Bore (mm): 200 | Impeller Dia. (mm): 340 | 6P 1150 rpm Flow (m3/min): 8.2 | 6P Head (m): 18 | 6P Motor (HP): 50 | 6P Weight (kg): 798 | 4P 1750 rpm Flow (m3/min): 12.0 | 4P Head (m): 41 | 4P Motor (HP): 150 | 4P Weight (kg): 1206 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 200-400Discharge Bore (mm): 200 | Impeller Dia. (mm): 400 | 6P 1150 rpm Flow (m3/min): 7.5 | 6P Head (m): 30 | 6P Motor (HP): 60 | 6P Weight (kg): 927 | 4P 1750 rpm Flow (m3/min): 11.3 | 4P Head (m): 69 | 4P Motor (HP): 215 | 4P Weight (kg): 1532 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 200-500Discharge Bore (mm): 200 | Impeller Dia. (mm): 500 | 6P 1150 rpm Flow (m3/min): 7.5 | 6P Head (m): 54 | 6P Motor (HP): 125 | 6P Weight (kg): 1416 | 4P 1750 rpm Flow (m3/min): 12.0 | 4P Head (m): 122 | 4P Motor (HP): 450 | 4P Weight (kg): 2226 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 200-620Discharge Bore (mm): 200 | Impeller Dia. (mm): 620 | 6P 1150 rpm Flow (m3/min): 7.0 | 6P Head (m): 75 | 6P Motor (HP): 175 | 6P Weight (kg): 1898 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 250-280Discharge Bore (mm): 250 | Impeller Dia. (mm): 280 | 6P 1150 rpm Flow (m3/min): 12.0 | 6P Head (m): 11 | 6P Motor (HP): 40 | 6P Weight (kg): 954 | 4P 1750 rpm Flow (m3/min): 17.5 | 4P Head (m): 24 | 4P Motor (HP): 125 | 4P Weight (kg): 1222 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 250-340Discharge Bore (mm): 250 | Impeller Dia. (mm): 340 | 6P 1150 rpm Flow (m3/min): 12.5 | 6P Head (m): 19 | 6P Motor (HP): 60 | 6P Weight (kg): 1071 | 4P 1750 rpm Flow (m3/min): 18.3 | 4P Head (m): 42 | 4P Motor (HP): 215 | 4P Weight (kg): 1676 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 250-400Discharge Bore (mm): 250 | Impeller Dia. (mm): 400 | 6P 1150 rpm Flow (m3/min): 12.3 | 6P Head (m): 33 | 6P Motor (HP): 125 | 6P Weight (kg): 1494 | 4P 1750 rpm Flow (m3/min): 18.3 | 4P Head (m): 77 | 4P Motor (HP): 400 | 4P Weight (kg): 2304 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 250-500Discharge Bore (mm): 250 | Impeller Dia. (mm): 500 | 6P 1150 rpm Flow (m3/min): 14.2 | 6P Head (m): 55 | 6P Motor (HP): 215 | 6P Weight (kg): 1934 | 4P 1750 rpm Flow (m3/min): 20.8 | 4P Head (m): 125 | 4P Motor (HP): 750 | 4P Weight (kg): 2984 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 250-620Discharge Bore (mm): 250 | Impeller Dia. (mm): 620 | 6P 1150 rpm Flow (m3/min): 12.5 | 6P Head (m): 85 | 6P Motor (HP): 350 | 6P Weight (kg): 2760 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 300-280Discharge Bore (mm): 300 | Impeller Dia. (mm): 280 | 6P 1150 rpm Flow (m3/min): 15.6 | 6P Head (m): 9 | 6P Motor (HP): 40 | 6P Weight (kg): 1272 | 4P 1750 rpm Flow (m3/min): 23.3 | 4P Head (m): 20 | 4P Motor (HP): 150 | 4P Weight (kg): 1680 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 300-340Discharge Bore (mm): 300 | Impeller Dia. (mm): 340 | 6P 1150 rpm Flow (m3/min): 16.5 | 6P Head (m): 15 | 6P Motor (HP): 75 | 6P Weight (kg): 1552 | 4P 1750 rpm Flow (m3/min): 24.2 | 4P Head (m): 32 | 4P Motor (HP): 260 | 4P Weight (kg): 2012 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 300-400Discharge Bore (mm): 300 | Impeller Dia. (mm): 400 | 6P 1150 rpm Flow (m3/min): 14.2 | 6P Head (m): 28 | 6P Motor (HP): 125 | 6P Weight (kg): 1854 | 4P 1750 rpm Flow (m3/min): 20.8 | 4P Head (m): 65 | 4P Motor (HP): 400 | 4P Weight (kg): 2664 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 300-500Discharge Bore (mm): 300 | Impeller Dia. (mm): 500 | 6P 1150 rpm Flow (m3/min): 18.3 | 6P Head (m): 45 | 6P Motor (HP): 215 | 6P Weight (kg): 2336 | 4P 1750 rpm Flow (m3/min): 28.3 | 4P Head (m): 105 | 4P Motor (HP): 800 | 4P Weight (kg): 3386 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
SJCB 300-620Discharge Bore (mm): 300 | Impeller Dia. (mm): 620 | 6P 1150 rpm Flow (m3/min): 19.2 | 6P Head (m): 80 | 6P Motor (HP): 450 | 6P Weight (kg): 3234 | 4P 1750 rpm Flow (m3/min): 25.8 | 4P Head (m): 140 | 4P Motor (HP): 1000 | 4P Weight (kg): 3734 | Power: 3-phase 60 Hz | Flange: RF (KS B 1511, 10K)
