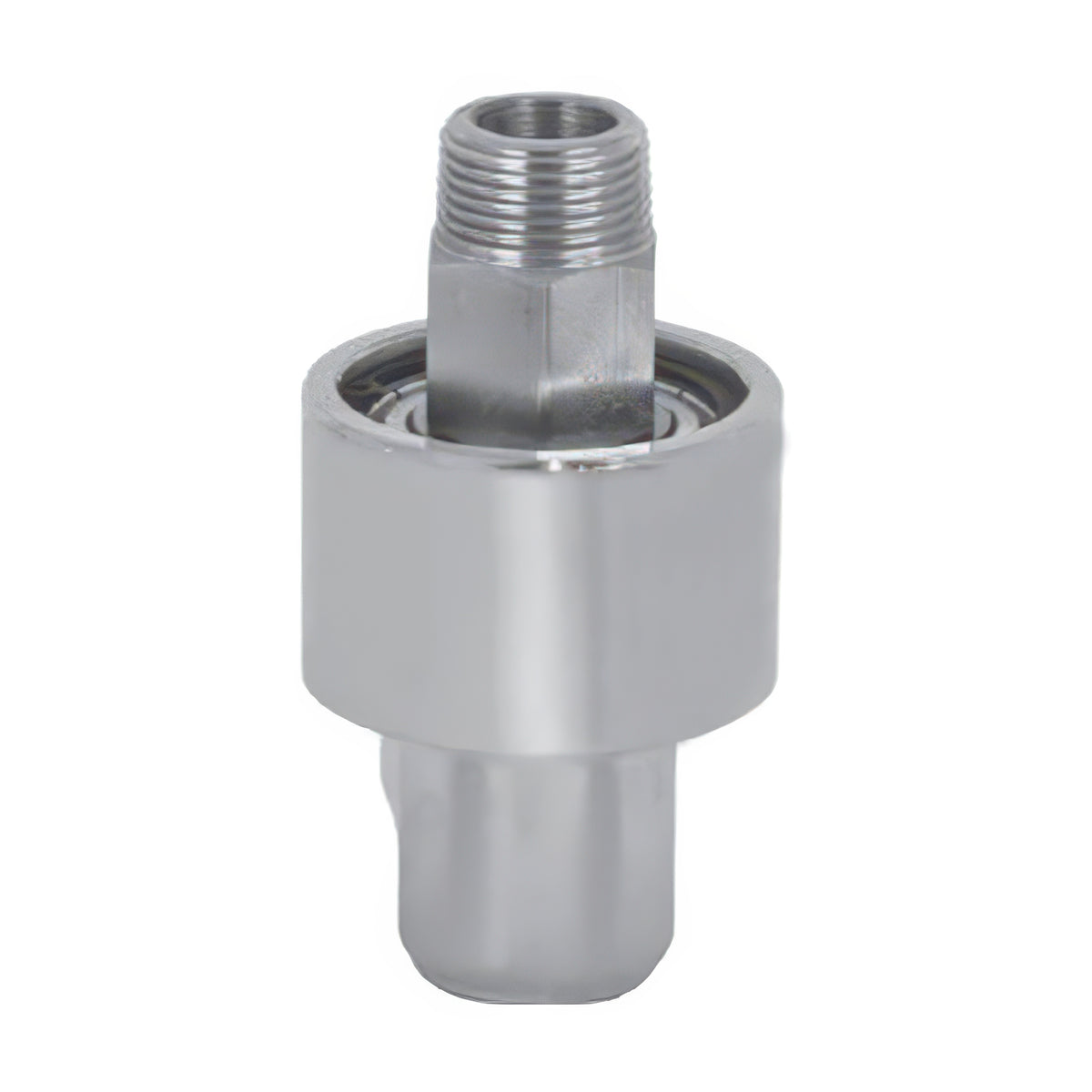

TPC Mechatronics TRJ2000-6000 Series Rotary Joint

TPC Mechatronics TRJ2000-6000 Series Rotary Joint

The TRJ series is a compact rotary joint that supplies air or water to rotating equipment through a sealed swivel connection.

Key features

  • It is small and lightweight for easy installation and has very low rotational resistance
  • The joint is fully lubrication-free and is offered in body sizes 2 to 6 with Rc1/8 to Rc1 ports and right- or left-hand mounting threads
  • Maximum operating pressure is 1 MPa, maximum temperature 100 C, and maximum speed 800 rpm for air or 500 rpm for water

Specifications

Medium Air, water
Max. operating pressure 1 MPa
Max. temperature 100 C
Max. speed 800 rpm (air), 500 rpm (water)
TPC Mechatronics TRJ2000-6000 Series Rotary Joint reference 2
TRJ2000-01 Port size: Rc1/8 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 45 mm | Overall length B: 88.5 mm
TRJ2000-02 Port size: Rc1/4 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 45 mm | Overall length B: 88.5 mm
TRJ3000-03 Port size: Rc3/8 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 45 mm | Overall length B: 93 mm
TRJ4000-04 Port size: Rc1/2 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 57 mm | Overall length B: 108 mm
TRJ5000-06 Port size: Rc3/4 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 63 mm | Overall length B: 121 mm
TRJ6000-10 Port size: Rc1 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 74 mm | Overall length B: 138.5 mm
Rotary JointsTPC Mechatronics
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TRJ2000-6000 Series Rotary Joint

Brand TPC Mechatronics·Rotary Joints

Available part numbers (6)

TRJ2000-01, TRJ2000-02, TRJ3000-03, TRJ4000-04, TRJ5000-06, TRJ6000-10

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics TRJ2000-6000 Series Rotary Joint reference 2
0 selected
RFQ List (0)
Product codeSpec
TRJ2000-01Port size: Rc1/8 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 45 mm | Overall length B: 88.5 mm
TRJ2000-02Port size: Rc1/4 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 45 mm | Overall length B: 88.5 mm
TRJ3000-03Port size: Rc3/8 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 45 mm | Overall length B: 93 mm
TRJ4000-04Port size: Rc1/2 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 57 mm | Overall length B: 108 mm
TRJ5000-06Port size: Rc3/4 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 63 mm | Overall length B: 121 mm
TRJ6000-10Port size: Rc1 | Medium: Air, water | Max. operating pressure: 1 MPa | Max. temperature: 100 C | Max. speed: 800 rpm (air), 500 rpm (water) | Body diameter A: 74 mm | Overall length B: 138.5 mm
