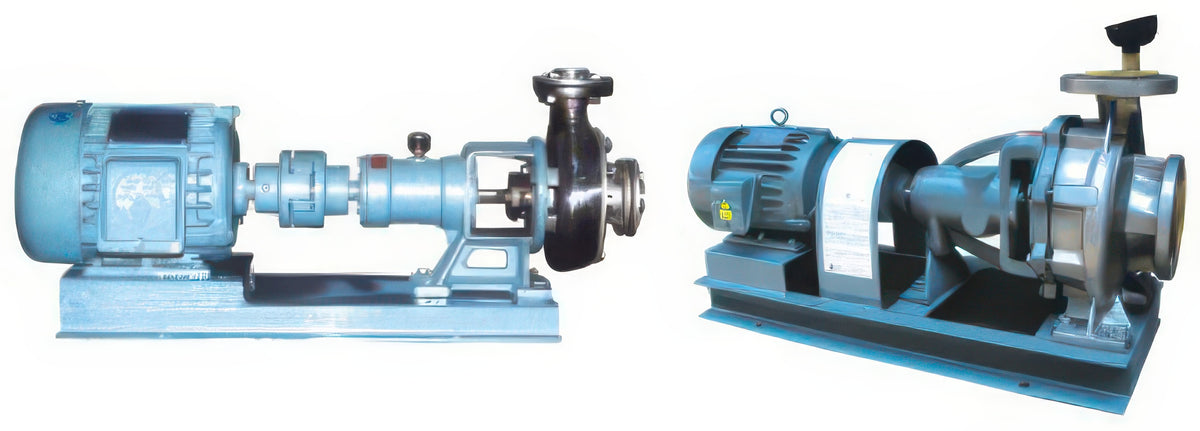

Samjung Pump Stainless Steel Acid-Resistant Pump SJS Series (Open / Closed Impeller)

Samjung Pump Stainless Steel Acid-Resistant Pump SJS Series (Open / Closed Impeller)

Stainless steel end-suction centrifugal pump for acids, alkalis, sea water and chemical liquids.

Key features

  • Casing and impeller are cast stainless steel SSC13 with STS304 shaft and mechanical seal; special materials (SSC14 etc.) are available
  • Top-centre discharge keeps piping loads balanced and parts are standardized for interchangeability
  • Offered with open impeller (low head) or closed impeller (higher head) at 1750 rpm

Specifications

Wetted Parts stainless steel SSC13 casing and impeller, STS304 shaft
Seal mechanical seal
Speed (rpm) 1750
SJS 25x25 Suction x Discharge (mm): 25x25 | Open Impeller Motor (HP): 1 | Open Impeller Flow (m3/min): 0.1 | Open Impeller Head (m): 5 | Wetted Parts: stainless steel SSC13 casing and impeller, STS304 shaft | Seal: mechanical seal | Speed (rpm): 1750
SJS 32x32 Suction x Discharge (mm): 32x32 | Open Impeller Motor (HP): 2 | Open Impeller Flow (m3/min): 0.12 | Open Impeller Head (m): 6 | Wetted Parts: stainless steel SSC13 casing and impeller, STS304 shaft | Seal: mechanical seal | Speed (rpm): 1750
SJS 40x40 Suction x Discharge (mm): 40x40 | Open Impeller Motor (HP): 2 | Open Impeller Flow (m3/min): 0.14 | Open Impeller Head (m): 7 | Wetted Parts: stainless steel SSC13 casing and impeller, STS304 shaft | Seal: mechanical seal | Speed (rpm): 1750
SJS 50x40 Suction x Discharge (mm): 50x40 | Open Impeller Motor (HP): 3 | Open Impeller Flow (m3/min): 0.25 | Open Impeller Head (m): 8 | Closed Impeller Motor (HP): 5 | Closed Impeller Flow (m3/min): 0.25 | Closed Impeller Head (m): 24 | Wetted Parts: stainless steel SSC13 casing and impeller, STS304 shaft | Seal: mechanical seal | Speed (rpm): 1750
SJS 65x50 Suction x Discharge (mm): 65x50 | Open Impeller Motor (HP): 5 | Open Impeller Flow (m3/min): 0.4 | Open Impeller Head (m): 12 | Closed Impeller Motor (HP): 7.5 | Closed Impeller Flow (m3/min): 0.45 | Closed Impeller Head (m): 25 | Wetted Parts: stainless steel SSC13 casing and impeller, STS304 shaft | Seal: mechanical seal | Speed (rpm): 1750
SJS 80x65 Suction x Discharge (mm): 80x65 | Open Impeller Motor (HP): 5 | Open Impeller Flow (m3/min): 0.6 | Open Impeller Head (m): 12 | Closed Impeller Motor (HP): 15 | Closed Impeller Flow (m3/min): 0.8 | Closed Impeller Head (m): 28 | Wetted Parts: stainless steel SSC13 casing and impeller, STS304 shaft | Seal: mechanical seal | Speed (rpm): 1750
SJS 100x80 Suction x Discharge (mm): 100x80 | Open Impeller Motor (HP): 10 | Open Impeller Flow (m3/min): 1.0 | Open Impeller Head (m): 15 | Closed Impeller Motor (HP): 20 | Closed Impeller Flow (m3/min): 1.0 | Closed Impeller Head (m): 30 | Wetted Parts: stainless steel SSC13 casing and impeller, STS304 shaft | Seal: mechanical seal | Speed (rpm): 1750
SJS 125x100 Suction x Discharge (mm): 125x100 | Open Impeller Motor (HP): 15 | Open Impeller Flow (m3/min): 1.6 | Open Impeller Head (m): 18 | Closed Impeller Motor (HP): 25 | Closed Impeller Flow (m3/min): 1.6 | Closed Impeller Head (m): 30 | Wetted Parts: stainless steel SSC13 casing and impeller, STS304 shaft | Seal: mechanical seal | Speed (rpm): 1750
SJS 150x125 Suction x Discharge (mm): 150x125 | Open Impeller Motor (HP): 20 | Open Impeller Flow (m3/min): 2.5 | Open Impeller Head (m): 20 | Closed Impeller Motor (HP): 40 | Closed Impeller Flow (m3/min): 2.5 | Closed Impeller Head (m): 30 | Wetted Parts: stainless steel SSC13 casing and impeller, STS304 shaft | Seal: mechanical seal | Speed (rpm): 1750
Chemical PumpsSamjung Pump
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samjung Pump Stainless Steel Acid-Resistant Pump SJS Series (Open / Closed Impeller)

Brand Samjung Pump·Chemical Pumps

Available part numbers (9)

SJS 25x25, SJS 32x32, SJS 40x40, SJS 50x40, SJS 65x50, SJS 80x65, SJS 100x80, SJS 125x100, SJS 150x125
