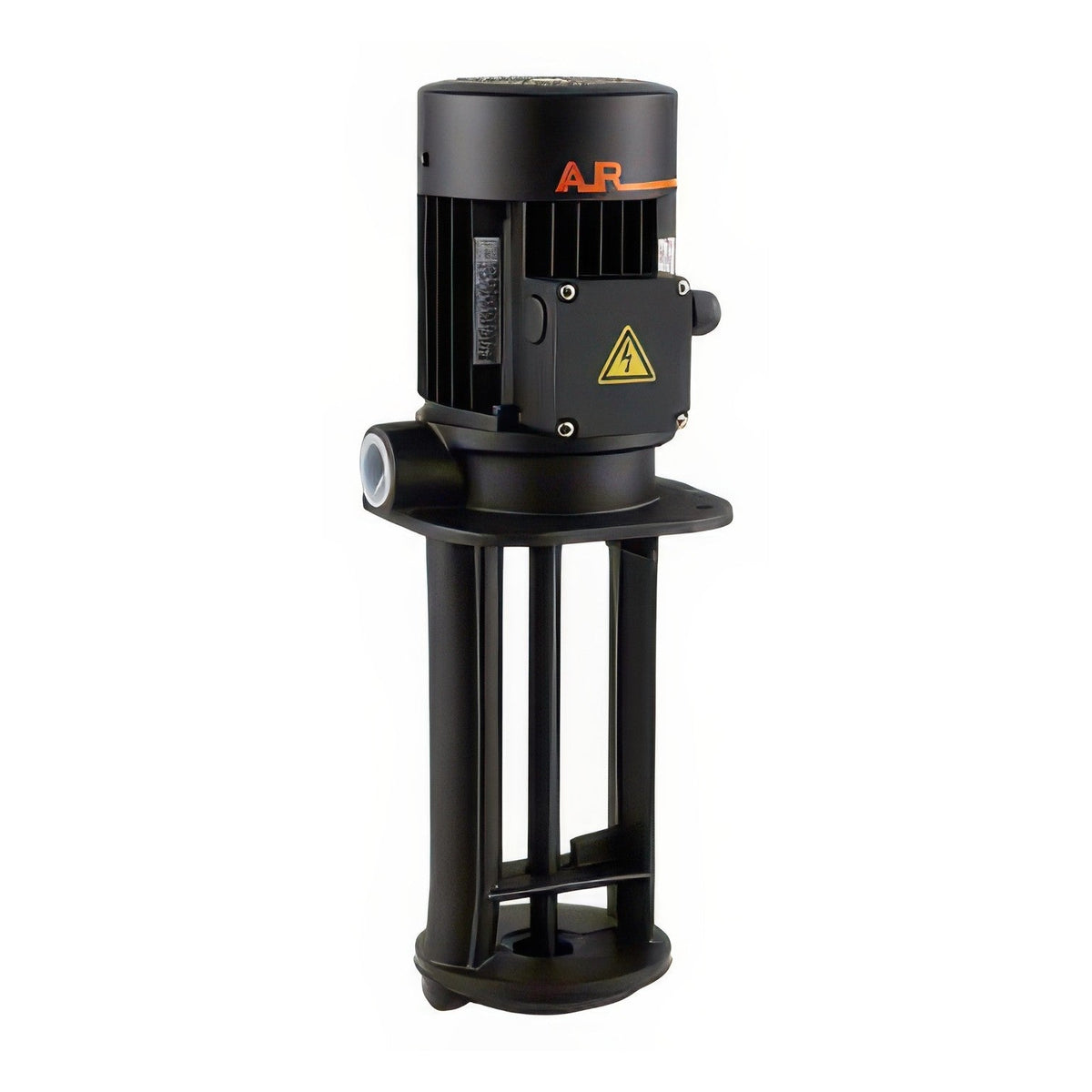

• Aryung ACP-F Immersion Coolant Pump (60-400 W, 25-200 L/min)
1 1

Aryung ACP-F Immersion Coolant Pump (60-400 W, 25-200 L/min)

Aryung ACP-F Immersion Coolant Pump (60-400 W, 25-200 L/min)

The ACP-F is a compact single-stage immersion (submerged) coolant pump for general-purpose machine tools.

Key features

  • It needs no separate oil priming and uses no mechanical seal, so there is no failure due to dry running
  • Upper-suction design with oil level upper/lower limit marks on the pump body and a rotation-direction check window
  • Suitable for water-soluble coolant, cutting oil and grinding oil at viscosities up to 1-32 cSt and temperatures up to 80 C
  • Motor frame is die-cast aluminium; pump body and casing are cast iron; impeller is sintered powder steel

Specifications

Voltage (50/60 Hz) 200/380/415 V / 220/380/440 V
Aryung ACP-F Immersion Coolant Pump (60-400 W, 25-200 L/min) reference 2
ACP-60F Flow (50/60 Hz): 25/30 L/min | Head: 2 m | Outlet: PS 3/8" | Immersion depth: 153 mm | Motor: 60 W | Voltage (50/60 Hz): 200/380/415 V / 220/380/440 V | Current (50 Hz): 0.4/0.24/0.22 A | Current (60 Hz): 0.45/0.26/0.25 A | Protection: IP44 | Overall length TL: 316 mm | Weight: 6.5 kg
ACP-100F Flow (50/60 Hz): 35/45 L/min | Head: 2 m | Outlet: PS 3/8" | Immersion depth: 158 mm | Motor: 100 W | Voltage (50/60 Hz): 200/380/415 V / 220/380/440 V | Current (50 Hz): 0.5/0.29/0.27 A | Current (60 Hz): 0.55/0.32/0.31 A | Protection: IP44 | Overall length TL: 320 mm | Weight: 7 kg
ACP-180F Flow (50/60 Hz): 75/90 L/min | Head: 3 m | Outlet: PS 1/2" | Immersion depth: 180 mm | Motor: 180 W | Voltage (50/60 Hz): 200/380/415 V / 220/380/440 V | Current (50 Hz): 1/0.58/0.56 A | Current (60 Hz): 1.1/0.64/0.60 A | Protection: IP44 | Overall length TL: 365 mm | Weight: 10.5 kg
ACP-250F Flow (50/60 Hz): 120/150 L/min | Head: 4 m | Outlet: PS 3/4" | Immersion depth: 258 mm | Motor: 250 W | Voltage (50/60 Hz): 200/380/415 V / 220/380/440 V | Current (50 Hz): 1.5/0.87/0.82 A | Current (60 Hz): 1.6/0.93/0.88 A | Protection: IP44 | Overall length TL: 456 mm | Weight: 14 kg
ACP-400F Flow (50/60 Hz): 140/200 L/min | Head: 5 m | Outlet: PS 1" | Immersion depth: 280 mm | Motor: 400 W | Voltage (50/60 Hz): 200/380/415 V / 220/380/440 V | Current (50 Hz): 2.6/1.50/1.40 A | Current (60 Hz): 2.7/1.6/1.5 A | Protection: IP54 | Overall length TL: 515 mm | Weight: 18.5 kg
Coolant PumpsAryung
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung ACP-F Immersion Coolant Pump (60-400 W, 25-200 L/min)

Brand Aryung·Coolant Pumps

Available part numbers (5)

ACP-60F, ACP-100F, ACP-180F, ACP-250F, ACP-400F

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung ACP-F Immersion Coolant Pump (60-400 W, 25-200 L/min) reference 2
0 selected
RFQ List (0)
Product codeSpec
ACP-60FFlow (50/60 Hz): 25/30 L/min | Head: 2 m | Outlet: PS 3/8" | Immersion depth: 153 mm | Motor: 60 W | Voltage (50/60 Hz): 200/380/415 V / 220/380/440 V | Current (50 Hz): 0.4/0.24/0.22 A | Current (60 Hz): 0.45/0.26/0.25 A | Protection: IP44 | Overall length TL: 316 mm | Weight: 6.5 kg
ACP-100FFlow (50/60 Hz): 35/45 L/min | Head: 2 m | Outlet: PS 3/8" | Immersion depth: 158 mm | Motor: 100 W | Voltage (50/60 Hz): 200/380/415 V / 220/380/440 V | Current (50 Hz): 0.5/0.29/0.27 A | Current (60 Hz): 0.55/0.32/0.31 A | Protection: IP44 | Overall length TL: 320 mm | Weight: 7 kg
ACP-180FFlow (50/60 Hz): 75/90 L/min | Head: 3 m | Outlet: PS 1/2" | Immersion depth: 180 mm | Motor: 180 W | Voltage (50/60 Hz): 200/380/415 V / 220/380/440 V | Current (50 Hz): 1/0.58/0.56 A | Current (60 Hz): 1.1/0.64/0.60 A | Protection: IP44 | Overall length TL: 365 mm | Weight: 10.5 kg
ACP-250FFlow (50/60 Hz): 120/150 L/min | Head: 4 m | Outlet: PS 3/4" | Immersion depth: 258 mm | Motor: 250 W | Voltage (50/60 Hz): 200/380/415 V / 220/380/440 V | Current (50 Hz): 1.5/0.87/0.82 A | Current (60 Hz): 1.6/0.93/0.88 A | Protection: IP44 | Overall length TL: 456 mm | Weight: 14 kg
ACP-400FFlow (50/60 Hz): 140/200 L/min | Head: 5 m | Outlet: PS 1" | Immersion depth: 280 mm | Motor: 400 W | Voltage (50/60 Hz): 200/380/415 V / 220/380/440 V | Current (50 Hz): 2.6/1.50/1.40 A | Current (60 Hz): 2.7/1.6/1.5 A | Protection: IP54 | Overall length TL: 515 mm | Weight: 18.5 kg
