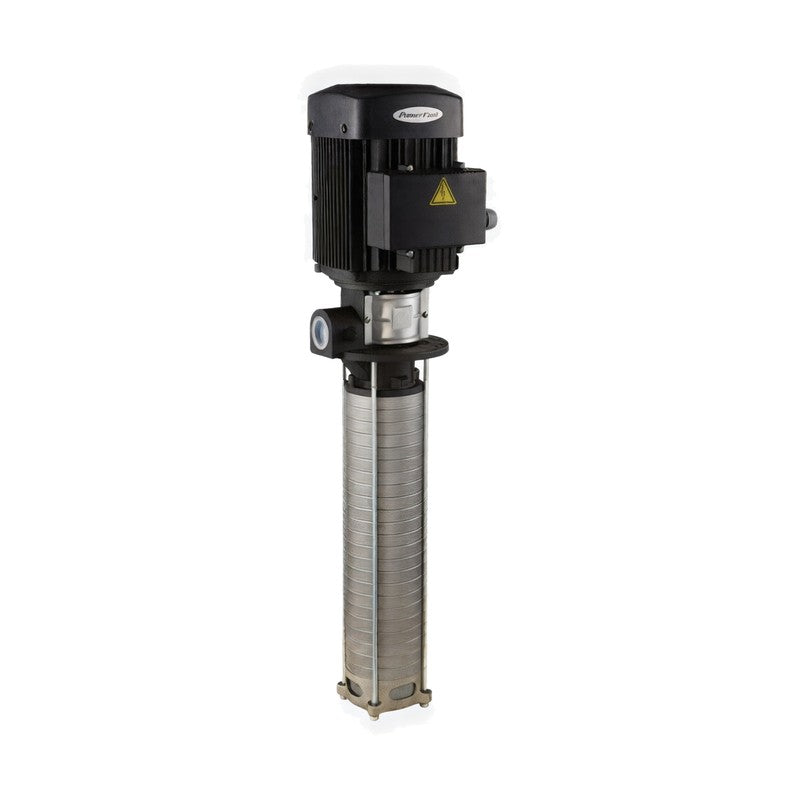

Aryung ACRK 10 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (10 m3/h)

Aryung ACRK 10 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (10 m3/h)

The ACRK series is a high-lift vertical multi-stage centrifugal pump used mainly on high-precision, high-performance machine tools that require high pressure, and is well suited to cooling or cleaning workpieces.

Key features

  • It is used in coolant systems of NC/CNC lathes, machining centers, grinding machines, industrial washing machines and filtration systems
  • Key pump parts are stainless steel and an FKM (fluororubber) mechanical seal is fitted for heat resistance and durability
  • Empty chambers can be used to extend immersion depth for deep tanks
  • Fan-cooled standard motor, IP54, insulation class F; premium-efficiency motors from 750 W
  • Available with flange (F) or screw (B) outlet

Specifications

Nominal flow 10 m3/h
Aryung ACRK 10 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (10 m3/h) reference 2
ACRK 10-20/2 Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 2 | Impeller stages: 2 | Motor (50 Hz): 0.75 kW | Motor (60 Hz): 1.5 kW | Current (50 Hz, 200/220/380/415 V): 4/3.6/2.1/1.9 A | Motor efficiency (50 Hz): 80.7 % | Current (60 Hz, 200/220/380/440 V): 6.6/6/3.5/3.2 A | Motor efficiency (60 Hz): 85.5 % | A (B type): 534 mm (50 Hz), 554 mm (60 Hz) | A (F type): 549 mm (50 Hz), 569 mm (60 Hz) | B: 159 mm | C: 235 mm (50 Hz), 255 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | D2: 160 mm | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 23 kg (50 Hz), 39 kg (60 Hz)
ACRK 10-30/3 Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 3 | Impeller stages: 3 | Motor (50 Hz): 1.1 kW | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (50 Hz): 82.7 % | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 584 mm (50 Hz), 601 mm (60 Hz) | A (F type): 599 mm (50 Hz), 616 mm (60 Hz) | B: 189 mm | C: 255 mm (50 Hz), 272 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | D2: 160 mm | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 26 kg (50 Hz), 41 kg (60 Hz)
ACRK 10-40/4 Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 4 | Impeller stages: 4 | Motor (50 Hz): 1.5 kW | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): 7.2/7.2/4.2/4 A | Motor efficiency (50 Hz): 84.2 % | Current (60 Hz, 200/220/380/440 V): 12.5/11/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 614 mm (50 Hz), 646 mm (60 Hz) | A (F type): 629 mm (50 Hz), 661 mm (60 Hz) | B: 219 mm | C: 255 mm (50 Hz), 287 mm (60 Hz) | D1: 183 mm | D2: 160 mm | E: 91.5 mm | F: 150 mm | Weight: 40 kg (50 Hz), 42 kg (60 Hz)
ACRK 10-50/5 Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 5 | Impeller stages: 5 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 12.5/11/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 661 mm (50 Hz), 676 mm (60 Hz) | A (F type): 676 mm (50 Hz), 691 mm (60 Hz) | B: 249 mm | C: 272 mm (50 Hz), 287 mm (60 Hz) | D1: 183 mm | D2: 160 mm | E: 91.5 mm | F: 150 mm | Weight: 42 kg (50 Hz), 43 kg (60 Hz)
ACRK 10-60/6 Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 6 | Impeller stages: 6 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 691 mm (50 Hz), 721 mm (60 Hz) | A (F type): 706 mm (50 Hz), 736 mm (60 Hz) | B: 279 mm | C: 272 mm (50 Hz), 302 mm (60 Hz) | D1: 183 mm | D2: 160 mm | E: 91.5 mm | F: 150 mm | Weight: 43 kg (50 Hz), 57 kg (60 Hz)
ACRK 10-80/8 Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 8 | Impeller stages: 8 | Motor (50 Hz): 2.9 kW | Motor (60 Hz): 5.5 kW | Current (50 Hz, 200/220/380/415 V): 12.5/12.5/7.2/6.8 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 25.0/23.1/13.4/11.6 A | Motor efficiency (60 Hz): 89.5 % | A (B type): 766 mm (50 Hz), 883 mm (60 Hz) | A (F type): 781 mm (50 Hz), 898 mm (60 Hz) | B: 339 mm | C: 287 mm (50 Hz), 404 mm (60 Hz) | D1: 183 mm (50 Hz), 256 mm (60 Hz) | D2: 160 mm (50 Hz), 300 mm (60 Hz) | E: 91.5 mm (50 Hz), 150 mm (60 Hz) | F: 150 mm (50 Hz), 193 mm (60 Hz) | Weight: 46 kg (50 Hz), 69 kg (60 Hz)
ACRK 10-100/10 Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 10 | Impeller stages: 10 | Motor (50 Hz): 4 kW | Motor (60 Hz): 7.5 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 30.0/27.1/15.7/13.6 A | Motor efficiency (60 Hz): 90.2 % | A (B type): 841 mm (50 Hz), 983 mm (60 Hz) | A (F type): 856 mm (50 Hz), 998 mm (60 Hz) | B: 399 mm | C: 302 mm (50 Hz), 444 mm (60 Hz) | D1: 183 mm (50 Hz), 256 mm (60 Hz) | D2: 160 mm (50 Hz), 300 mm (60 Hz) | E: 91.5 mm (50 Hz), 150 mm (60 Hz) | F: 150 mm (50 Hz), 193 mm (60 Hz) | Weight: 61 kg (50 Hz), 82 kg (60 Hz)
ACRK 10-120/12 Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 12 | Impeller stages: 12 | Motor (50 Hz): 4 kW | Motor (60 Hz): 7.5 kW | Current (50 Hz, 200/220/380/415 V): 17.2/17.2/10/9.5 A | Motor efficiency (50 Hz): 88.1 % | Current (60 Hz, 200/220/380/440 V): 30.0/27.1/15.7/13.6 A | Motor efficiency (60 Hz): 90.2 % | A (B type): 901 mm (50 Hz), 1043 mm (60 Hz) | A (F type): 916 mm (50 Hz), 1058 mm (60 Hz) | B: 459 mm | C: 302 mm (50 Hz), 444 mm (60 Hz) | D1: 183 mm (50 Hz), 256 mm (60 Hz) | D2: 160 mm (50 Hz), 300 mm (60 Hz) | E: 91.5 mm (50 Hz), 150 mm (60 Hz) | F: 150 mm (50 Hz), 193 mm (60 Hz) | Weight: 63 kg (50 Hz), 84 kg (60 Hz)
ACRK 10-140/14 Frequency: 50 Hz only | Nominal flow: 10 m3/h | Chambers: 14 | Impeller stages: 14 | Motor (50 Hz): 5.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 26.5/24.1/14.0/13.0 A | Motor efficiency (50 Hz): 89.2 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1063 mm | A (F type): 1078 mm | B: 519 mm | C: 404 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 75 kg
ACRK 10-160/16 Frequency: 50 Hz only | Nominal flow: 10 m3/h | Chambers: 16 | Impeller stages: 16 | Motor (50 Hz): 5.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 26.5/24.1/14.0/13.0 A | Motor efficiency (50 Hz): 89.2 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1123 mm | A (F type): 1138 mm | B: 579 mm | C: 404 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 77 kg
ACRK 10-180/18 Frequency: 50 Hz only | Nominal flow: 10 m3/h | Chambers: 18 | Impeller stages: 18 | Motor (50 Hz): 7.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 29.5/27.6/17/15.7 A | Motor efficiency (50 Hz): 90.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1223 mm | A (F type): 1238 mm | B: 639 mm | C: 444 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 90 kg
ACRK 10-200/20 Frequency: 50 Hz only | Nominal flow: 10 m3/h | Chambers: 20 | Impeller stages: 20 | Motor (50 Hz): 7.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 29.5/27.6/17/15.7 A | Motor efficiency (50 Hz): 90.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1283 mm | A (F type): 1298 mm | B: 699 mm | C: 444 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 92 kg
ACRK 10-220/22 Frequency: 50 Hz only | Nominal flow: 10 m3/h | Chambers: 22 | Impeller stages: 22 | Motor (50 Hz): 7.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 29.5/27.6/17/15.7 A | Motor efficiency (50 Hz): 90.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1343 mm | A (F type): 1358 mm | B: 759 mm | C: 444 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 94 kg
ACRK 10-20/1 Frequency: 60 Hz only | Nominal flow: 10 m3/h | Chambers: 2 | Impeller stages: 1 | Motor (50 Hz): - | Motor (60 Hz): 0.75 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 4.0/3.6/2.1/1.9 A | Motor efficiency (60 Hz): 77.0 % | A (B type): 534 mm | A (F type): 549 mm | B: 159 mm | C: 235 mm | D1: 141 mm | D2: 160 mm | E: 70.5 mm | F: 102 mm | Weight: 23 kg
ACRK 10-90/9 Frequency: 60 Hz only | Nominal flow: 10 m3/h | Chambers: 9 | Impeller stages: 9 | Motor (50 Hz): - | Motor (60 Hz): 5.5 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 25.0/23.1/13.4/11.6 A | Motor efficiency (60 Hz): 89.5 % | A (B type): 913 mm | A (F type): 928 mm | B: 369 mm | C: 404 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 70 kg
Coolant PumpsAryung
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung ACRK 10 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (10 m3/h)

Brand Aryung·Coolant Pumps

Available part numbers (15)

ACRK 10-20/2, ACRK 10-30/3, ACRK 10-40/4, ACRK 10-50/5, ACRK 10-60/6, ACRK 10-80/8, ACRK 10-100/10, ACRK 10-120/12, ACRK 10-140/14, ACRK 10-160/16 + 5 more — see full table ↓

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung ACRK 10 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (10 m3/h) reference 2
0 selected
RFQ List (0)
Product codeSpec
ACRK 10-20/2Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 2 | Impeller stages: 2 | Motor (50 Hz): 0.75 kW | Motor (60 Hz): 1.5 kW | Current (50 Hz, 200/220/380/415 V): 4/3.6/2.1/1.9 A | Motor efficiency (50 Hz): 80.7 % | Current (60 Hz, 200/220/380/440 V): 6.6/6/3.5/3.2 A | Motor efficiency (60 Hz): 85.5 % | A (B type): 534 mm (50 Hz), 554 mm (60 Hz) | A (F type): 549 mm (50 Hz), 569 mm (60 Hz) | B: 159 mm | C: 235 mm (50 Hz), 255 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | D2: 160 mm | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 23 kg (50 Hz), 39 kg (60 Hz)
ACRK 10-30/3Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 3 | Impeller stages: 3 | Motor (50 Hz): 1.1 kW | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (50 Hz): 82.7 % | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 584 mm (50 Hz), 601 mm (60 Hz) | A (F type): 599 mm (50 Hz), 616 mm (60 Hz) | B: 189 mm | C: 255 mm (50 Hz), 272 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | D2: 160 mm | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 26 kg (50 Hz), 41 kg (60 Hz)
ACRK 10-40/4Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 4 | Impeller stages: 4 | Motor (50 Hz): 1.5 kW | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): 7.2/7.2/4.2/4 A | Motor efficiency (50 Hz): 84.2 % | Current (60 Hz, 200/220/380/440 V): 12.5/11/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 614 mm (50 Hz), 646 mm (60 Hz) | A (F type): 629 mm (50 Hz), 661 mm (60 Hz) | B: 219 mm | C: 255 mm (50 Hz), 287 mm (60 Hz) | D1: 183 mm | D2: 160 mm | E: 91.5 mm | F: 150 mm | Weight: 40 kg (50 Hz), 42 kg (60 Hz)
ACRK 10-50/5Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 5 | Impeller stages: 5 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 12.5/11/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 661 mm (50 Hz), 676 mm (60 Hz) | A (F type): 676 mm (50 Hz), 691 mm (60 Hz) | B: 249 mm | C: 272 mm (50 Hz), 287 mm (60 Hz) | D1: 183 mm | D2: 160 mm | E: 91.5 mm | F: 150 mm | Weight: 42 kg (50 Hz), 43 kg (60 Hz)
ACRK 10-60/6Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 6 | Impeller stages: 6 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 691 mm (50 Hz), 721 mm (60 Hz) | A (F type): 706 mm (50 Hz), 736 mm (60 Hz) | B: 279 mm | C: 272 mm (50 Hz), 302 mm (60 Hz) | D1: 183 mm | D2: 160 mm | E: 91.5 mm | F: 150 mm | Weight: 43 kg (50 Hz), 57 kg (60 Hz)
ACRK 10-80/8Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 8 | Impeller stages: 8 | Motor (50 Hz): 2.9 kW | Motor (60 Hz): 5.5 kW | Current (50 Hz, 200/220/380/415 V): 12.5/12.5/7.2/6.8 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 25.0/23.1/13.4/11.6 A | Motor efficiency (60 Hz): 89.5 % | A (B type): 766 mm (50 Hz), 883 mm (60 Hz) | A (F type): 781 mm (50 Hz), 898 mm (60 Hz) | B: 339 mm | C: 287 mm (50 Hz), 404 mm (60 Hz) | D1: 183 mm (50 Hz), 256 mm (60 Hz) | D2: 160 mm (50 Hz), 300 mm (60 Hz) | E: 91.5 mm (50 Hz), 150 mm (60 Hz) | F: 150 mm (50 Hz), 193 mm (60 Hz) | Weight: 46 kg (50 Hz), 69 kg (60 Hz)
ACRK 10-100/10Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 10 | Impeller stages: 10 | Motor (50 Hz): 4 kW | Motor (60 Hz): 7.5 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 30.0/27.1/15.7/13.6 A | Motor efficiency (60 Hz): 90.2 % | A (B type): 841 mm (50 Hz), 983 mm (60 Hz) | A (F type): 856 mm (50 Hz), 998 mm (60 Hz) | B: 399 mm | C: 302 mm (50 Hz), 444 mm (60 Hz) | D1: 183 mm (50 Hz), 256 mm (60 Hz) | D2: 160 mm (50 Hz), 300 mm (60 Hz) | E: 91.5 mm (50 Hz), 150 mm (60 Hz) | F: 150 mm (50 Hz), 193 mm (60 Hz) | Weight: 61 kg (50 Hz), 82 kg (60 Hz)
ACRK 10-120/12Frequency: 50/60 Hz | Nominal flow: 10 m3/h | Chambers: 12 | Impeller stages: 12 | Motor (50 Hz): 4 kW | Motor (60 Hz): 7.5 kW | Current (50 Hz, 200/220/380/415 V): 17.2/17.2/10/9.5 A | Motor efficiency (50 Hz): 88.1 % | Current (60 Hz, 200/220/380/440 V): 30.0/27.1/15.7/13.6 A | Motor efficiency (60 Hz): 90.2 % | A (B type): 901 mm (50 Hz), 1043 mm (60 Hz) | A (F type): 916 mm (50 Hz), 1058 mm (60 Hz) | B: 459 mm | C: 302 mm (50 Hz), 444 mm (60 Hz) | D1: 183 mm (50 Hz), 256 mm (60 Hz) | D2: 160 mm (50 Hz), 300 mm (60 Hz) | E: 91.5 mm (50 Hz), 150 mm (60 Hz) | F: 150 mm (50 Hz), 193 mm (60 Hz) | Weight: 63 kg (50 Hz), 84 kg (60 Hz)
ACRK 10-140/14Frequency: 50 Hz only | Nominal flow: 10 m3/h | Chambers: 14 | Impeller stages: 14 | Motor (50 Hz): 5.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 26.5/24.1/14.0/13.0 A | Motor efficiency (50 Hz): 89.2 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1063 mm | A (F type): 1078 mm | B: 519 mm | C: 404 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 75 kg
ACRK 10-160/16Frequency: 50 Hz only | Nominal flow: 10 m3/h | Chambers: 16 | Impeller stages: 16 | Motor (50 Hz): 5.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 26.5/24.1/14.0/13.0 A | Motor efficiency (50 Hz): 89.2 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1123 mm | A (F type): 1138 mm | B: 579 mm | C: 404 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 77 kg
ACRK 10-180/18Frequency: 50 Hz only | Nominal flow: 10 m3/h | Chambers: 18 | Impeller stages: 18 | Motor (50 Hz): 7.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 29.5/27.6/17/15.7 A | Motor efficiency (50 Hz): 90.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1223 mm | A (F type): 1238 mm | B: 639 mm | C: 444 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 90 kg
ACRK 10-200/20Frequency: 50 Hz only | Nominal flow: 10 m3/h | Chambers: 20 | Impeller stages: 20 | Motor (50 Hz): 7.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 29.5/27.6/17/15.7 A | Motor efficiency (50 Hz): 90.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1283 mm | A (F type): 1298 mm | B: 699 mm | C: 444 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 92 kg
ACRK 10-220/22Frequency: 50 Hz only | Nominal flow: 10 m3/h | Chambers: 22 | Impeller stages: 22 | Motor (50 Hz): 7.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 29.5/27.6/17/15.7 A | Motor efficiency (50 Hz): 90.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1343 mm | A (F type): 1358 mm | B: 759 mm | C: 444 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 94 kg
ACRK 10-20/1Frequency: 60 Hz only | Nominal flow: 10 m3/h | Chambers: 2 | Impeller stages: 1 | Motor (50 Hz): - | Motor (60 Hz): 0.75 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 4.0/3.6/2.1/1.9 A | Motor efficiency (60 Hz): 77.0 % | A (B type): 534 mm | A (F type): 549 mm | B: 159 mm | C: 235 mm | D1: 141 mm | D2: 160 mm | E: 70.5 mm | F: 102 mm | Weight: 23 kg
ACRK 10-90/9Frequency: 60 Hz only | Nominal flow: 10 m3/h | Chambers: 9 | Impeller stages: 9 | Motor (50 Hz): - | Motor (60 Hz): 5.5 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 25.0/23.1/13.4/11.6 A | Motor efficiency (60 Hz): 89.5 % | A (B type): 913 mm | A (F type): 928 mm | B: 369 mm | C: 404 mm | D1: 256 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 70 kg
