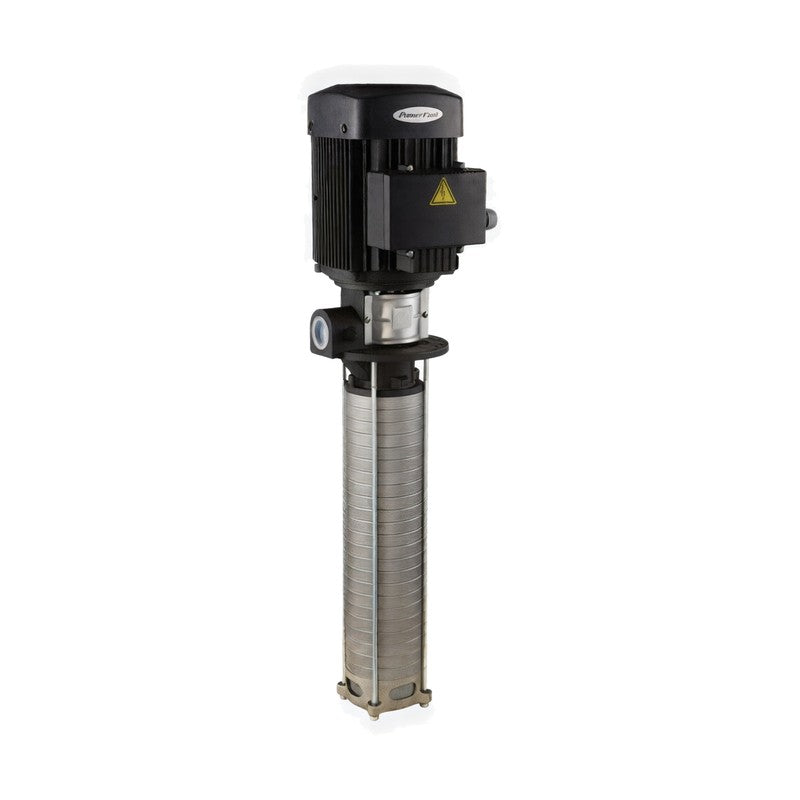

Aryung ACRK 15 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (15 m3/h)
Aryung ACRK 15 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (15 m3/h)
The ACRK series is a high-lift vertical multi-stage centrifugal pump used mainly on high-precision, high-performance machine tools that require high pressure, and is well suited to cooling or cleaning workpieces.
Key features
- It is used in coolant systems of NC/CNC lathes, machining centers, grinding machines, industrial washing machines and filtration systems
- Key pump parts are stainless steel and an FKM (fluororubber) mechanical seal is fitted for heat resistance and durability
- Empty chambers can be used to extend immersion depth for deep tanks
- Fan-cooled standard motor, IP54, insulation class F; premium-efficiency motors from 750 W
- Available with flange (F) or screw (B) outlet
Specifications
| Nominal flow | 15 m3/h |
|---|
| ACRK 15-20/1 | Frequency: 50/60 Hz | Nominal flow: 15 m3/h | Chambers: 2 | Impeller stages: 1 | Motor (50 Hz): 1.1 kW | Motor (60 Hz): 1.5 kW | Current (50 Hz, 200/220/380/415 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (50 Hz): 82.7 % | Current (60 Hz, 200/220/380/440 V): 6.6/6/3.5/3.2 A | Motor efficiency (60 Hz): 85.5 % | A (B type): 585 mm | A (F type): 600 mm | B: 190 mm | C: 255 mm | D1: 141 mm (50 Hz), 183 mm (60 Hz) | D2: 160 mm | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 32 kg (50 Hz), 42 kg (60 Hz) | |
| ACRK 15-20/2 | Frequency: 50/60 Hz | Nominal flow: 15 m3/h | Chambers: 2 | Impeller stages: 2 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 12.511/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 602 mm (50 Hz), 617 mm (60 Hz) | A (F type): 617 mm (50 Hz), 632 mm (60 Hz) | B: 190 mm | C: 272 mm (50 Hz), 287 mm (60 Hz) | D1: 183 mm | D2: 160 mm | E: 91.5 mm | F: 150 mm | Weight: 39 kg (50 Hz), 46 kg (60 Hz) | |
| ACRK 15-30/3 | Frequency: 50/60 Hz | Nominal flow: 15 m3/h | Chambers: 3 | Impeller stages: 3 | Motor (50 Hz): 2.9 kW | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): 12.5/12.5/7.2/6.8 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 662 mm (50 Hz), 677 mm (60 Hz) | A (F type): 677 mm (50 Hz), 692 mm (60 Hz) | B: 235 mm | C: 287 mm (50 Hz), 302 mm (60 Hz) | D1: 183 mm | D2: 160 mm | E: 91.5 mm | F: 150 mm | Weight: 41 kg (50 Hz), 64 kg (60 Hz) | |
| ACRK 15-40/4 | Frequency: 50/60 Hz | Nominal flow: 15 m3/h | Chambers: 4 | Impeller stages: 4 | Motor (50 Hz): 4 kW | Motor (60 Hz): 5.5 kW | Current (50 Hz, 200/220/380/415 V): 17.2/17.2/10/9.5 A | Motor efficiency (50 Hz): 88.1 % | Current (60 Hz, 200/220/380/440 V): 23.1/14/12 A | Motor efficiency (60 Hz): 89.5 % | A (B type): 722 mm (50 Hz), 824 mm (60 Hz) | A (F type): 737 mm (50 Hz), 839 mm (60 Hz) | B: 280 mm | C: 302 mm (50 Hz), 404 mm (60 Hz) | D1: 183 mm (50 Hz), 248 mm (60 Hz) | D2: 160 mm (50 Hz), 300 mm (60 Hz) | E: 91.5 mm (50 Hz), 150 mm (60 Hz) | F: 150 mm (50 Hz), 193 mm (60 Hz) | Weight: 55 kg (50 Hz), 69 kg (60 Hz) | |
| ACRK 15-50/5 | Frequency: 50/60 Hz | Nominal flow: 15 m3/h | Chambers: 5 | Impeller stages: 5 | Motor (50 Hz): 4 kW | Motor (60 Hz): 7.5 kW | Current (50 Hz, 200/220/380/415 V): 17.2/17.2/10/9.5 A | Motor efficiency (50 Hz): 88.1 % | Current (60 Hz, 200/220/380/440 V): 27.1/15.7/13.6 A | Motor efficiency (60 Hz): 90.2 % | A (B type): 767 mm (50 Hz), 909 mm (60 Hz) | A (F type): 782 mm (50 Hz), 924 mm (60 Hz) | B: 325 mm | C: 302 mm (50 Hz), 444 mm (60 Hz) | D1: 183 mm (50 Hz), 248 mm (60 Hz) | D2: 160 mm (50 Hz), 300 mm (60 Hz) | E: 91.5 mm (50 Hz), 150 mm (60 Hz) | F: 150 mm (50 Hz), 193 mm (60 Hz) | Weight: 56 kg (50 Hz), 70 kg (60 Hz) | |
| ACRK 15-60/6 | Frequency: 50 Hz only | Nominal flow: 15 m3/h | Chambers: 6 | Impeller stages: 6 | Motor (50 Hz): 5.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 26.5/24.1/14.0/13.0 A | Motor efficiency (50 Hz): 89.2 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 914 mm | A (F type): 929 mm | B: 370 mm | C: 404 mm | D1: 248 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 68 kg | |
| ACRK 15-70/7 | Frequency: 50 Hz only | Nominal flow: 15 m3/h | Chambers: 7 | Impeller stages: 7 | Motor (50 Hz): 5.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 26.5/24.1/14.0/13.0 A | Motor efficiency (50 Hz): 89.2 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 959 mm | A (F type): 974 mm | B: 415 mm | C: 404 mm | D1: 248 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 69 kg | |
| ACRK 15-80/8 | Frequency: 50 Hz only | Nominal flow: 15 m3/h | Chambers: 8 | Impeller stages: 8 | Motor (50 Hz): 7.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 29.5/27.6/17/15.7 A | Motor efficiency (50 Hz): 90.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1044 mm | A (F type): 1059 mm | B: 460 mm | C: 444 mm | D1: 248 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 81 kg | |
| ACRK 15-90/9 | Frequency: 50 Hz only | Nominal flow: 15 m3/h | Chambers: 9 | Impeller stages: 9 | Motor (50 Hz): 7.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 29.5/27.6/17/15.7 A | Motor efficiency (50 Hz): 90.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1089 mm | A (F type): 1104 mm | B: 505 mm | C: 444 mm | D1: 248 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 82 kg |
Coolant PumpsAryung
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Aryung ACRK 15 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (15 m3/h)
Available part numbers (9)
ACRK 15-20/1, ACRK 15-20/2, ACRK 15-30/3, ACRK 15-40/4, ACRK 15-50/5, ACRK 15-60/6, ACRK 15-70/7, ACRK 15-80/8, ACRK 15-90/9
How to order
Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Aryung
Coolant Pumps
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| ACRK 15-20/1 | Frequency: 50/60 Hz | Nominal flow: 15 m3/h | Chambers: 2 | Impeller stages: 1 | Motor (50 Hz): 1.1 kW | Motor (60 Hz): 1.5 kW | Current (50 Hz, 200/220/380/415 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (50 Hz): 82.7 % | Current (60 Hz, 200/220/380/440 V): 6.6/6/3.5/3.2 A | Motor efficiency (60 Hz): 85.5 % | A (B type): 585 mm | A (F type): 600 mm | B: 190 mm | C: 255 mm | D1: 141 mm (50 Hz), 183 mm (60 Hz) | D2: 160 mm | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 32 kg (50 Hz), 42 kg (60 Hz) | ||
| ACRK 15-20/2 | Frequency: 50/60 Hz | Nominal flow: 15 m3/h | Chambers: 2 | Impeller stages: 2 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 12.511/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 602 mm (50 Hz), 617 mm (60 Hz) | A (F type): 617 mm (50 Hz), 632 mm (60 Hz) | B: 190 mm | C: 272 mm (50 Hz), 287 mm (60 Hz) | D1: 183 mm | D2: 160 mm | E: 91.5 mm | F: 150 mm | Weight: 39 kg (50 Hz), 46 kg (60 Hz) | ||
| ACRK 15-30/3 | Frequency: 50/60 Hz | Nominal flow: 15 m3/h | Chambers: 3 | Impeller stages: 3 | Motor (50 Hz): 2.9 kW | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): 12.5/12.5/7.2/6.8 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 662 mm (50 Hz), 677 mm (60 Hz) | A (F type): 677 mm (50 Hz), 692 mm (60 Hz) | B: 235 mm | C: 287 mm (50 Hz), 302 mm (60 Hz) | D1: 183 mm | D2: 160 mm | E: 91.5 mm | F: 150 mm | Weight: 41 kg (50 Hz), 64 kg (60 Hz) | ||
| ACRK 15-40/4 | Frequency: 50/60 Hz | Nominal flow: 15 m3/h | Chambers: 4 | Impeller stages: 4 | Motor (50 Hz): 4 kW | Motor (60 Hz): 5.5 kW | Current (50 Hz, 200/220/380/415 V): 17.2/17.2/10/9.5 A | Motor efficiency (50 Hz): 88.1 % | Current (60 Hz, 200/220/380/440 V): 23.1/14/12 A | Motor efficiency (60 Hz): 89.5 % | A (B type): 722 mm (50 Hz), 824 mm (60 Hz) | A (F type): 737 mm (50 Hz), 839 mm (60 Hz) | B: 280 mm | C: 302 mm (50 Hz), 404 mm (60 Hz) | D1: 183 mm (50 Hz), 248 mm (60 Hz) | D2: 160 mm (50 Hz), 300 mm (60 Hz) | E: 91.5 mm (50 Hz), 150 mm (60 Hz) | F: 150 mm (50 Hz), 193 mm (60 Hz) | Weight: 55 kg (50 Hz), 69 kg (60 Hz) | ||
| ACRK 15-50/5 | Frequency: 50/60 Hz | Nominal flow: 15 m3/h | Chambers: 5 | Impeller stages: 5 | Motor (50 Hz): 4 kW | Motor (60 Hz): 7.5 kW | Current (50 Hz, 200/220/380/415 V): 17.2/17.2/10/9.5 A | Motor efficiency (50 Hz): 88.1 % | Current (60 Hz, 200/220/380/440 V): 27.1/15.7/13.6 A | Motor efficiency (60 Hz): 90.2 % | A (B type): 767 mm (50 Hz), 909 mm (60 Hz) | A (F type): 782 mm (50 Hz), 924 mm (60 Hz) | B: 325 mm | C: 302 mm (50 Hz), 444 mm (60 Hz) | D1: 183 mm (50 Hz), 248 mm (60 Hz) | D2: 160 mm (50 Hz), 300 mm (60 Hz) | E: 91.5 mm (50 Hz), 150 mm (60 Hz) | F: 150 mm (50 Hz), 193 mm (60 Hz) | Weight: 56 kg (50 Hz), 70 kg (60 Hz) | ||
| ACRK 15-60/6 | Frequency: 50 Hz only | Nominal flow: 15 m3/h | Chambers: 6 | Impeller stages: 6 | Motor (50 Hz): 5.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 26.5/24.1/14.0/13.0 A | Motor efficiency (50 Hz): 89.2 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 914 mm | A (F type): 929 mm | B: 370 mm | C: 404 mm | D1: 248 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 68 kg | ||
| ACRK 15-70/7 | Frequency: 50 Hz only | Nominal flow: 15 m3/h | Chambers: 7 | Impeller stages: 7 | Motor (50 Hz): 5.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 26.5/24.1/14.0/13.0 A | Motor efficiency (50 Hz): 89.2 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 959 mm | A (F type): 974 mm | B: 415 mm | C: 404 mm | D1: 248 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 69 kg | ||
| ACRK 15-80/8 | Frequency: 50 Hz only | Nominal flow: 15 m3/h | Chambers: 8 | Impeller stages: 8 | Motor (50 Hz): 7.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 29.5/27.6/17/15.7 A | Motor efficiency (50 Hz): 90.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1044 mm | A (F type): 1059 mm | B: 460 mm | C: 444 mm | D1: 248 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 81 kg | ||
| ACRK 15-90/9 | Frequency: 50 Hz only | Nominal flow: 15 m3/h | Chambers: 9 | Impeller stages: 9 | Motor (50 Hz): 7.5 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 29.5/27.6/17/15.7 A | Motor efficiency (50 Hz): 90.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1089 mm | A (F type): 1104 mm | B: 505 mm | C: 444 mm | D1: 248 mm | D2: 300 mm | E: 150 mm | F: 193 mm | Weight: 82 kg |
