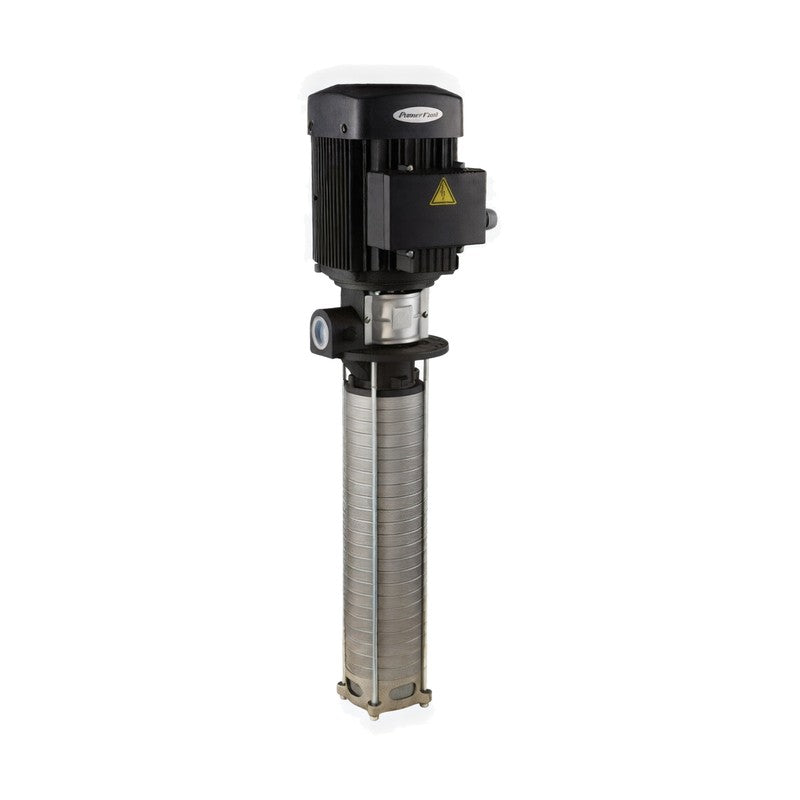

Aryung ACRK 3 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (3 m3/h)

Aryung ACRK 3 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (3 m3/h)

The ACRK series is a high-lift vertical multi-stage centrifugal pump used mainly on high-precision, high-performance machine tools that require high pressure, and is well suited to cooling or cleaning workpieces.

Key features

  • It is used in coolant systems of NC/CNC lathes, machining centers, grinding machines, industrial washing machines and filtration systems
  • Key pump parts are stainless steel and an FKM (fluororubber) mechanical seal is fitted for heat resistance and durability
  • Empty chambers can be used to extend immersion depth for deep tanks
  • Fan-cooled standard motor, IP54, insulation class F; premium-efficiency motors from 750 W
  • Available with flange (F) or screw (B) outlet

Specifications

Nominal flow 3 m3/h
Aryung ACRK 3 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (3 m3/h) reference 2
ACRK 3-40/4 Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 4 | Impeller stages: 4 | Motor (50 Hz): 0.37 kW | Motor (60 Hz): 0.55 kW | Current (50 Hz, 200/220/380/415 V): 2.6/2.4/1.4/1.2 A | Motor efficiency (50 Hz): 68 % | Current (60 Hz, 200/220/380/440 V): 3.0/2.7/1.6/1.4 A | Motor efficiency (60 Hz): 73 % | A (B type): 502 mm | A (F type): 494 mm | B: 196 mm | C: 195 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 13 kg
ACRK 3-70/7 Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 7 | Impeller stages: 7 | Motor (50 Hz): 0.55 kW | Motor (60 Hz): 1.1 kW | Current (50 Hz, 200/220/380/415 V): 3.1/2.8/1.6/1.4 A | Motor efficiency (50 Hz): 73 % | Current (60 Hz, 200/220/380/440 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (60 Hz): 84 % | A (B type): 556 mm (50 Hz), 616 mm (60 Hz) | A (F type): 548 mm (50 Hz), 608 mm (60 Hz) | B: 250 mm | C: 195 mm (50 Hz), 255 mm (60 Hz) | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 14 kg (50 Hz), 17 kg (60 Hz)
ACRK 3-100/10 Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 10 | Impeller stages: 10 | Motor (50 Hz): 0.75 kW | Motor (60 Hz): 1.5 kW | Current (50 Hz, 200/220/380/415 V): 4.0/3.6/2.1/1.9 A | Motor efficiency (50 Hz): 80.7 % | Current (60 Hz, 200/220/380/440 V): 6.6/6/3.5/3.2 A | Motor efficiency (60 Hz): 85.5 % | A (B type): 650 mm (50 Hz), 670 mm (60 Hz) | A (F type): 642 mm (50 Hz), 662 mm (60 Hz) | B: 304 mm | C: 235 mm (50 Hz), 255 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 16 kg (50 Hz), 32 kg (60 Hz)
ACRK 3-120/12 Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 12 | Impeller stages: 12 | Motor (50 Hz): 1.1 kW | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (50 Hz): 82.7 % | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 706 mm (50 Hz), 723 mm (60 Hz) | A (F type): 698 mm (50 Hz), 715 mm (60 Hz) | B: 340 mm | C: 255 mm (50 Hz), 272 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 19 kg (50 Hz), 34 kg (60 Hz)
ACRK 3-150/15 Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 15 | Impeller stages: 15 | Motor (50 Hz): 1.1 kW | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (50 Hz): 82.7 % | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 760 mm (50 Hz), 777 mm (60 Hz) | A (F type): 752 mm (50 Hz), 769 mm (60 Hz) | B: 394 mm | C: 255 mm (50 Hz), 272 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 20 kg (50 Hz), 35 kg (60 Hz)
ACRK 3-170/17 Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 17 | Impeller stages: 17 | Motor (50 Hz): 1.5 kW | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): 7.2/7.2/4.2/4.0 A | Motor efficiency (50 Hz): 84.2 % | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 796 mm (50 Hz), 813 mm (60 Hz) | A (F type): 788 mm (50 Hz), 805 mm (60 Hz) | B: 430 mm | C: 255 mm (50 Hz), 272 mm (60 Hz) | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 34 kg (50 Hz), 35 kg (60 Hz)
ACRK 3-190/19 Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 19 | Impeller stages: 19 | Motor (50 Hz): 1.5 kW | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): 7.2/7.2/4.2/4.0 A | Motor efficiency (50 Hz): 84.2 % | Current (60 Hz, 200/220/380/440 V): 12.5/11/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 832 mm (50 Hz), 864 mm (60 Hz) | A (F type): 824 mm (50 Hz), 856 mm (60 Hz) | B: 466 mm | C: 255 mm (50 Hz), 287 mm (60 Hz) | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 35 kg (50 Hz), 37 kg (60 Hz)
ACRK 3-250/25 Frequency: 50 Hz only | Nominal flow: 3 m3/h | Chambers: 25 | Impeller stages: 25 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 957 mm | A (F type): 949 mm | B: 574 mm | C: 272 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 38 kg
ACRK 3-300/30 Frequency: 50 Hz only | Nominal flow: 3 m3/h | Chambers: 30 | Impeller stages: 30 | Motor (50 Hz): 2.9 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 12.5/12.5/7.2/6.8 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1062 mm | A (F type): 1054 mm | B: 664 mm | C: 287 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 40 kg
ACRK 3-360/36 Frequency: 50 Hz only | Nominal flow: 3 m3/h | Chambers: 36 | Impeller stages: 36 | Motor (50 Hz): 2.9 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 12.5/12.5/7.2/6.8 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1170 mm | A (F type): 1162 mm | B: 772 mm | C: 287 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 42 kg
ACRK 3-20/2 Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 2 | Impeller stages: 2 | Motor (50 Hz): - | Motor (60 Hz): 0.37 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 2.4/2.2/1.3/1.1 A | Motor efficiency (60 Hz): 68 % | A (B type): 466 mm | A (F type): 458 mm | B: 160 mm | C: 195 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 13 kg
ACRK 3-30/3 Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 3 | Impeller stages: 3 | Motor (50 Hz): - | Motor (60 Hz): 0.55 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 3.0/2.7/1.6/1.4 A | Motor efficiency (60 Hz): 73 % | A (B type): 484 mm | A (F type): 476 mm | B: 178 mm | C: 195 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 13 kg
ACRK 3-50/5 Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 5 | Impeller stages: 5 | Motor (50 Hz): - | Motor (60 Hz): 0.75 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 4.0/3.6/2.1/1.9 A | Motor efficiency (60 Hz): 77 % | A (B type): 560 mm | A (F type): 552 mm | B: 214 mm | C: 235 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 14 kg
ACRK 3-60/6 Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 6 | Impeller stages: 6 | Motor (50 Hz): - | Motor (60 Hz): 1.1 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (60 Hz): 84 % | A (B type): 598 mm | A (F type): 590 mm | B: 232 mm | C: 255 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 16 kg
ACRK 3-80/8 Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 8 | Impeller stages: 8 | Motor (50 Hz): - | Motor (60 Hz): 1.1 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (60 Hz): 84 % | A (B type): 634 mm | A (F type): 626 mm | B: 268 mm | C: 255 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 18 kg
ACRK 3-110/11 Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 11 | Impeller stages: 11 | Motor (50 Hz): - | Motor (60 Hz): 1.5 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 6.6/6/3.5/3.2 A | Motor efficiency (60 Hz): 85.5 % | A (B type): 688 mm | A (F type): 680 mm | B: 322 mm | C: 255 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 32 kg
ACRK 3-230/23 Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 23 | Impeller stages: 23 | Motor (50 Hz): - | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 12.5/1/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 936 mm | A (F type): 928 mm | B: 538 mm | C: 287 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 38 kg
ACRK 3-260/26 Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 26 | Impeller stages: 26 | Motor (50 Hz): - | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 1005 mm | A (F type): 997 mm | B: 592 mm | C: 302 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 52 kg
Coolant PumpsAryung
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung ACRK 3 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (3 m3/h)

Brand Aryung·Coolant Pumps

Available part numbers (18)

ACRK 3-40/4, ACRK 3-70/7, ACRK 3-100/10, ACRK 3-120/12, ACRK 3-150/15, ACRK 3-170/17, ACRK 3-190/19, ACRK 3-250/25, ACRK 3-300/30, ACRK 3-360/36 + 8 more — see full table ↓

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung ACRK 3 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (3 m3/h) reference 2
0 selected
RFQ List (0)
Product codeSpec
ACRK 3-40/4Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 4 | Impeller stages: 4 | Motor (50 Hz): 0.37 kW | Motor (60 Hz): 0.55 kW | Current (50 Hz, 200/220/380/415 V): 2.6/2.4/1.4/1.2 A | Motor efficiency (50 Hz): 68 % | Current (60 Hz, 200/220/380/440 V): 3.0/2.7/1.6/1.4 A | Motor efficiency (60 Hz): 73 % | A (B type): 502 mm | A (F type): 494 mm | B: 196 mm | C: 195 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 13 kg
ACRK 3-70/7Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 7 | Impeller stages: 7 | Motor (50 Hz): 0.55 kW | Motor (60 Hz): 1.1 kW | Current (50 Hz, 200/220/380/415 V): 3.1/2.8/1.6/1.4 A | Motor efficiency (50 Hz): 73 % | Current (60 Hz, 200/220/380/440 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (60 Hz): 84 % | A (B type): 556 mm (50 Hz), 616 mm (60 Hz) | A (F type): 548 mm (50 Hz), 608 mm (60 Hz) | B: 250 mm | C: 195 mm (50 Hz), 255 mm (60 Hz) | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 14 kg (50 Hz), 17 kg (60 Hz)
ACRK 3-100/10Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 10 | Impeller stages: 10 | Motor (50 Hz): 0.75 kW | Motor (60 Hz): 1.5 kW | Current (50 Hz, 200/220/380/415 V): 4.0/3.6/2.1/1.9 A | Motor efficiency (50 Hz): 80.7 % | Current (60 Hz, 200/220/380/440 V): 6.6/6/3.5/3.2 A | Motor efficiency (60 Hz): 85.5 % | A (B type): 650 mm (50 Hz), 670 mm (60 Hz) | A (F type): 642 mm (50 Hz), 662 mm (60 Hz) | B: 304 mm | C: 235 mm (50 Hz), 255 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 16 kg (50 Hz), 32 kg (60 Hz)
ACRK 3-120/12Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 12 | Impeller stages: 12 | Motor (50 Hz): 1.1 kW | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (50 Hz): 82.7 % | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 706 mm (50 Hz), 723 mm (60 Hz) | A (F type): 698 mm (50 Hz), 715 mm (60 Hz) | B: 340 mm | C: 255 mm (50 Hz), 272 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 19 kg (50 Hz), 34 kg (60 Hz)
ACRK 3-150/15Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 15 | Impeller stages: 15 | Motor (50 Hz): 1.1 kW | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (50 Hz): 82.7 % | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 760 mm (50 Hz), 777 mm (60 Hz) | A (F type): 752 mm (50 Hz), 769 mm (60 Hz) | B: 394 mm | C: 255 mm (50 Hz), 272 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 20 kg (50 Hz), 35 kg (60 Hz)
ACRK 3-170/17Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 17 | Impeller stages: 17 | Motor (50 Hz): 1.5 kW | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): 7.2/7.2/4.2/4.0 A | Motor efficiency (50 Hz): 84.2 % | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 796 mm (50 Hz), 813 mm (60 Hz) | A (F type): 788 mm (50 Hz), 805 mm (60 Hz) | B: 430 mm | C: 255 mm (50 Hz), 272 mm (60 Hz) | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 34 kg (50 Hz), 35 kg (60 Hz)
ACRK 3-190/19Frequency: 50/60 Hz | Nominal flow: 3 m3/h | Chambers: 19 | Impeller stages: 19 | Motor (50 Hz): 1.5 kW | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): 7.2/7.2/4.2/4.0 A | Motor efficiency (50 Hz): 84.2 % | Current (60 Hz, 200/220/380/440 V): 12.5/11/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 832 mm (50 Hz), 864 mm (60 Hz) | A (F type): 824 mm (50 Hz), 856 mm (60 Hz) | B: 466 mm | C: 255 mm (50 Hz), 287 mm (60 Hz) | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 35 kg (50 Hz), 37 kg (60 Hz)
ACRK 3-250/25Frequency: 50 Hz only | Nominal flow: 3 m3/h | Chambers: 25 | Impeller stages: 25 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 957 mm | A (F type): 949 mm | B: 574 mm | C: 272 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 38 kg
ACRK 3-300/30Frequency: 50 Hz only | Nominal flow: 3 m3/h | Chambers: 30 | Impeller stages: 30 | Motor (50 Hz): 2.9 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 12.5/12.5/7.2/6.8 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1062 mm | A (F type): 1054 mm | B: 664 mm | C: 287 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 40 kg
ACRK 3-360/36Frequency: 50 Hz only | Nominal flow: 3 m3/h | Chambers: 36 | Impeller stages: 36 | Motor (50 Hz): 2.9 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 12.5/12.5/7.2/6.8 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1170 mm | A (F type): 1162 mm | B: 772 mm | C: 287 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 42 kg
ACRK 3-20/2Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 2 | Impeller stages: 2 | Motor (50 Hz): - | Motor (60 Hz): 0.37 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 2.4/2.2/1.3/1.1 A | Motor efficiency (60 Hz): 68 % | A (B type): 466 mm | A (F type): 458 mm | B: 160 mm | C: 195 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 13 kg
ACRK 3-30/3Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 3 | Impeller stages: 3 | Motor (50 Hz): - | Motor (60 Hz): 0.55 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 3.0/2.7/1.6/1.4 A | Motor efficiency (60 Hz): 73 % | A (B type): 484 mm | A (F type): 476 mm | B: 178 mm | C: 195 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 13 kg
ACRK 3-50/5Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 5 | Impeller stages: 5 | Motor (50 Hz): - | Motor (60 Hz): 0.75 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 4.0/3.6/2.1/1.9 A | Motor efficiency (60 Hz): 77 % | A (B type): 560 mm | A (F type): 552 mm | B: 214 mm | C: 235 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 14 kg
ACRK 3-60/6Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 6 | Impeller stages: 6 | Motor (50 Hz): - | Motor (60 Hz): 1.1 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (60 Hz): 84 % | A (B type): 598 mm | A (F type): 590 mm | B: 232 mm | C: 255 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 16 kg
ACRK 3-80/8Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 8 | Impeller stages: 8 | Motor (50 Hz): - | Motor (60 Hz): 1.1 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (60 Hz): 84 % | A (B type): 634 mm | A (F type): 626 mm | B: 268 mm | C: 255 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 18 kg
ACRK 3-110/11Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 11 | Impeller stages: 11 | Motor (50 Hz): - | Motor (60 Hz): 1.5 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 6.6/6/3.5/3.2 A | Motor efficiency (60 Hz): 85.5 % | A (B type): 688 mm | A (F type): 680 mm | B: 322 mm | C: 255 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 32 kg
ACRK 3-230/23Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 23 | Impeller stages: 23 | Motor (50 Hz): - | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 12.5/1/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 936 mm | A (F type): 928 mm | B: 538 mm | C: 287 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 38 kg
ACRK 3-260/26Frequency: 60 Hz only | Nominal flow: 3 m3/h | Chambers: 26 | Impeller stages: 26 | Motor (50 Hz): - | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 1005 mm | A (F type): 997 mm | B: 592 mm | C: 302 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 52 kg
