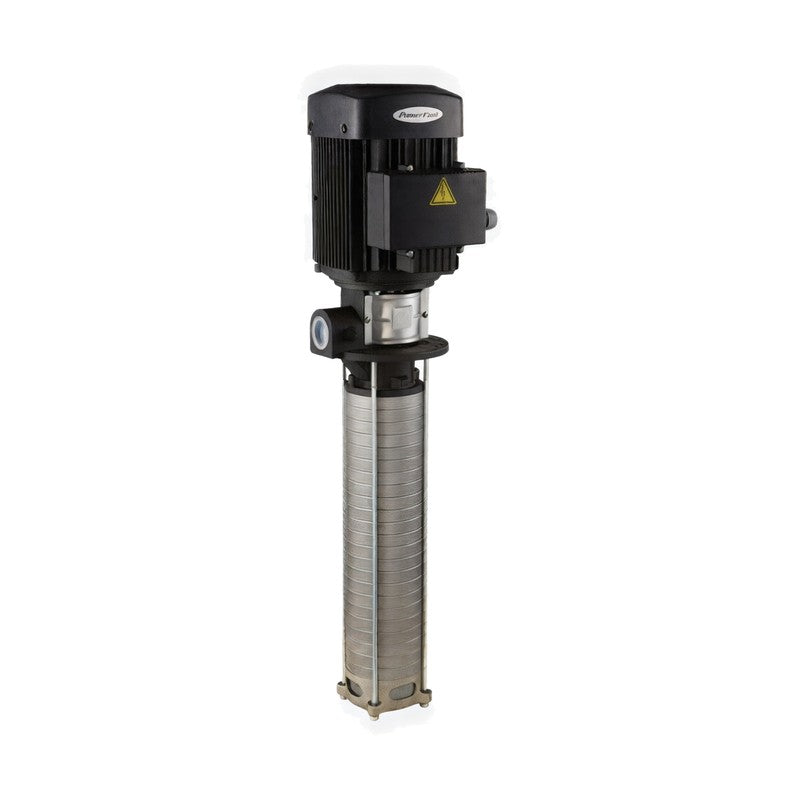

Aryung ACRK 5 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (5 m3/h)

Aryung ACRK 5 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (5 m3/h)

The ACRK series is a high-lift vertical multi-stage centrifugal pump used mainly on high-precision, high-performance machine tools that require high pressure, and is well suited to cooling or cleaning workpieces.

Key features

  • It is used in coolant systems of NC/CNC lathes, machining centers, grinding machines, industrial washing machines and filtration systems
  • Key pump parts are stainless steel and an FKM (fluororubber) mechanical seal is fitted for heat resistance and durability
  • Empty chambers can be used to extend immersion depth for deep tanks
  • Fan-cooled standard motor, IP54, insulation class F; premium-efficiency motors from 750 W
  • Available with flange (F) or screw (B) outlet

Specifications

Nominal flow 5 m3/h
Aryung ACRK 5 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (5 m3/h) reference 2
ACRK 5-40/4 Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 4 | Impeller stages: 4 | Motor (50 Hz): 0.55 kW | Motor (60 Hz): 1.1 kW | Current (50 Hz, 200/220/380/415 V): 3.1/2.8/1.6/1.4 A | Motor efficiency (50 Hz): 73 % | Current (60 Hz, 200/220/380/440 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (60 Hz): 84 % | A (B type): 529 mm (50 Hz), 589 mm (60 Hz) | A (F type): 521 mm (50 Hz), 581 mm (60 Hz) | B: 223 mm | C: 195 mm (50 Hz), 255 mm (60 Hz) | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 14 kg (50 Hz), 17 kg (60 Hz)
ACRK 5-50/5 Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 5 | Impeller stages: 5 | Motor (50 Hz): 0.75 kW | Motor (60 Hz): 1.5 kW | Current (50 Hz, 200/220/380/415 V): 4.0/3.6/2.1/1.9 A | Motor efficiency (50 Hz): 80.7 % | Current (60 Hz, 200/220/380/440 V): 6.6/6/3.5/3.2 A | Motor efficiency (60 Hz): 85.5 % | A (B type): 596 mm (50 Hz), 616 mm (60 Hz) | A (F type): 588 mm (50 Hz), 608 mm (60 Hz) | B: 250 mm | C: 235 mm (50 Hz), 255 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 15 kg (50 Hz), 31 kg (60 Hz)
ACRK 5-80/8 Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 8 | Impeller stages: 8 | Motor (50 Hz): 1.1 kW | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (50 Hz): 82.7 % | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 697 mm (50 Hz), 714 mm (60 Hz) | A (F type): 689 mm (50 Hz), 706 mm (60 Hz) | B: 331 mm | C: 255 mm (50 Hz), 272 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 18 kg (50 Hz), 33 kg (60 Hz)
ACRK 5-100/10 Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 10 | Impeller stages: 10 | Motor (50 Hz): 1.5 kW | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): 7.2/7.2/4.2/4 A | Motor efficiency (50 Hz): 84.2 % | Current (60 Hz, 200/220/380/440 V): 12.5/11/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 751 mm (50 Hz), 783 mm (60 Hz) | A (F type): 743 mm (50 Hz), 775 mm (60 Hz) | B: 385 mm | C: 255 mm (50 Hz), 287 mm (60 Hz) | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 33 kg (50 Hz), 35 kg (60 Hz)
ACRK 5-140/14 Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 14 | Impeller stages: 14 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 876 mm (50 Hz), 906 mm (60 Hz) | A (F type): 868 mm (50 Hz), 898 mm (60 Hz) | B: 493 mm | C: 272 mm (50 Hz), 302 mm (60 Hz) | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 35 kg (50 Hz), 49 kg (60 Hz)
ACRK 5-160/16 Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 16 | Impeller stages: 16 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 930 mm (50 Hz), 960 mm (60 Hz) | A (F type): 922 mm (50 Hz), 952 mm (60 Hz) | B: 547 mm | C: 272 mm (50 Hz), 302 mm (60 Hz) | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 36 kg (50 Hz), 50 kg (60 Hz)
ACRK 5-200/20 Frequency: 50 Hz only | Nominal flow: 5 m3/h | Chambers: 20 | Impeller stages: 20 | Motor (50 Hz): 2.9 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 12.5/12.5/7.2/6.8 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1053 mm | A (F type): 1045 mm | B: 655 mm | C: 287 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 39 kg
ACRK 5-240/24 Frequency: 50 Hz only | Nominal flow: 5 m3/h | Chambers: 24 | Impeller stages: 24 | Motor (50 Hz): 4 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 17.2/17.2/10/9.5 A | Motor efficiency (50 Hz): 88.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1176 mm | A (F type): 1168 mm | B: 763 mm | C: 302 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 53 kg
ACRK 5-290/29 Frequency: 50 Hz only | Nominal flow: 5 m3/h | Chambers: 29 | Impeller stages: 29 | Motor (50 Hz): 4 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 17.2/17.2/10/9.5 A | Motor efficiency (50 Hz): 88.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1311 mm | A (F type): 1303 mm | B: 898 mm | C: 302 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 55 kg
ACRK 5-20/2 Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 2 | Impeller stages: 2 | Motor (50 Hz): - | Motor (60 Hz): 0.55 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 475 mm | A (F type): 467 mm | B: 169 mm | C: 195 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 13 kg
ACRK 5-30/3 Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 3 | Impeller stages: 3 | Motor (50 Hz): - | Motor (60 Hz): 1.1 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (60 Hz): 84 % | A (B type): 562 mm | A (F type): 554 mm | B: 196 mm | C: 255 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 16 kg
ACRK 5-60/6 Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 6 | Impeller stages: 6 | Motor (50 Hz): - | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 660 mm | A (F type): 652 mm | B: 277 mm | C: 272 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 31 kg
ACRK 5-70/7 Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 7 | Impeller stages: 7 | Motor (50 Hz): - | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 687 mm | A (F type): 679 mm | B: 304 mm | C: 272 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 33 kg
ACRK 5-120/12 Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 12 | Impeller stages: 12 | Motor (50 Hz): - | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 12.5/11/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 837 mm | A (F type): 829 mm | B: 439 mm | C: 287 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 36 kg
ACRK 5-220/16 Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 22 | Impeller stages: 16 | Motor (50 Hz): - | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 1122 mm | A (F type): 1114 mm | B: 709 mm | C: 302 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 52 kg
Coolant PumpsAryung
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung ACRK 5 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (5 m3/h)

Brand Aryung·Coolant Pumps

Available part numbers (15)

ACRK 5-40/4, ACRK 5-50/5, ACRK 5-80/8, ACRK 5-100/10, ACRK 5-140/14, ACRK 5-160/16, ACRK 5-200/20, ACRK 5-240/24, ACRK 5-290/29, ACRK 5-20/2 + 5 more — see full table ↓

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung ACRK 5 Series Stainless Steel High-pressure vertical multi-stage centrifugal pump (5 m3/h) reference 2
0 selected
RFQ List (0)
Product codeSpec
ACRK 5-40/4Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 4 | Impeller stages: 4 | Motor (50 Hz): 0.55 kW | Motor (60 Hz): 1.1 kW | Current (50 Hz, 200/220/380/415 V): 3.1/2.8/1.6/1.4 A | Motor efficiency (50 Hz): 73 % | Current (60 Hz, 200/220/380/440 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (60 Hz): 84 % | A (B type): 529 mm (50 Hz), 589 mm (60 Hz) | A (F type): 521 mm (50 Hz), 581 mm (60 Hz) | B: 223 mm | C: 195 mm (50 Hz), 255 mm (60 Hz) | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 14 kg (50 Hz), 17 kg (60 Hz)
ACRK 5-50/5Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 5 | Impeller stages: 5 | Motor (50 Hz): 0.75 kW | Motor (60 Hz): 1.5 kW | Current (50 Hz, 200/220/380/415 V): 4.0/3.6/2.1/1.9 A | Motor efficiency (50 Hz): 80.7 % | Current (60 Hz, 200/220/380/440 V): 6.6/6/3.5/3.2 A | Motor efficiency (60 Hz): 85.5 % | A (B type): 596 mm (50 Hz), 616 mm (60 Hz) | A (F type): 588 mm (50 Hz), 608 mm (60 Hz) | B: 250 mm | C: 235 mm (50 Hz), 255 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 15 kg (50 Hz), 31 kg (60 Hz)
ACRK 5-80/8Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 8 | Impeller stages: 8 | Motor (50 Hz): 1.1 kW | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (50 Hz): 82.7 % | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 697 mm (50 Hz), 714 mm (60 Hz) | A (F type): 689 mm (50 Hz), 706 mm (60 Hz) | B: 331 mm | C: 255 mm (50 Hz), 272 mm (60 Hz) | D1: 141 mm (50 Hz), 183 mm (60 Hz) | E: 70.5 mm (50 Hz), 91.5 mm (60 Hz) | F: 102 mm (50 Hz), 150 mm (60 Hz) | Weight: 18 kg (50 Hz), 33 kg (60 Hz)
ACRK 5-100/10Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 10 | Impeller stages: 10 | Motor (50 Hz): 1.5 kW | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): 7.2/7.2/4.2/4 A | Motor efficiency (50 Hz): 84.2 % | Current (60 Hz, 200/220/380/440 V): 12.5/11/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 751 mm (50 Hz), 783 mm (60 Hz) | A (F type): 743 mm (50 Hz), 775 mm (60 Hz) | B: 385 mm | C: 255 mm (50 Hz), 287 mm (60 Hz) | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 33 kg (50 Hz), 35 kg (60 Hz)
ACRK 5-140/14Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 14 | Impeller stages: 14 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 876 mm (50 Hz), 906 mm (60 Hz) | A (F type): 868 mm (50 Hz), 898 mm (60 Hz) | B: 493 mm | C: 272 mm (50 Hz), 302 mm (60 Hz) | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 35 kg (50 Hz), 49 kg (60 Hz)
ACRK 5-160/16Frequency: 50/60 Hz | Nominal flow: 5 m3/h | Chambers: 16 | Impeller stages: 16 | Motor (50 Hz): 2.2 kW | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): 9.8/9.8/5.7/5.4 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 930 mm (50 Hz), 960 mm (60 Hz) | A (F type): 922 mm (50 Hz), 952 mm (60 Hz) | B: 547 mm | C: 272 mm (50 Hz), 302 mm (60 Hz) | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 36 kg (50 Hz), 50 kg (60 Hz)
ACRK 5-200/20Frequency: 50 Hz only | Nominal flow: 5 m3/h | Chambers: 20 | Impeller stages: 20 | Motor (50 Hz): 2.9 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 12.5/12.5/7.2/6.8 A | Motor efficiency (50 Hz): 85.9 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1053 mm | A (F type): 1045 mm | B: 655 mm | C: 287 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 39 kg
ACRK 5-240/24Frequency: 50 Hz only | Nominal flow: 5 m3/h | Chambers: 24 | Impeller stages: 24 | Motor (50 Hz): 4 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 17.2/17.2/10/9.5 A | Motor efficiency (50 Hz): 88.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1176 mm | A (F type): 1168 mm | B: 763 mm | C: 302 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 53 kg
ACRK 5-290/29Frequency: 50 Hz only | Nominal flow: 5 m3/h | Chambers: 29 | Impeller stages: 29 | Motor (50 Hz): 4 kW | Motor (60 Hz): - | Current (50 Hz, 200/220/380/415 V): 17.2/17.2/10/9.5 A | Motor efficiency (50 Hz): 88.1 % | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 1311 mm | A (F type): 1303 mm | B: 898 mm | C: 302 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 55 kg
ACRK 5-20/2Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 2 | Impeller stages: 2 | Motor (50 Hz): - | Motor (60 Hz): 0.55 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): - | Motor efficiency (60 Hz): - | A (B type): 475 mm | A (F type): 467 mm | B: 169 mm | C: 195 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 13 kg
ACRK 5-30/3Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 3 | Impeller stages: 3 | Motor (50 Hz): - | Motor (60 Hz): 1.1 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 5.3/4.8/2.8/2.6 A | Motor efficiency (60 Hz): 84 % | A (B type): 562 mm | A (F type): 554 mm | B: 196 mm | C: 255 mm | D1: 141 mm | E: 70.5 mm | F: 102 mm | Weight: 16 kg
ACRK 5-60/6Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 6 | Impeller stages: 6 | Motor (50 Hz): - | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 660 mm | A (F type): 652 mm | B: 277 mm | C: 272 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 31 kg
ACRK 5-70/7Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 7 | Impeller stages: 7 | Motor (50 Hz): - | Motor (60 Hz): 2.2 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 9.6/8.7/5/4.5 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 687 mm | A (F type): 679 mm | B: 304 mm | C: 272 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 33 kg
ACRK 5-120/12Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 12 | Impeller stages: 12 | Motor (50 Hz): - | Motor (60 Hz): 2.9 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 12.5/11/6.4/6.1 A | Motor efficiency (60 Hz): 86.5 % | A (B type): 837 mm | A (F type): 829 mm | B: 439 mm | C: 287 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 36 kg
ACRK 5-220/16Frequency: 60 Hz only | Nominal flow: 5 m3/h | Chambers: 22 | Impeller stages: 16 | Motor (50 Hz): - | Motor (60 Hz): 4 kW | Current (50 Hz, 200/220/380/415 V): - | Motor efficiency (50 Hz): - | Current (60 Hz, 200/220/380/440 V): 17.0/15.4/8.9/8.5 A | Motor efficiency (60 Hz): 88.5 % | A (B type): 1122 mm | A (F type): 1114 mm | B: 709 mm | C: 302 mm | D1: 183 mm | E: 91.5 mm | F: 150 mm | Weight: 52 kg
