• Aryung AGP-15 Series Electric Grease Pump (2.0 L / Cartridge)
1 1

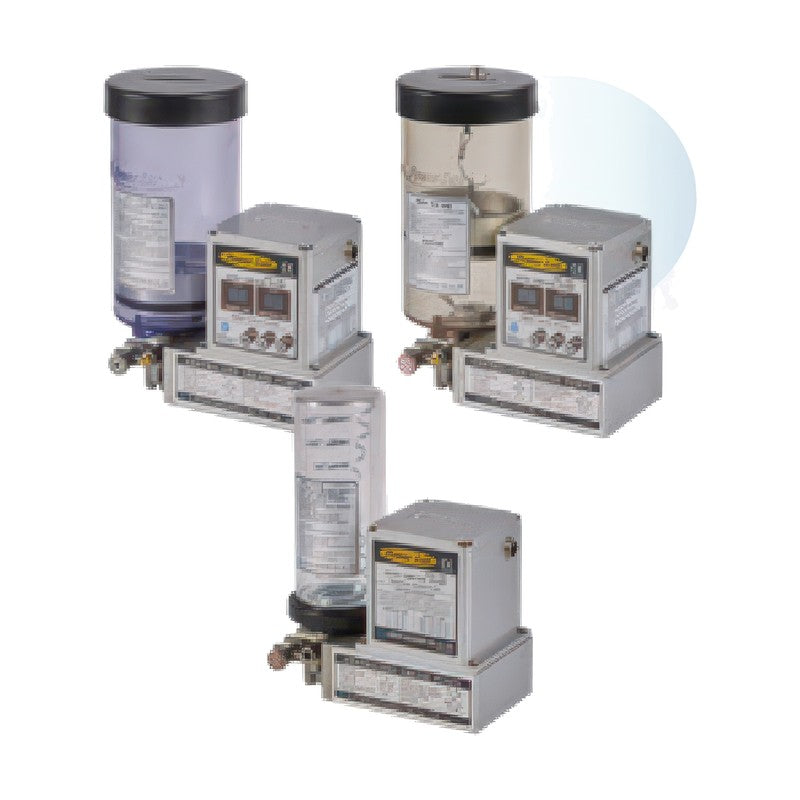

Aryung AGP-15 Series Electric Grease Pump (2.0 L / Cartridge)

Aryung AGP-15 Series Electric Grease Pump (2.0 L / Cartridge)

Small electric grease pump for systems with few lubrication points and short distances, lubricating several points with ARU-R progressive distributors.

Key features

  • AGP-15M has no controller of its own and is controlled by the machine; AGP-15C has a built-in digital controller for stop and discharge time
  • The -CT versions use replaceable grease cartridges for clean, quick refilling
  • Built-in relief valve controls working pressure
  • Used on presses, conveyors, cranes, special vehicles, ships, paper machines and industrial machinery

Specifications

Discharge volume 12 cc/min
Working pressure 10.0 MPa
Pressure range 2 ~ 12 MPa
NLGI No. #000 ~ #1
Outlet PT 1/4"
Motor 1-phase 2-pole 90 W
Rated voltage / current 50 Hz 100/200 V, 1.8/0.9 A
Rated voltage / current 60 Hz 110/220 V, 1.8/0.9 A
Aryung AGP-15 Series Electric Grease Pump (2.0 L / Cartridge) reference 2Aryung AGP-15 Series Electric Grease Pump (2.0 L / Cartridge) reference 3
AGP-15M Discharge volume: 12 cc/min | Working pressure: 10.0 MPa | Pressure range: 2 ~ 12 MPa | Reservoir capacity: 2.0 L | NLGI No.: #000 ~ #1 | Outlet: PT 1/4" | Refilling method: filling | Net weight: 9.5 kg | Motor: 1-phase 2-pole 90 W | Rated voltage / current 50 Hz: 100/200 V, 1.8/0.9 A | Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A | Control: machine side
AGP-15C Discharge volume: 12 cc/min | Working pressure: 10.0 MPa | Pressure range: 2 ~ 12 MPa | Reservoir capacity: 2.0 L | NLGI No.: #000 ~ #1 | Outlet: PT 1/4" | Refilling method: filling | Net weight: 9.6 kg | Motor: 1-phase 2-pole 90 W | Rated voltage / current 50 Hz: 100/200 V, 1.8/0.9 A | Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A | Control: built-in digital
AGP-15M-CT Discharge volume: 12 cc/min | Working pressure: 10.0 MPa | Pressure range: 2 ~ 12 MPa | Reservoir capacity: 0.7 L | NLGI No.: #000 ~ #1 | Outlet: PT 1/4" | Refilling method: cartridge | Net weight: 8.7 kg | Motor: 1-phase 2-pole 90 W | Rated voltage / current 50 Hz: 100/200 V, 1.8/0.9 A | Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A | Control: machine side
AGP-15C-CT Discharge volume: 12 cc/min | Working pressure: 10.0 MPa | Pressure range: 2 ~ 12 MPa | Reservoir capacity: 0.7 L | NLGI No.: #000 ~ #1 | Outlet: PT 1/4" | Refilling method: cartridge | Net weight: 8.8 kg | Motor: 1-phase 2-pole 90 W | Rated voltage / current 50 Hz: 100/200 V, 1.8/0.9 A | Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A | Control: built-in digital
Grease Lubrication PumpsAryung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AGP-15 Series Electric Grease Pump (2.0 L / Cartridge)

Brand Aryung·Grease Lubrication Pumps

Available part numbers (4)

AGP-15M, AGP-15C, AGP-15M-CT, AGP-15C-CT

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AGP-15 Series Electric Grease Pump (2.0 L / Cartridge) reference 2Aryung AGP-15 Series Electric Grease Pump (2.0 L / Cartridge) reference 3
0 selected
RFQ List (0)
Product codeSpec
AGP-15MDischarge volume: 12 cc/min | Working pressure: 10.0 MPa | Pressure range: 2 ~ 12 MPa | Reservoir capacity: 2.0 L | NLGI No.: #000 ~ #1 | Outlet: PT 1/4" | Refilling method: filling | Net weight: 9.5 kg | Motor: 1-phase 2-pole 90 W | Rated voltage / current 50 Hz: 100/200 V, 1.8/0.9 A | Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A | Control: machine side
AGP-15CDischarge volume: 12 cc/min | Working pressure: 10.0 MPa | Pressure range: 2 ~ 12 MPa | Reservoir capacity: 2.0 L | NLGI No.: #000 ~ #1 | Outlet: PT 1/4" | Refilling method: filling | Net weight: 9.6 kg | Motor: 1-phase 2-pole 90 W | Rated voltage / current 50 Hz: 100/200 V, 1.8/0.9 A | Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A | Control: built-in digital
AGP-15M-CTDischarge volume: 12 cc/min | Working pressure: 10.0 MPa | Pressure range: 2 ~ 12 MPa | Reservoir capacity: 0.7 L | NLGI No.: #000 ~ #1 | Outlet: PT 1/4" | Refilling method: cartridge | Net weight: 8.7 kg | Motor: 1-phase 2-pole 90 W | Rated voltage / current 50 Hz: 100/200 V, 1.8/0.9 A | Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A | Control: machine side
AGP-15C-CTDischarge volume: 12 cc/min | Working pressure: 10.0 MPa | Pressure range: 2 ~ 12 MPa | Reservoir capacity: 0.7 L | NLGI No.: #000 ~ #1 | Outlet: PT 1/4" | Refilling method: cartridge | Net weight: 8.8 kg | Motor: 1-phase 2-pole 90 W | Rated voltage / current 50 Hz: 100/200 V, 1.8/0.9 A | Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A | Control: built-in digital
