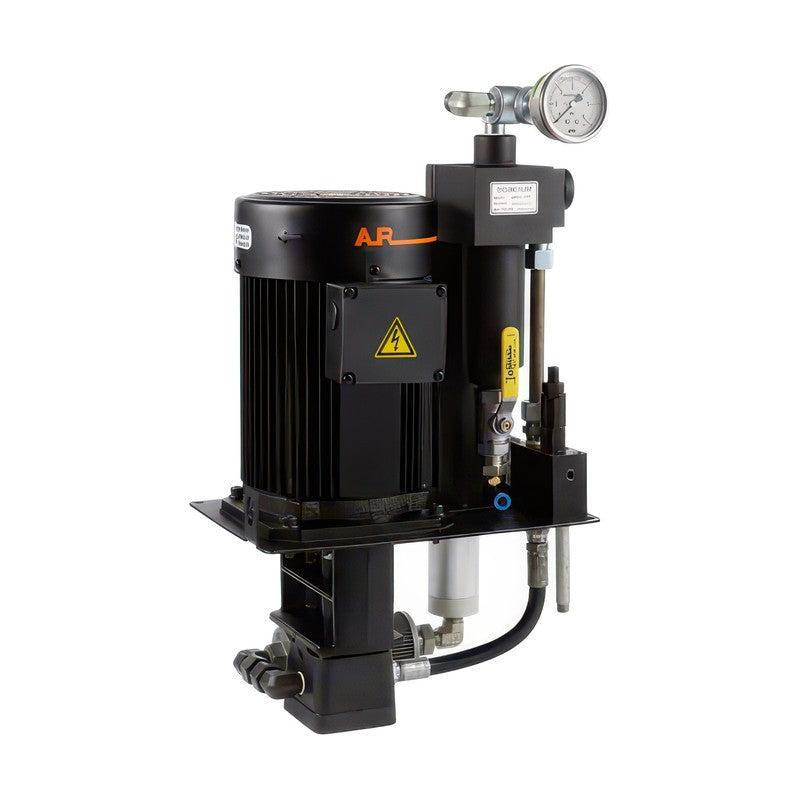

Aryung AHGU Series Submerged High Pressure Gear Pump Coolant Unit (20-50 bar)

Aryung AHGU Series Submerged High Pressure Gear Pump Coolant Unit (20-50 bar)

The AHGU is a pump-stand-integrated submerged high pressure coolant unit for water-soluble coolant, easy to install on and remove from the machine tool coolant tank for convenient maintenance.

Key features

  • It uses a G17 gear pump with pressure settings of 20, 30, 40 or 50 bar
  • An optional 150-mesh suction filter with air-actuator automatic backwash cleaning keeps maintenance cost low; cleaning can be controlled by its own controller or by the machine PLC via solenoid
  • Built-in relief valve and discharge pressure gauge; discharge pressure switch (2 bar), discharge-side cyclone filter and internal/external relief valve (5-70 bar) optional

Specifications

High pressure pump G17 gear pump
Flow 50/60Hz 23 / 28 L/min
Max pressure 1.5/2.2/4.0 kW 2.0 / 3.0 / 5.0 MPa
Motor 1.5 / 2.2 / 4.0 kW 3-phase 4P IE3
Relief valve range 5-70 bar
Aryung AHGU Series Submerged High Pressure Gear Pump Coolant Unit (20-50 bar) reference 2Aryung AHGU Series Submerged High Pressure Gear Pump Coolant Unit (20-50 bar) reference 3
AHGU-G17 Unit stand type with relief valve, solenoid valve and control box | Type: Stand type (immersion) | High pressure pump: G17 gear pump | Flow 50/60Hz: 23 / 28 L/min | Max pressure 1.5/2.2/4.0 kW: 2.0 / 3.0 / 5.0 MPa | Motor: 1.5 / 2.2 / 4.0 kW 3-phase 4P IE3 | Suction filter: 150 mesh, air-actuator auto cleaning | Air pressure: 0.4-0.6 MPa | Relief valve range: 5-70 bar
AHGU-G17-C20 Unit base type with cyclone filter option, without solenoid valve and control box | Type: Base type | High pressure pump: G17 gear pump | Flow 50/60Hz: 23 / 28 L/min | Max pressure 1.5/2.2/4.0 kW: 2.0 / 3.0 / 5.0 MPa | Motor: 1.5 / 2.2 / 4.0 kW 3-phase 4P IE3 | Cyclone filter: Option | Relief valve range: 5-70 bar
High Pressure Coolant SystemsAryung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AHGU Series Submerged High Pressure Gear Pump Coolant Unit (20-50 bar)

Brand Aryung·High Pressure Coolant Systems

Available part numbers (2)

AHGU-G17, AHGU-G17-C20

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AHGU Series Submerged High Pressure Gear Pump Coolant Unit (20-50 bar) reference 2Aryung AHGU Series Submerged High Pressure Gear Pump Coolant Unit (20-50 bar) reference 3
0 selected
RFQ List (0)
Product codeSpec
AHGU-G17Unit stand type with relief valve, solenoid valve and control box | Type: Stand type (immersion) | High pressure pump: G17 gear pump | Flow 50/60Hz: 23 / 28 L/min | Max pressure 1.5/2.2/4.0 kW: 2.0 / 3.0 / 5.0 MPa | Motor: 1.5 / 2.2 / 4.0 kW 3-phase 4P IE3 | Suction filter: 150 mesh, air-actuator auto cleaning | Air pressure: 0.4-0.6 MPa | Relief valve range: 5-70 bar
AHGU-G17-C20Unit base type with cyclone filter option, without solenoid valve and control box | Type: Base type | High pressure pump: G17 gear pump | Flow 50/60Hz: 23 / 28 L/min | Max pressure 1.5/2.2/4.0 kW: 2.0 / 3.0 / 5.0 MPa | Motor: 1.5 / 2.2 / 4.0 kW 3-phase 4P IE3 | Cyclone filter: Option | Relief valve range: 5-70 bar
