Aryung ALP-7LH Manual Lever Oil Lubrication Pump (800 cc, Adjustable)

Aryung ALP-7LH Manual Lever Oil Lubrication Pump (800 cc, Adjustable)

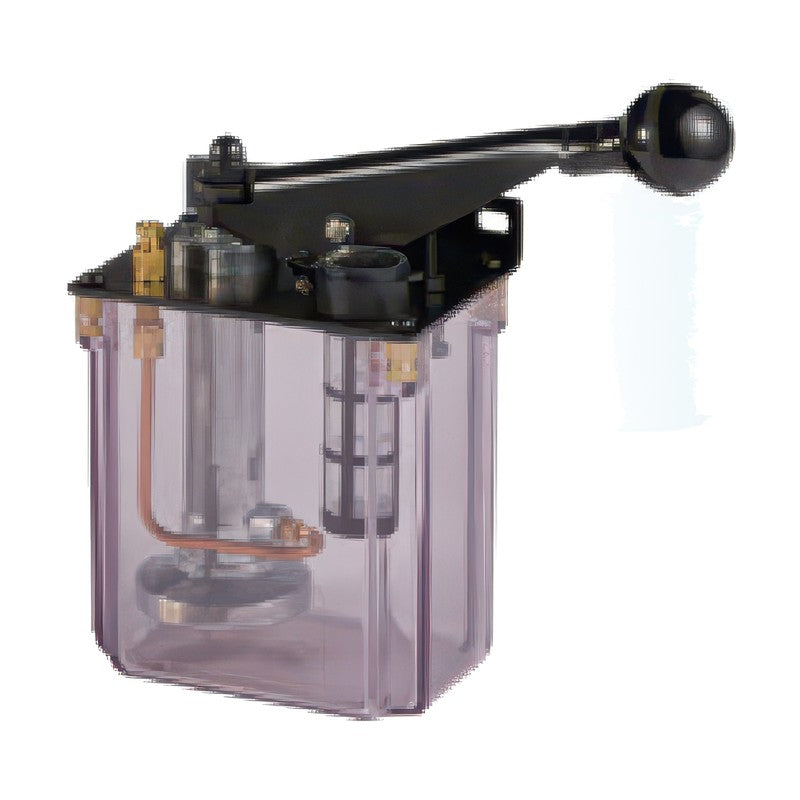

Manual lever oil lubrication pump with built-in check valve to prevent backflow.

Key features

  • Discharge amount is adjustable and it can lubricate 20 to 40 points
  • Plastic tank with steel top; proportional lubrication, handle available left or right
  • Used on general-purpose machine tools, textile, printing and injection machines

Specifications

Discharge volume 2 ~ 7 cc/stroke
Max pressure 0.55 MPa
Supply capacity 1 ~ 40 points
Reservoir capacity 800 cc
Viscosity 30 ~ 1300 cSt
Outlet PT 1/8"
Net weight 1.2 kg
Handle direction L / R
Aryung ALP-7LH Manual Lever Oil Lubrication Pump (800 cc, Adjustable) reference 2
ALP-7LH Discharge volume: 2 ~ 7 cc/stroke | Max pressure: 0.55 MPa | Supply capacity: 1 ~ 40 points | Reservoir capacity: 800 cc | Viscosity: 30 ~ 1300 cSt | Outlet: PT 1/8" | Net weight: 1.2 kg | Handle direction: L / R
Oil Lubrication PumpsAryung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung ALP-7LH Manual Lever Oil Lubrication Pump (800 cc, Adjustable)

Brand Aryung·Oil Lubrication Pumps

Available part numbers (1)

ALP-7LH

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung ALP-7LH Manual Lever Oil Lubrication Pump (800 cc, Adjustable) reference 2
0 selected
RFQ List (0)
Product codeSpec
ALP-7LHDischarge volume: 2 ~ 7 cc/stroke | Max pressure: 0.55 MPa | Supply capacity: 1 ~ 40 points | Reservoir capacity: 800 cc | Viscosity: 30 ~ 1300 cSt | Outlet: PT 1/8" | Net weight: 1.2 kg | Handle direction: L / R
