• Aryung AMGP-013(F)/015(F) Analog Control Oil Lubrication Pump (1.8 L)
1 1

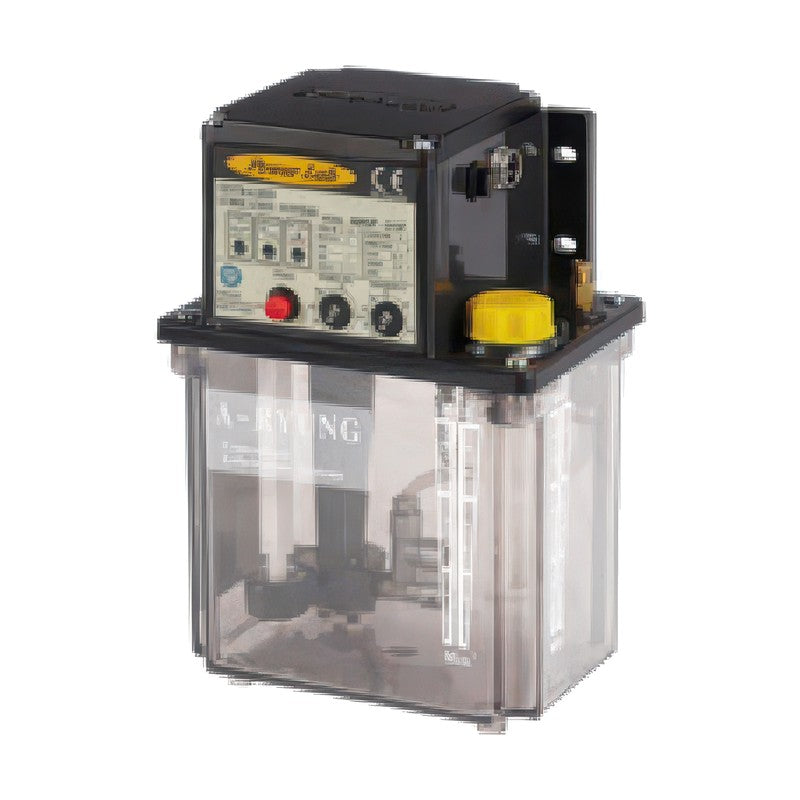

Aryung AMGP-013(F)/015(F) Analog Control Oil Lubrication Pump (1.8 L)

Aryung AMGP-013(F)/015(F) Analog Control Oil Lubrication Pump (1.8 L)

Motor gear oil lubrication pump supplied intermittently by a built-in analog timer and used with DB proportional distributors.

Key features

  • Dustproof construction makes it suitable for machinery with shock and vibration
  • An optional oil level switch gives a low-oil warning and external signal, and a front FEED button allows manual lubrication
  • Case is plastic with an aluminum cover, plastic tank and steel gear pump
  • Applications include high-speed presses, injection molding machines, machine tools and general industrial machines

Specifications

Working pressure 0.8 MPa
Reservoir capacity 1.8 L
Viscosity 30 ~ 500 cSt
Outlet PT 1/8" (Ø4)
Net weight 2.8 kg
Motor 1-phase 2-pole 15 W
Rated voltage / current 50 Hz 100/200 V, 1.4/0.7 A
Rated voltage / current 60 Hz 110/220 V, 1.2/0.6 A
Aryung AMGP-013(F)/015(F) Analog Control Oil Lubrication Pump (1.8 L) reference 2
AMGP-013 Discharge volume: 5 ~ 100 cc | Stop time: 3 ~ 30 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: none
AMGP-013F Discharge volume: 5 ~ 100 cc | Stop time: 3 ~ 30 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: mounted
AMGP-015 Discharge volume: 5 ~ 80 cc | Stop time: 30 ~ 120 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: none
AMGP-015F Discharge volume: 5 ~ 80 cc | Stop time: 30 ~ 120 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: mounted
Oil Lubrication PumpsAryung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMGP-013(F)/015(F) Analog Control Oil Lubrication Pump (1.8 L)

Brand Aryung·Oil Lubrication Pumps

Available part numbers (4)

AMGP-013, AMGP-013F, AMGP-015, AMGP-015F

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AMGP-013(F)/015(F) Analog Control Oil Lubrication Pump (1.8 L) reference 2
0 selected
RFQ List (0)
Product codeSpec
AMGP-013Discharge volume: 5 ~ 100 cc | Stop time: 3 ~ 30 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: none
AMGP-013FDischarge volume: 5 ~ 100 cc | Stop time: 3 ~ 30 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: mounted
AMGP-015Discharge volume: 5 ~ 80 cc | Stop time: 30 ~ 120 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: none
AMGP-015FDischarge volume: 5 ~ 80 cc | Stop time: 30 ~ 120 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: mounted
