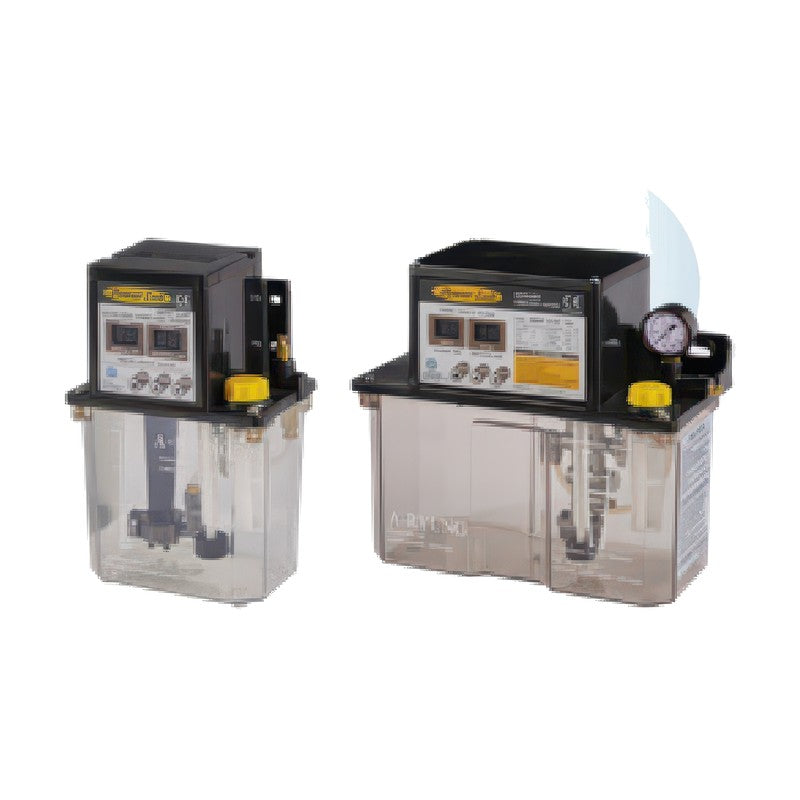

Aryung AMGP-01A(F) Digital Control Oil Lubrication Pump (1.8-3.0 L)

Motor gear oil lubrication pump that supplies oil intermittently under control of its own built-in digital timer.

Key features

Proportional types (01A, 01AF, 01AF-T03) are combined with DB proportional distributors; quantitative types (01AF-T, 01AF-T03-T) are combined with ARD-340/350 and PVO metering valves
The digital controller shows operating status in numbers and letters, and interval time (1-99 min) and discharge time (1-99 s) are easy to set
An optional float switch sounds an alarm and signals an external controller when the oil level is low, and a front FEED button allows manual lubrication and air purging
Widely used on machine tools, printing, food, textile and injection machines

Specifications

Viscosity	30 ~ 500 cSt
Outlet	PT 1/8" (Ø4)

Aryung AMGP-01A(F) Digital Control Oil Lubrication Pump (1.8-3.0 L) reference 2

AMGP-01A		Discharge volume: 85 (50 Hz) / 100 (60 Hz) cc/min \| Working pressure: 0.8 MPa \| Pressure range: 0.2 ~ 1.7 MPa \| Reservoir capacity: 1.8 L \| Viscosity: 30 ~ 500 cSt \| Outlet: PT 1/8" (Ø4) \| Net weight: 2.8 kg \| Motor: 1-phase 2-pole 15 W \| Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A \| Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A \| Level switch: none \| Lubrication method: proportional
AMGP-01AF		Discharge volume: 85 (50 Hz) / 100 (60 Hz) cc/min \| Working pressure: 0.8 MPa \| Pressure range: 0.2 ~ 1.7 MPa \| Reservoir capacity: 1.8 L \| Viscosity: 30 ~ 500 cSt \| Outlet: PT 1/8" (Ø4) \| Net weight: 2.8 kg \| Motor: 1-phase 2-pole 15 W \| Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A \| Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A \| Level switch: mounted \| Lubrication method: proportional
AMGP-01AF-T		Discharge volume: 85 (50 Hz) / 100 (60 Hz) cc/min \| Working pressure: 1.7 MPa \| Pressure range: 0.2 ~ 1.7 MPa \| Reservoir capacity: 1.8 L \| Viscosity: 30 ~ 500 cSt \| Outlet: PT 1/8" (Ø4) \| Net weight: 2.8 kg \| Motor: 1-phase 2-pole 15 W \| Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A \| Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A \| Level switch: mounted \| Lubrication method: quantitative
AMGP-01AF-T03		Discharge volume: 125 (50 Hz) / 150 (60 Hz) cc/min \| Working pressure: 0.8 MPa \| Pressure range: 0.2 ~ 2.0 MPa \| Reservoir capacity: 3.0 L \| Viscosity: 30 ~ 500 cSt \| Outlet: PT 1/8" (Ø4) \| Net weight: 4.7 kg \| Motor: 1-phase 2-pole 25 W \| Rated voltage / current 50 Hz: 100/200 V, 2.0/1.0 A \| Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A \| Level switch: mounted \| Lubrication method: proportional
AMGP-01AF-T03-T		Discharge volume: 125 (50 Hz) / 150 (60 Hz) cc/min \| Working pressure: 1.7 MPa \| Pressure range: 0.2 ~ 2.0 MPa \| Reservoir capacity: 3.0 L \| Viscosity: 30 ~ 500 cSt \| Outlet: PT 1/8" (Ø4) \| Net weight: 4.7 kg \| Motor: 1-phase 2-pole 25 W \| Rated voltage / current 50 Hz: 100/200 V, 2.0/1.0 A \| Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A \| Level switch: mounted \| Lubrication method: quantitative

Oil Lubrication PumpsAryung

5 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMGP-01A(F) Digital Control Oil Lubrication Pump (1.8-3.0 L)

Brand Aryung·Oil Lubrication Pumps

Available part numbers (5)

AMGP-01A, AMGP-01AF, AMGP-01AF-T, AMGP-01AF-T03, AMGP-01AF-T03-T

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AMGP-01A	Discharge volume: 85 (50 Hz) / 100 (60 Hz) cc/min \| Working pressure: 0.8 MPa \| Pressure range: 0.2 ~ 1.7 MPa \| Reservoir capacity: 1.8 L \| Viscosity: 30 ~ 500 cSt \| Outlet: PT 1/8" (Ø4) \| Net weight: 2.8 kg \| Motor: 1-phase 2-pole 15 W \| Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A \| Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A \| Level switch: none \| Lubrication method: proportional
	AMGP-01AF	Discharge volume: 85 (50 Hz) / 100 (60 Hz) cc/min \| Working pressure: 0.8 MPa \| Pressure range: 0.2 ~ 1.7 MPa \| Reservoir capacity: 1.8 L \| Viscosity: 30 ~ 500 cSt \| Outlet: PT 1/8" (Ø4) \| Net weight: 2.8 kg \| Motor: 1-phase 2-pole 15 W \| Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A \| Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A \| Level switch: mounted \| Lubrication method: proportional
	AMGP-01AF-T	Discharge volume: 85 (50 Hz) / 100 (60 Hz) cc/min \| Working pressure: 1.7 MPa \| Pressure range: 0.2 ~ 1.7 MPa \| Reservoir capacity: 1.8 L \| Viscosity: 30 ~ 500 cSt \| Outlet: PT 1/8" (Ø4) \| Net weight: 2.8 kg \| Motor: 1-phase 2-pole 15 W \| Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A \| Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A \| Level switch: mounted \| Lubrication method: quantitative
	AMGP-01AF-T03	Discharge volume: 125 (50 Hz) / 150 (60 Hz) cc/min \| Working pressure: 0.8 MPa \| Pressure range: 0.2 ~ 2.0 MPa \| Reservoir capacity: 3.0 L \| Viscosity: 30 ~ 500 cSt \| Outlet: PT 1/8" (Ø4) \| Net weight: 4.7 kg \| Motor: 1-phase 2-pole 25 W \| Rated voltage / current 50 Hz: 100/200 V, 2.0/1.0 A \| Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A \| Level switch: mounted \| Lubrication method: proportional
	AMGP-01AF-T03-T	Discharge volume: 125 (50 Hz) / 150 (60 Hz) cc/min \| Working pressure: 1.7 MPa \| Pressure range: 0.2 ~ 2.0 MPa \| Reservoir capacity: 3.0 L \| Viscosity: 30 ~ 500 cSt \| Outlet: PT 1/8" (Ø4) \| Net weight: 4.7 kg \| Motor: 1-phase 2-pole 25 W \| Rated voltage / current 50 Hz: 100/200 V, 2.0/1.0 A \| Rated voltage / current 60 Hz: 110/220 V, 1.8/0.9 A \| Level switch: mounted \| Lubrication method: quantitative
