• Aryung AMGP-01S(F) Analog Control Oil Lubrication Pump (1.8 L)
1 1

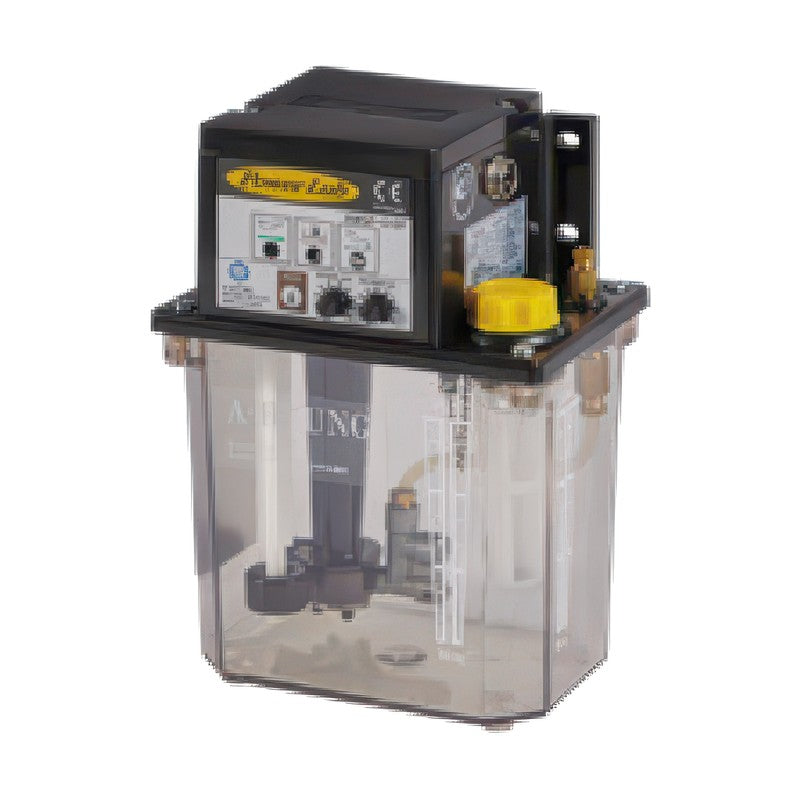

Aryung AMGP-01S(F) Analog Control Oil Lubrication Pump (1.8 L)

Aryung AMGP-01S(F) Analog Control Oil Lubrication Pump (1.8 L)

Compact motor gear oil lubrication pump supplied intermittently by a built-in analog timer and used with DB proportional distributors.

Key features

  • Its dustproof design suits machinery with heavy shock and vibration and gives very good durability
  • An optional oil level switch sounds a low-oil warning and can signal an external controller; a front FEED button allows manual lubrication and air purging
  • Applications include high-speed presses, injection molding machines, machine tools, printing, food and textile machines

Specifications

Discharge volume 3 ~ 85 cc
Stop time 2 ~ 100 min
Working pressure 0.8 MPa
Reservoir capacity 1.8 L
Viscosity 30 ~ 500 cSt
Outlet PT 1/8" (Ø4)
Net weight 2.8 kg
Motor 1-phase 2-pole 15 W
Rated voltage / current 50 Hz 100/200 V, 1.4/0.7 A
Rated voltage / current 60 Hz 110/220 V, 1.2/0.6 A
Aryung AMGP-01S(F) Analog Control Oil Lubrication Pump (1.8 L) reference 2
AMGP-01S Discharge volume: 3 ~ 85 cc | Stop time: 2 ~ 100 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: none
AMGP-01SF Discharge volume: 3 ~ 85 cc | Stop time: 2 ~ 100 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: mounted
Oil Lubrication PumpsAryung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMGP-01S(F) Analog Control Oil Lubrication Pump (1.8 L)

Brand Aryung·Oil Lubrication Pumps

Available part numbers (2)

AMGP-01S, AMGP-01SF

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Aryung AMGP-01S(F) Analog Control Oil Lubrication Pump (1.8 L) reference 2
0 selected
RFQ List (0)
Product codeSpec
AMGP-01SDischarge volume: 3 ~ 85 cc | Stop time: 2 ~ 100 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: none
AMGP-01SFDischarge volume: 3 ~ 85 cc | Stop time: 2 ~ 100 min | Working pressure: 0.8 MPa | Reservoir capacity: 1.8 L | Viscosity: 30 ~ 500 cSt | Outlet: PT 1/8" (Ø4) | Net weight: 2.8 kg | Motor: 1-phase 2-pole 15 W | Rated voltage / current 50 Hz: 100/200 V, 1.4/0.7 A | Rated voltage / current 60 Hz: 110/220 V, 1.2/0.6 A | Level switch: mounted
