• Aryung AMGP-03/05 3-Phase High-Flow Oil Lubrication Unit (3-20 L Steel Tank)
1 1

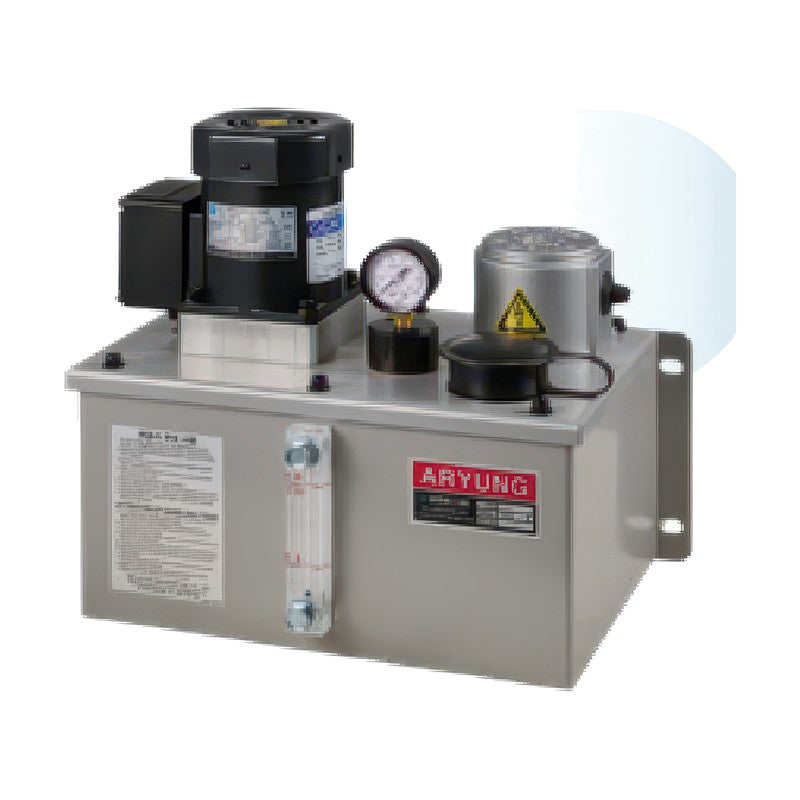

Aryung AMGP-03/05 3-Phase High-Flow Oil Lubrication Unit (3-20 L Steel Tank)

Aryung AMGP-03/05 3-Phase High-Flow Oil Lubrication Unit (3-20 L Steel Tank)

High-precision, high-flow 3-phase motor gear pump unit designed to supply a fixed amount of lubricant to each machine element.

Key features

  • Used as a proportional pump or with ARD-340/350 and PVO metering valves as a quantitative pump (a pressure relief valve is required for quantitative use)
  • Built-in relief valve for pressure adjustment; easily assembled with 3-20 L steel tanks for wall (TY) or floor (TZ) mounting
  • Includes FS-A level switch and PG-35K pressure gauge, pressure switch optional
  • Intermittent duty only

Specifications

Working pressure 2.0 MPa
Pressure range 0.8 ~ 2.5 MPa
Viscosity 30 ~ 1000 cSt
Outlet PT 1/8" (Ø6)
Motor 3-phase 4-pole 50 W
Rated voltage / current 50 Hz 200/380/415 V, 0.54/0.31/0.27 A
Rated voltage / current 60 Hz 200/380/440 V, 0.6/0.35/0.3 A
J 160 mm
AMGP-03-T03 Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 3.0 L | Net weight: 9.6 kg | A: 280 mm | B: 300 mm | C: 320 mm | D: 290 mm | E: 135 mm | F: 150 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm
AMGP-03-T06 Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 6.0 L | Net weight: 11 kg | A: 300 mm | B: 320 mm | C: 346 mm | D: 310 mm | E: 195 mm | F: 210 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm
AMGP-03-T12 Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 12.0 L | Net weight: 13 kg | A: 363 mm | B: 386 mm | C: 416 mm | D: 373 mm | E: 234 mm | F: 240 mm | G: 11 x 16 mm | H: 24 mm | J: 160 mm
AMGP-03-T20 Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 20.0 L | Net weight: 17 kg | A: 470 mm | B: 500 mm | C: 520 mm | D: 484 mm | E: 317 mm | F: 322 mm | G: 12 x 17 mm | H: 29 mm | J: 160 mm
AMGP-05-T03 Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 3.0 L | Net weight: 9.6 kg | A: 280 mm | B: 300 mm | C: 320 mm | D: 290 mm | E: 135 mm | F: 150 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm
AMGP-05-T06 Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 6.0 L | Net weight: 11 kg | A: 300 mm | B: 320 mm | C: 346 mm | D: 310 mm | E: 195 mm | F: 210 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm
AMGP-05-T12 Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 12.0 L | Net weight: 13 kg | A: 363 mm | B: 386 mm | C: 416 mm | D: 373 mm | E: 234 mm | F: 240 mm | G: 11 x 16 mm | H: 24 mm | J: 160 mm
AMGP-05-T20 Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 20.0 L | Net weight: 17 kg | A: 470 mm | B: 500 mm | C: 520 mm | D: 484 mm | E: 317 mm | F: 322 mm | G: 12 x 17 mm | H: 29 mm | J: 160 mm
Oil Lubrication PumpsAryung
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Aryung AMGP-03/05 3-Phase High-Flow Oil Lubrication Unit (3-20 L Steel Tank)

Brand Aryung·Oil Lubrication Pumps

Available part numbers (8)

AMGP-03-T03, AMGP-03-T06, AMGP-03-T12, AMGP-03-T20, AMGP-05-T03, AMGP-05-T06, AMGP-05-T12, AMGP-05-T20

How to order

Send the Aryung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMGP-03-T03Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 3.0 L | Net weight: 9.6 kg | A: 280 mm | B: 300 mm | C: 320 mm | D: 290 mm | E: 135 mm | F: 150 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm
AMGP-03-T06Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 6.0 L | Net weight: 11 kg | A: 300 mm | B: 320 mm | C: 346 mm | D: 310 mm | E: 195 mm | F: 210 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm
AMGP-03-T12Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 12.0 L | Net weight: 13 kg | A: 363 mm | B: 386 mm | C: 416 mm | D: 373 mm | E: 234 mm | F: 240 mm | G: 11 x 16 mm | H: 24 mm | J: 160 mm
AMGP-03-T20Discharge volume: 250 (50 Hz) / 300 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 20.0 L | Net weight: 17 kg | A: 470 mm | B: 500 mm | C: 520 mm | D: 484 mm | E: 317 mm | F: 322 mm | G: 12 x 17 mm | H: 29 mm | J: 160 mm
AMGP-05-T03Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 3.0 L | Net weight: 9.6 kg | A: 280 mm | B: 300 mm | C: 320 mm | D: 290 mm | E: 135 mm | F: 150 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm
AMGP-05-T06Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 6.0 L | Net weight: 11 kg | A: 300 mm | B: 320 mm | C: 346 mm | D: 310 mm | E: 195 mm | F: 210 mm | G: 9.5 x 14.5 mm | H: 24 mm | J: 160 mm
AMGP-05-T12Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 12.0 L | Net weight: 13 kg | A: 363 mm | B: 386 mm | C: 416 mm | D: 373 mm | E: 234 mm | F: 240 mm | G: 11 x 16 mm | H: 24 mm | J: 160 mm
AMGP-05-T20Discharge volume: 420 (50 Hz) / 500 (60 Hz) cc/min | Working pressure: 2.0 MPa | Pressure range: 0.8 ~ 2.5 MPa | Viscosity: 30 ~ 1000 cSt | Outlet: PT 1/8" (Ø6) | Motor: 3-phase 4-pole 50 W | Rated voltage / current 50 Hz: 200/380/415 V, 0.54/0.31/0.27 A | Rated voltage / current 60 Hz: 200/380/440 V, 0.6/0.35/0.3 A | Tank: 20.0 L | Net weight: 17 kg | A: 470 mm | B: 500 mm | C: 520 mm | D: 484 mm | E: 317 mm | F: 322 mm | G: 12 x 17 mm | H: 29 mm | J: 160 mm
